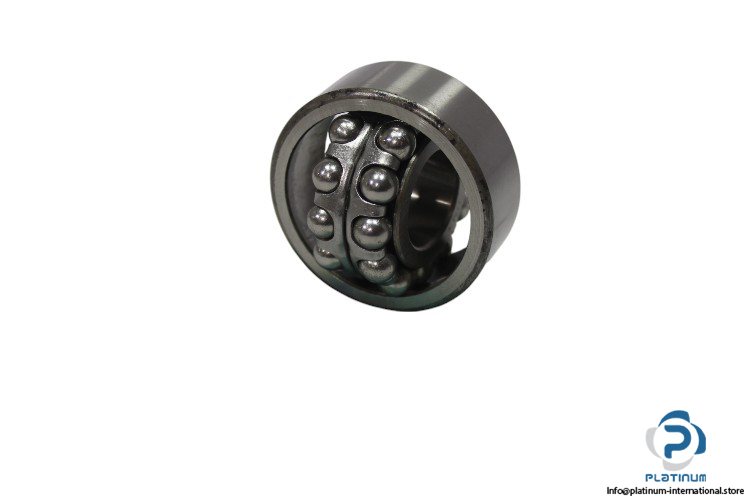

Steyr 2305K Self-Aligning Ball Bearing
The Steyr 2305K Self-Aligning Ball Bearing is designed to accommodate misalignment and shaft deflection, making it ideal for applications where shaft bending or mounting inaccuracies are present. Featuring a tapered bore (1:12) and high-speed capability with both grease and oil lubrication, it ensures efficient, smooth operation under dynamic and static loads.
Manufacturer: Steyr
Type: Self-Aligning Ball Bearing
Model: 2305K
Technical Information:
- Bore Diameter (d): 25 mm
- Outer Diameter (D): 62 mm
- Width (B): 24 mm
- Dynamic Load Rating (Cr): 26.6 kN
- Static Load Rating (C0r): 7 kN
- Limiting Speed with Grease: 16600 rpm
- Limiting Speed with Oil: 21400 rpm
- Bore Type: K, Tapered 1:12
