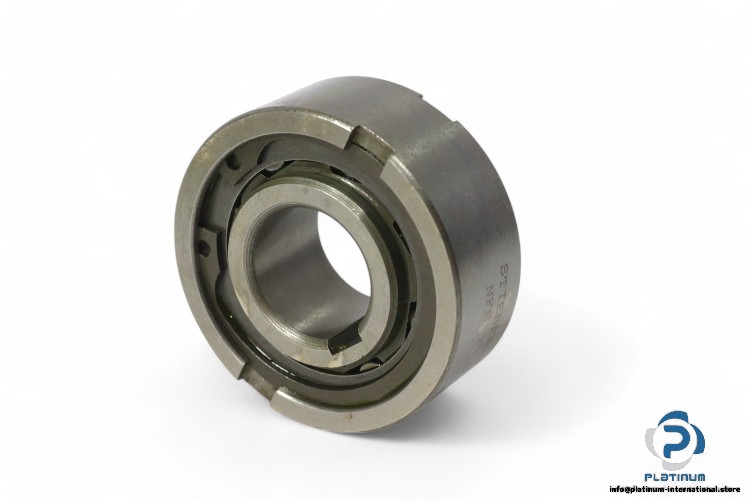

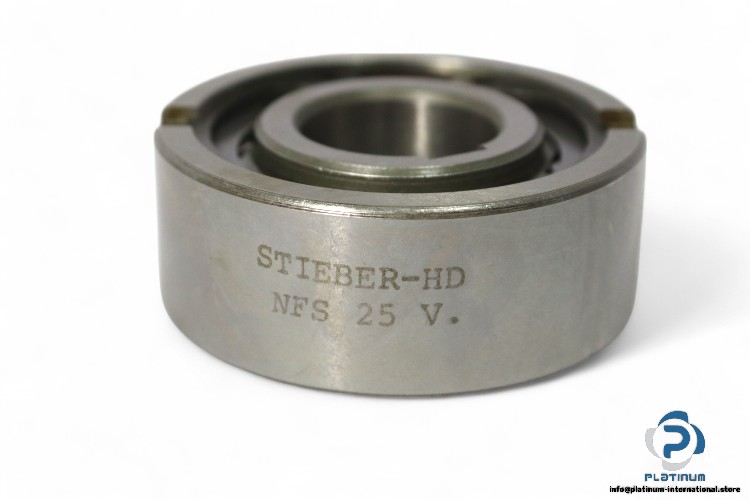

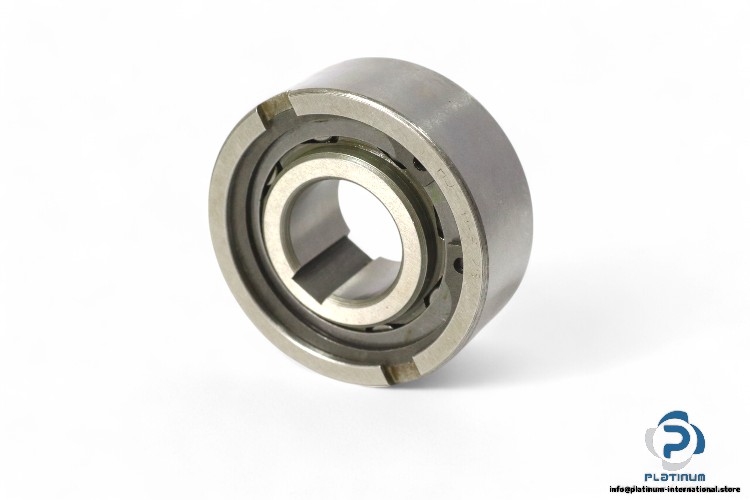

Freewheel Clutch Bearing (Model: NFS25V ASNU 25)
Manufacturer: Stieber
Type: Freewheel Clutch Bearing
Model: NFS25V (ASNU 25)
The Stieber Freewheel Clutch Bearing (Model: NFS25V ASNU 25) is designed for applications that require one-directional torque transmission and can protect machinery from overrunning. This high-quality bearing provides reliable performance with its precise dimensions and high overrunning speed tolerance.
- Manufacturer: Stieber
- Type: Freewheel Clutch Bearing
- Model: NFS25V (ASNU 25)

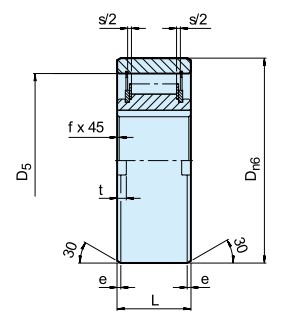

- Bore Diameter (d): 25 mm
- Outer diameter (Dn6): 62 mm
- Width (L): 24 mm
- D5: 51 mm
- b: 8 mm
- t: 2.8 mm
- Drag Torque: 5.6 Ncm
- Maximum Overrunning Speed:
- Inner Race: 1700 rpm
- Outer Race: 2600 rpm
