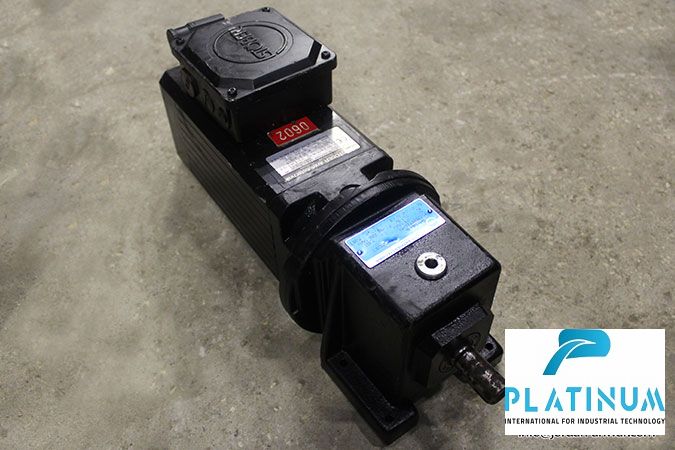

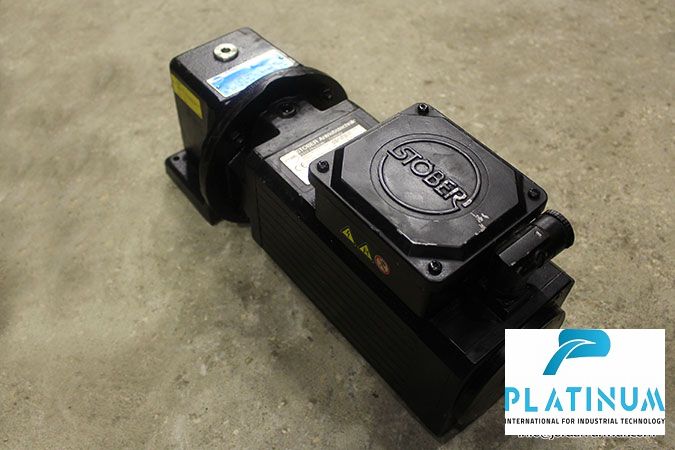

Stober Antriebstechnik ES52 3220607/000/000-010 Servo Motor
The Stober Antriebstechnik ES52 3220607/000/000-010 Servo Motor offers high precision and powerful performance for demanding industrial automation applications. With a rated speed of 3000 rpm and a stall torque of 6.9 Nm, it is designed to deliver reliable operation under various load conditions. Integrated with a high-performance gear unit, this servo motor provides efficient power transfer and durability in challenging environments.
Manufacturer: Stober Antriebstechnik
Type: Servo Motor
Model: ES52 3220607/000/000-010

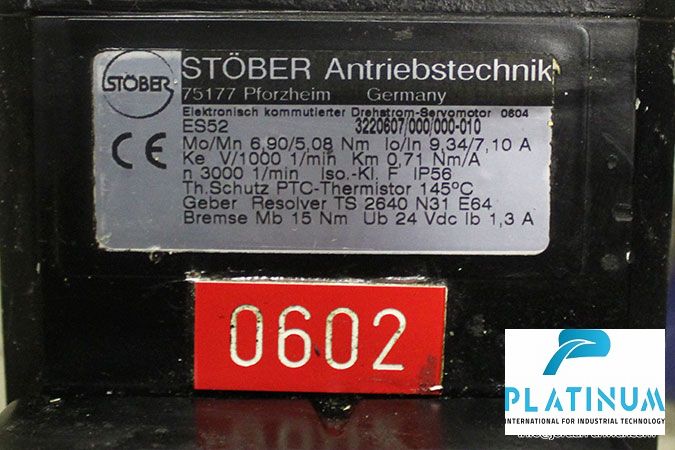

Technical Data:
- Rated Speed: 3000 rpm
- Rated Current: 7.10 A
- Stall Current: 9.34 A
- Constant Current: 0.71 Nm/A
- Thermal Protection: 145°C
- Rated Torque: 5.08 Nm
- Stall Torque: 6.9 Nm
- Degree of Protection: IP56
- Power Factor: 0.75
- Isolation Class: F
- Encoder Resolver: TS 2640 N31 E64
- Brake Torque: 15 Nm
- Brake Voltage: 24 VDC
- Brake Current: 1.3 A

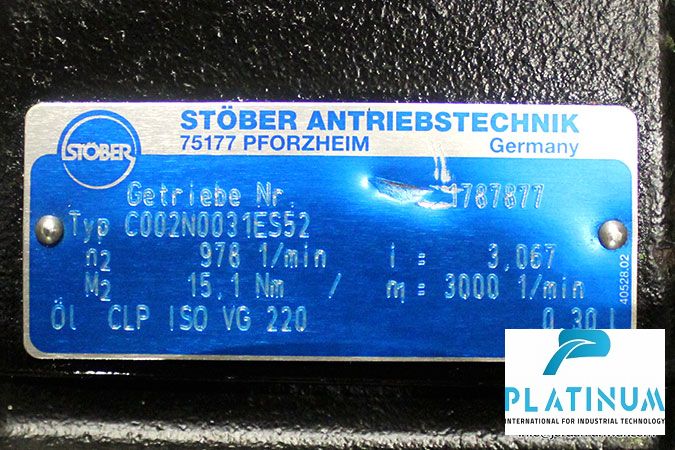

Attached Gear Unit:
- Manufacturer: Stober Antriebstechnik
- Part No.: 1787877
- Gear Unit Ratio: 3.067
- Rated Speed: 978 rpm
- Rated Torque: 15.1 Nm
- Lubrication: CLP ISO VG 200
- Volume: 0.30 L
