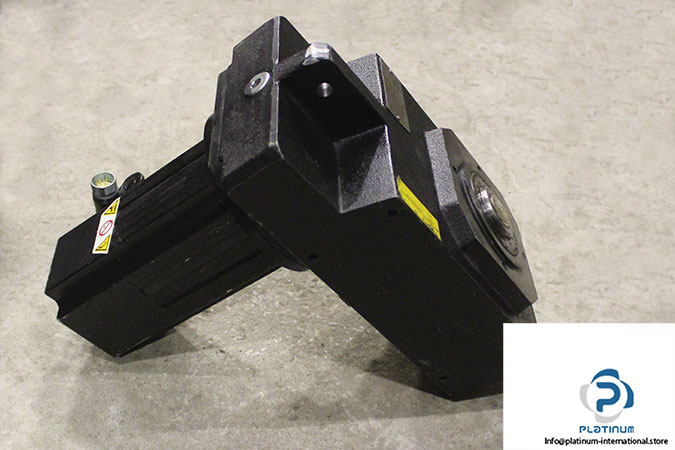

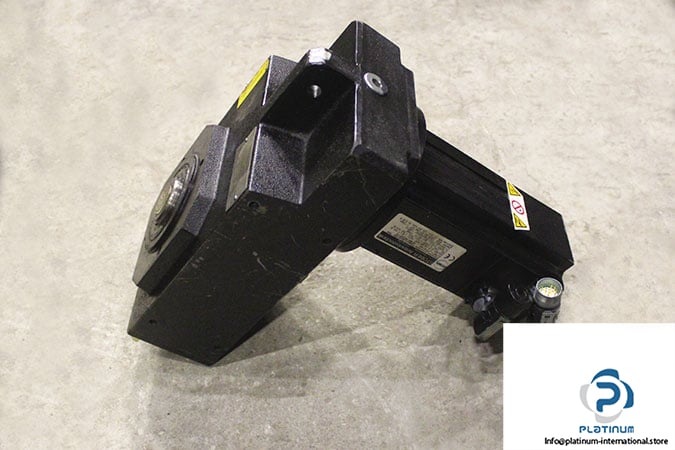

STOBER ED401UDFA140 SERVO MOTOR & F202AGN0470ED401U PARALLEL GEARBOX
The STOBER ED401UDFA140 Servo Motor and F202AGN0470ED401U Parallel Gearbox provide exceptional precision and reliability in high-performance industrial applications. The motor delivers rated torque of 2.36 Nm with a nominal speed of 3000 rpm, while the gearbox features a 47.045:1 ratio for efficient power transmission.
Manufacturer: Stober
Type: Servo Motors
Model: ED401UDFA140
ID: 1615641/000/000-110

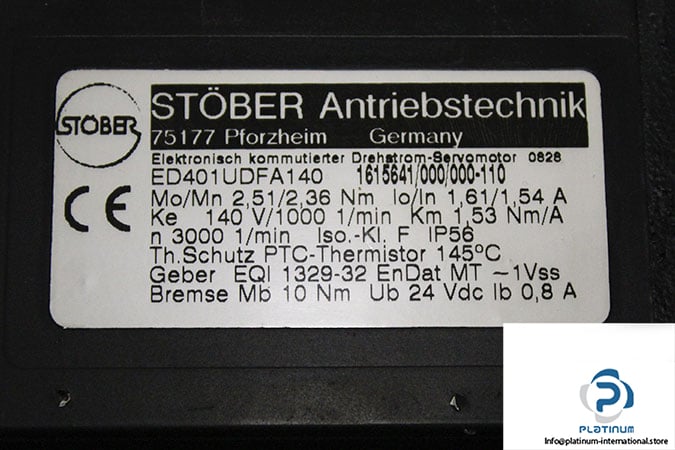

Technical Specifications – Servo Motor
- Rated Torque [Nm]: 2.36
- Stall Torque [Nm]: 2.51
- Rated Current [A]: 1.54
- Stall Current [A]: 1.61
- Constant Voltage [V/1000 min-1]: 140
- Constant Torque [Nm/A]: 1.53
- Nominal Speed [rpm]: 3000
- Brake Voltage [VDC]: 24
- Brake Current [A]: 0.8
- Brake Torque [Nm]: 10
- Insulation Class: F
- Protection Class [IP]: 56

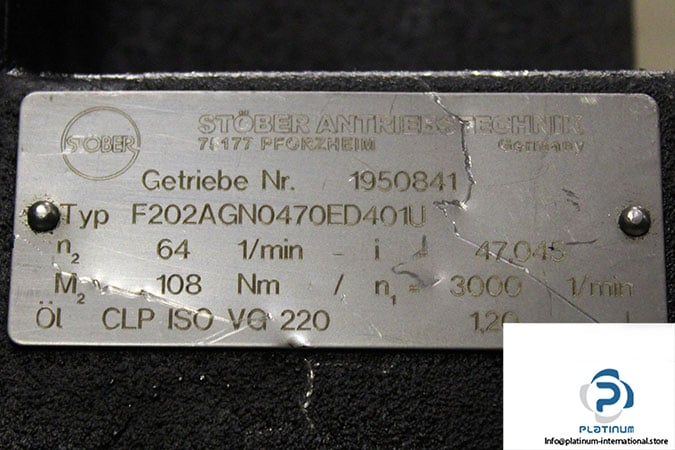

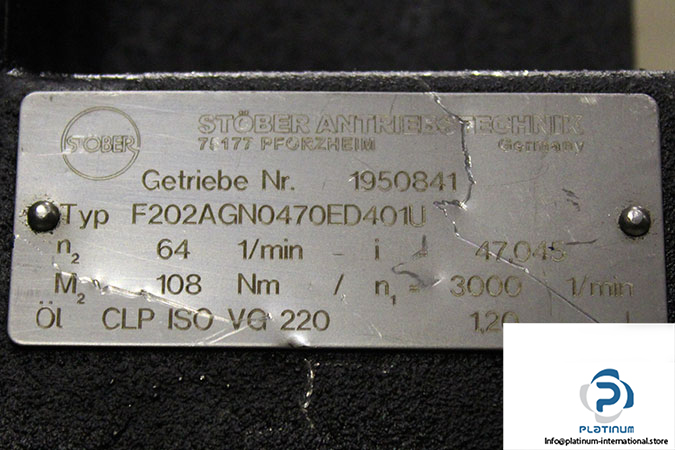

Technical Specifications – Parallel Gearbox
- Ratio [i]: 47.045
- Input Speed [rpm]: 3000
- Output Speed [rpm]: 64
- Rated Torque [Nm]: 108
- Lubrication: CLP ISO VG 220
- Volume Lubrication [L]: 1.2
