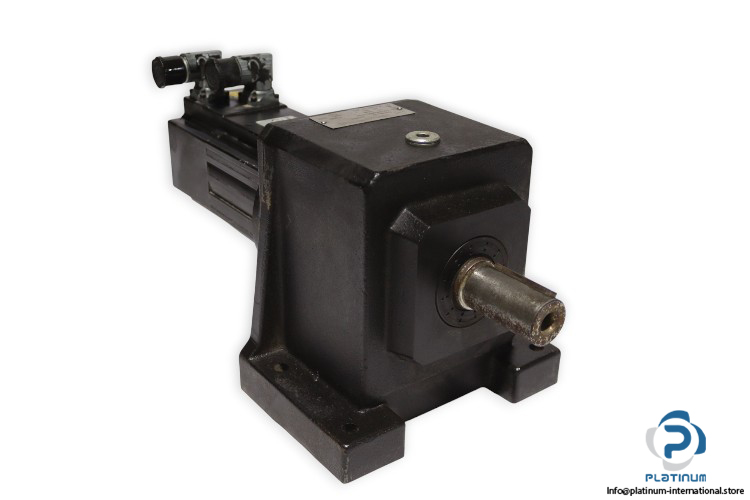

Stober ED401USFM140 AC Servo Gearmotor with C202N0410ED401U Gear Unit

The Stober ED401USFM140 AC servo gearmotor is designed for high precision, performance, and reliability in industrial motion control systems. With integrated C202N0410ED401U gear unit, it delivers excellent torque output, efficiency, and long-lasting operation under demanding conditions.

Manufacturer: Stober
Type: AC Servo Gearmotor
Model: ED401USFM140
Attachment: Stober C202N0410ED401U Gear Unit

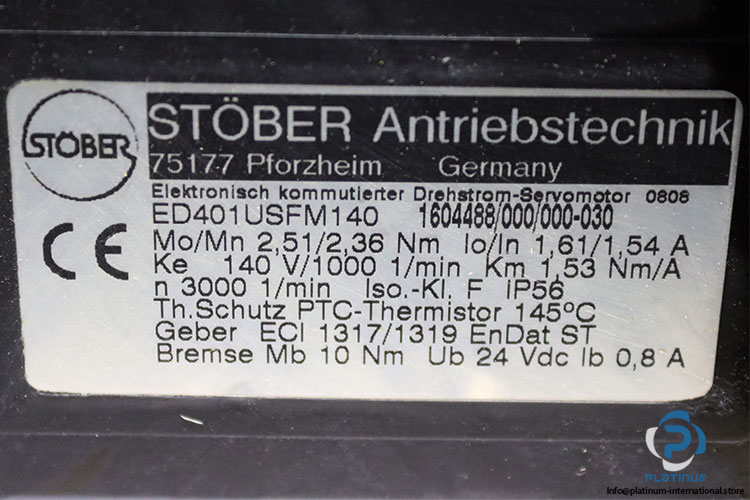

Technical information (Motor)

• Stall Torque: 2.51 Nm
• Rated Torque: 2.36 Nm
• Stall Current: 1.61 A
• Rated Current: 1.54 A
• Rated Speed: 3000 rpm
• Constant Voltage: 140 V/1000
• Constant Torque: 1.53 Nm/A
• Brake Voltage: 24 VDC
• Brake Torque: 10 Nm
• Brake Current: 0.8 A

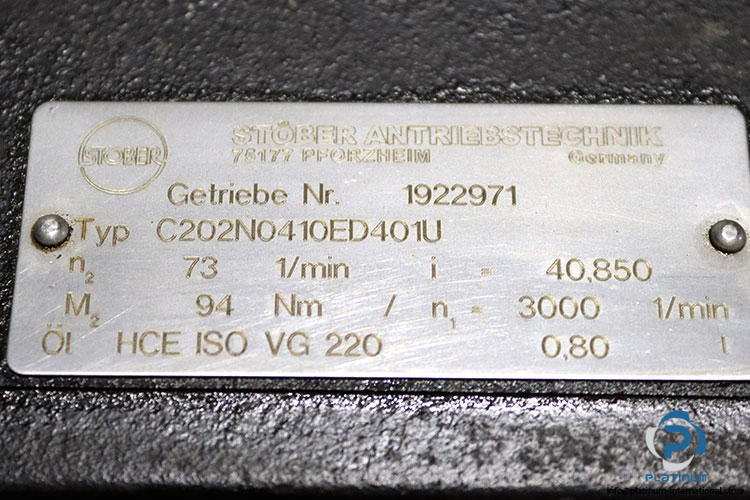

Technical information (Gear Unit)

• Manufacturer: Stober
• Type: Gear Unit
• Model: C202N0410ED401U
• Ratio: 40.85
• Input Speed: 3000 rpm
• Output Speed: 73 rpm
• Output Torque: 94 Nm
• Lubrication: HCE ISO VG 220
• Oil Quantity: 0.8 L
• Rated Temperature: 145 °C
• Protection Class: IP56
• Thermal Class: F
