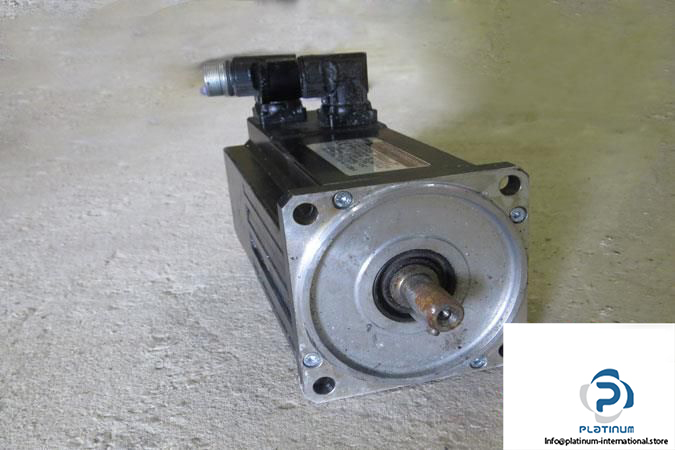

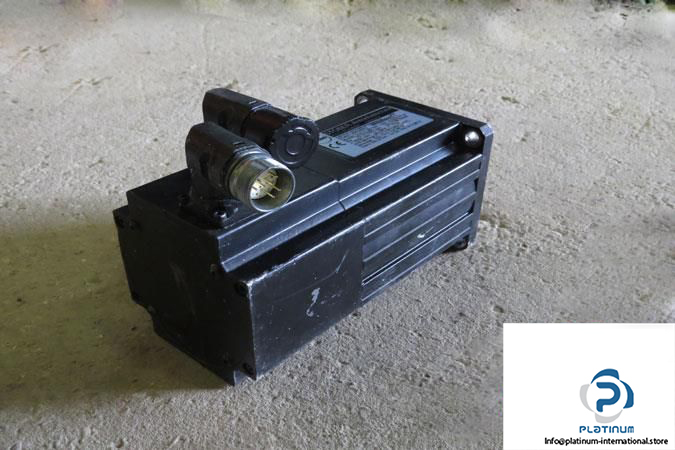

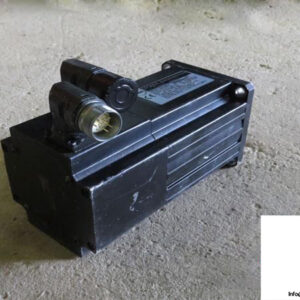

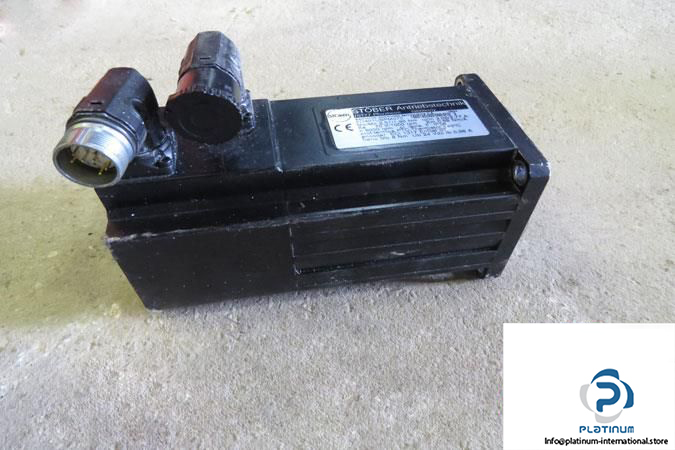

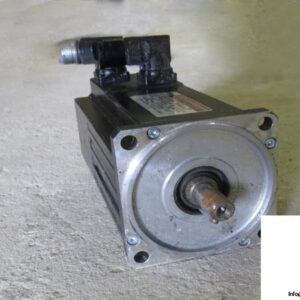

STOBER ED401USPM070 SERVO MOTOR

The STOBER ED401USPM070 is a high-performance servo motor built for precision, durability, and advanced automation tasks. Equipped with an integrated encoder and robust mechanical design, this motor ensures reliable operation in demanding industrial environments.

Manufacturer: STOBER
Type: Servo Motor
Model: ED401USPM070
MRN: 1565160/000/000-010/2

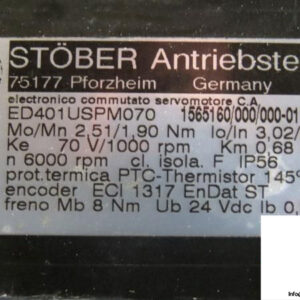

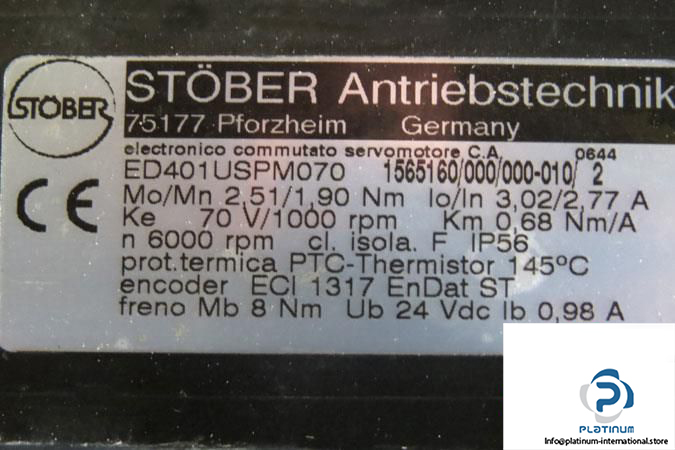

Technical Information

• Included Encoder: ECI 1317, 8 Nm, 24 V DC, 0.98 A
• Voltage Constant: 70 V / 1000 rpm
• Torque Constant: 0.68 Nm/A
• Speed: 6000 rpm
• Stall Torque: 2.51 Nm
• Nominal Torque: 1.90 Nm
• Permissible Permanent Current: 2.77 A
• Current at Stall Torque: 3.02 A
• Moment of Inertia: 1.47 Kg·cm²
• Thermal Class: F 145°C
• Protection: IP56
