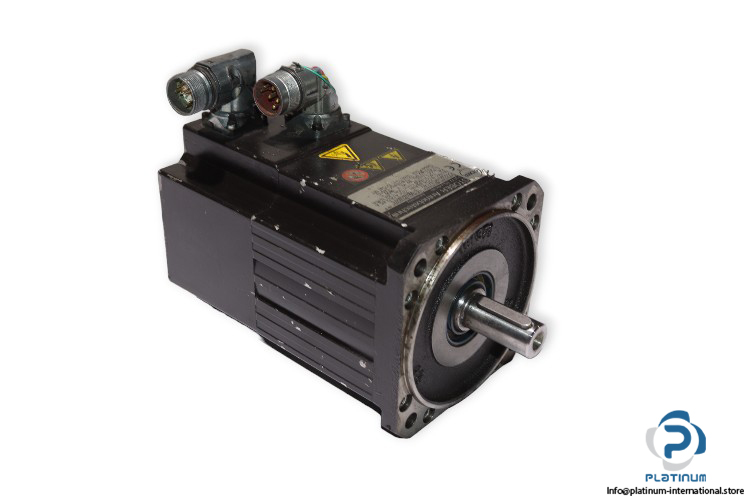

STOBER EK502UMOM140 SERVOMOTOR

The STOBER EK502UMOM140 Servomotor is a high-performance motor designed for industrial automation and control systems. It provides exceptional torque and speed control, with precise specifications such as a rated torque of 5.88 Nm and stall torque of 6.53 Nm. This motor also features a robust IP56 protection class and insulation class F for reliable operation in demanding environments.

Manufacturer: STOBER

Type: SERVOMOTOR

Model: EK502UMOM140

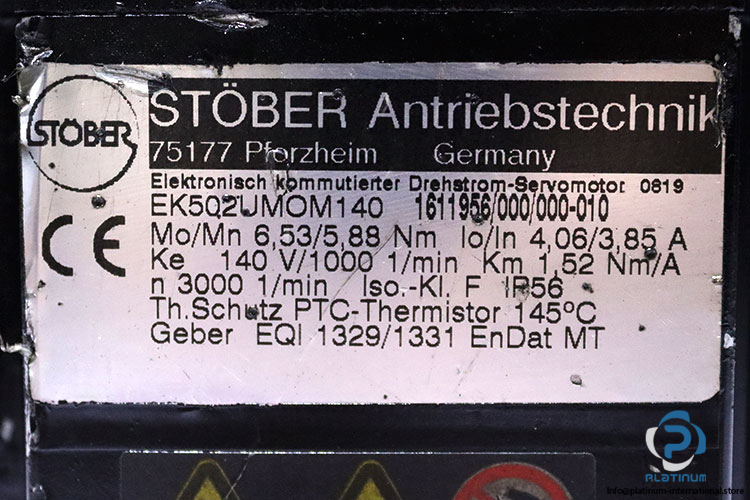

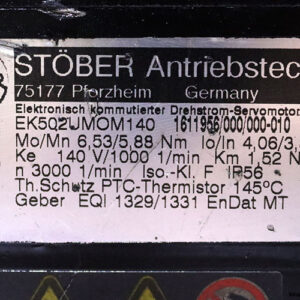

Part No.: 1611956/000/000-010

Technical Specifications

• Stall Torque [Nm]: 6.53
• Rated Torque [Nm]: 5.88
• Rated Current [A]: 3.85
• Stall Current [A]: 4.06
• Rated Speed [rpm]: 3000
• Constant Voltage [V/1000min-1]: 140
• Constant Torque [Nm/A]: 1.52
• Protection Class [IP]: 56
• Insulation Class: F
• Attached with: EQI 1329/1331 EnDat MT ENCODER
