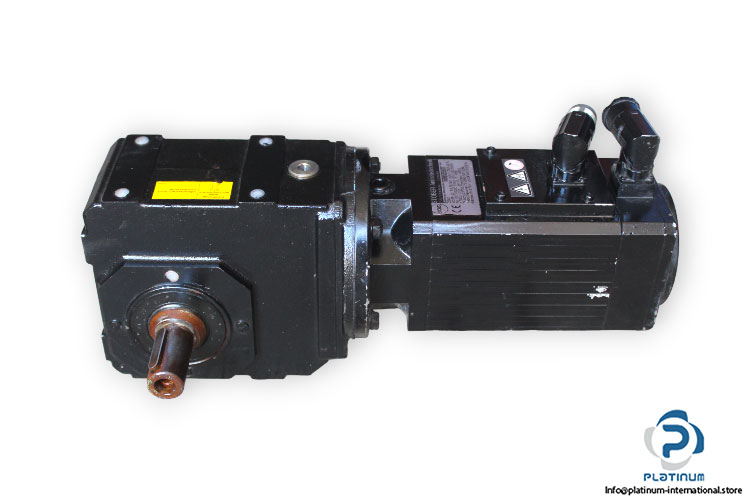

Stober ES42 AC Servo Gearmotor with K102VG0200ES42 Gear Unit

The Stober ES42 AC servo gearmotor combined with the K102VG0200ES42 gear unit delivers high precision, efficiency, and durability for industrial automation systems. With excellent torque capacity, reliable braking performance, and robust gearing, this solution ensures smooth and powerful motion control in demanding applications.

Manufacturer: Stober
Type: AC Servo Gearmotor
Model: ES42

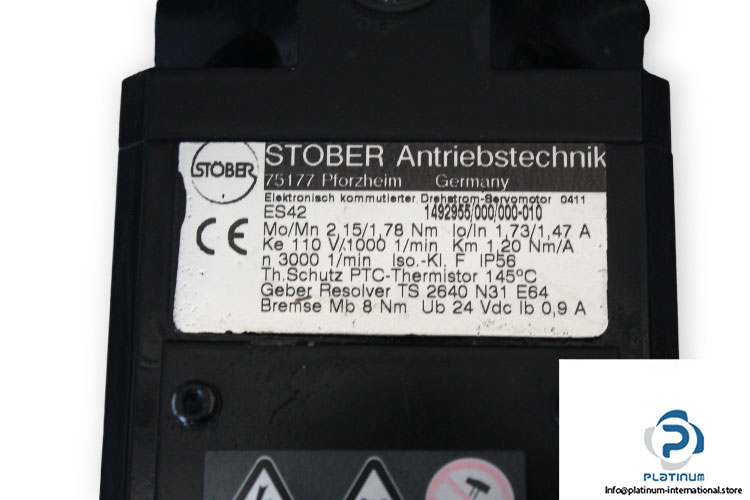

Technical information “ Motor

• Stall Torque: 2.15 Nm
• Rated Torque: 1.78 Nm
• Stall Current: 1.73 A
• Rated Current: 1.47 A
• Rated Speed: 3000 rpm
• Constant Voltage: 110 V/1000
• Constant Torque: 1.2 Nm/A
• Brake Voltage: 24 VDC
• Brake Torque: 8 Nm
• Brake Current: 0.9 A

Attachment: Stober K102VG0200ES42 Gear Unit

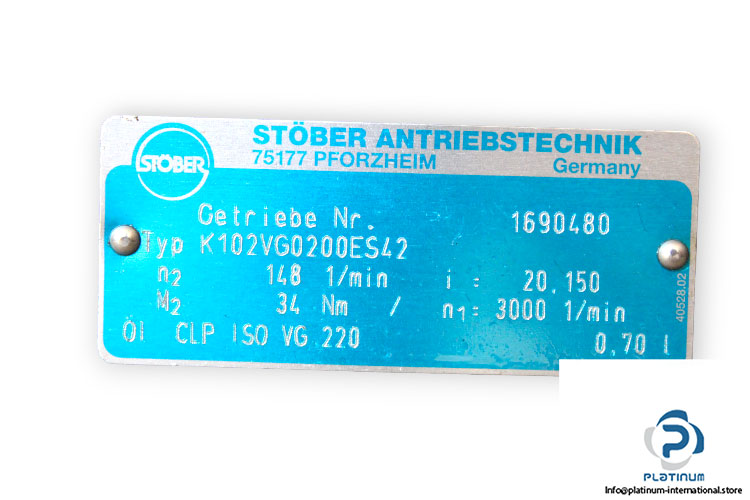

Technical information “ Gear Unit

• Model: K102VG0200ES42
• Ratio: 20.15
• Input Speed: 3000 rpm
• Output Speed: 148 rpm
• Output Torque: 34 Nm
• Lubrication: CLP ISO VG 220
• Oil Quantity: 0.7 L
• Rated Temperature: 145 °C
• Protection Class: IP56
• Thermal Class: F
