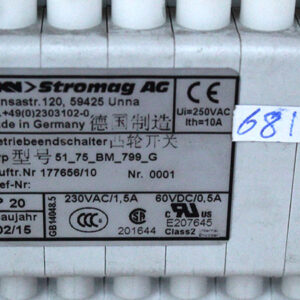

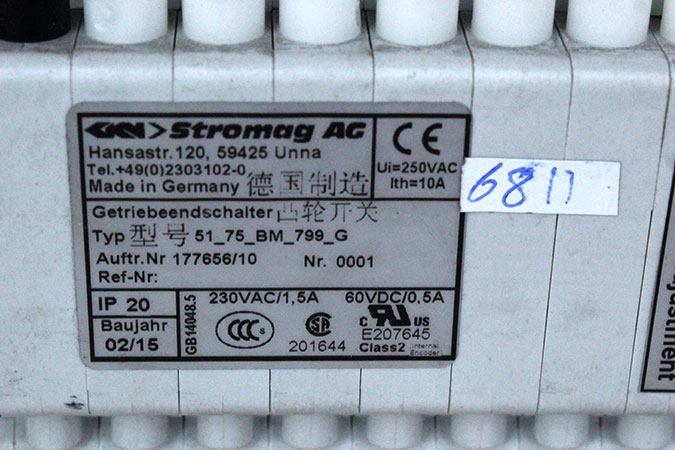

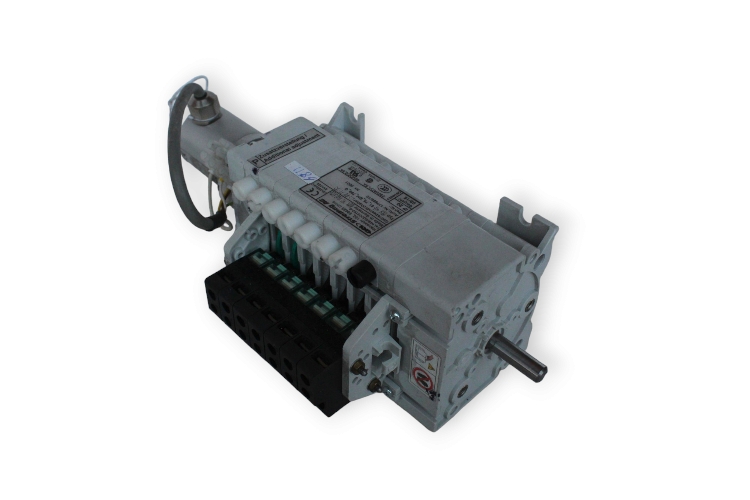

Stromag AG 5175BM799G Gear Cam Limit Switch

The Stromag AG 5175BM799G Gear Cam Limit Switch is a precision-engineered switching device designed for industrial automation and motion control applications. Featuring robust aluminum housing and compatibility with the IBS-HUHNE STM36-345 Angle Sensor, this limit switch ensures accurate and reliable performance in demanding environments.

• Manufacturer: Stromag AG
• Type: Gear Cam Limit Switch
• Model: 5175BM799G
• Ref. No.: 177656/10 0001

Technical Information

• Rated Operational Voltage: 230 V AC / 60 V DC
• Rated Operational Current: 1.5 A (AC) / 0.5 A (DC)
• Rated Insulation Voltage (Ui): 250 V AC
• Rated Thermal Current (Ith): 10 A
• Protection Class: IP20
• Nominal Revolution: 4.1 to 16,000
• Housing Material: Aluminum

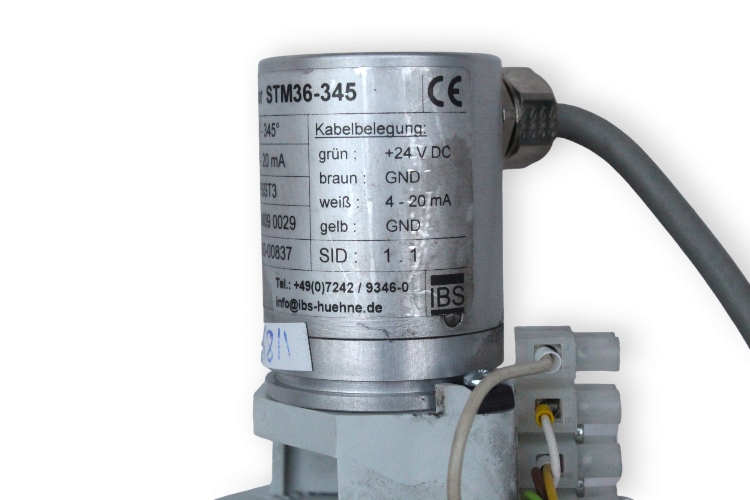

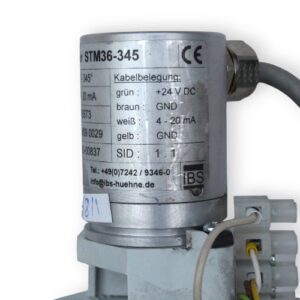

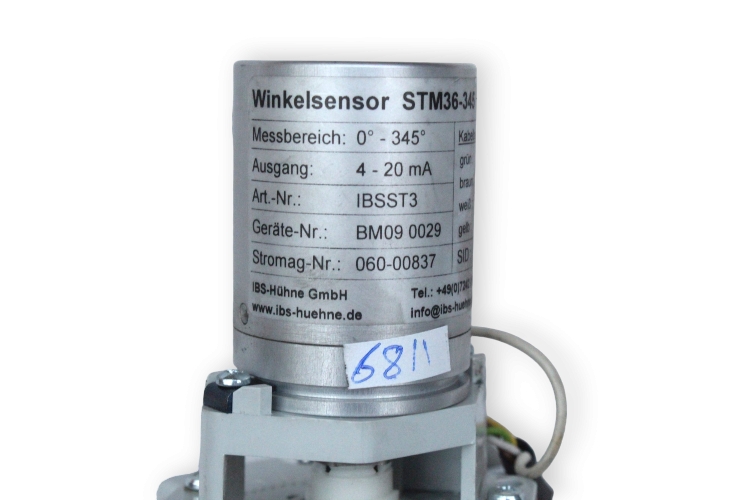

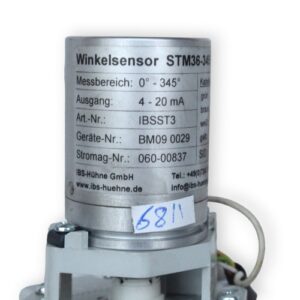

Attachment

• Manufacturer: IBS-Huhne
• Type: Angle Sensor
• Model: STM36-345
• ART. No.: IBSST3
• Part No.: BM09 0029
• Measuring Range: 345°
• Output Signal: 4 to 20 mA
• Supply Voltage: 24 V DC

Designed for high-precision positioning and automation control, the Stromag AG 5175BM799G offers superior performance in industrial motion systems.
