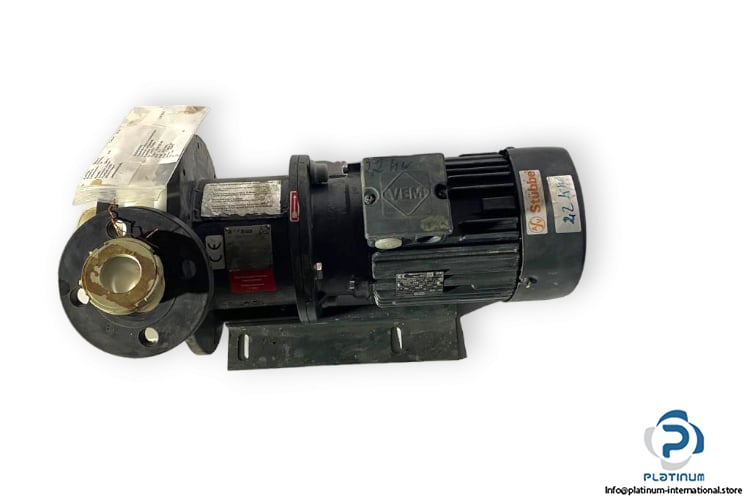

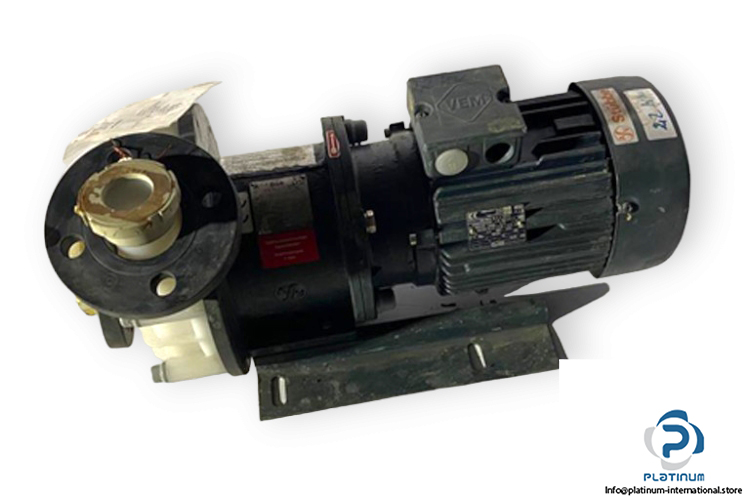

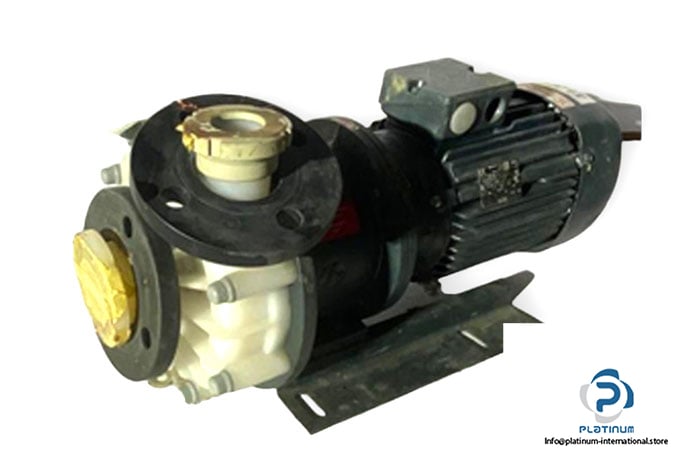

Stübbe SHM50-40 Magnetic Coupled Centrifugal Pump

The Stübbe SHM50-40 is a durable magnetic coupled centrifugal pump engineered for the safe handling of corrosive and aggressive liquids. Constructed with PVDF-FPM materials, it provides outstanding chemical resistance and leak-free performance, ideal for chemical processing, fluid transfer, and water treatment systems.

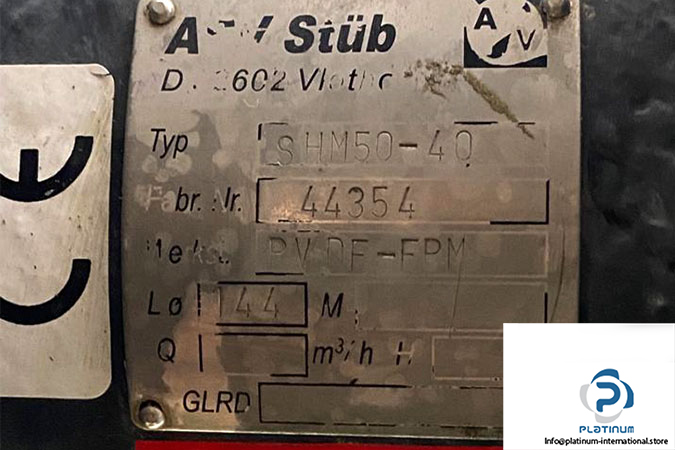

Manufacturer: Stübbe
Type: Magnetic Coupled Centrifugal Pump
Model: SHM50-40
ID. No.: 44354
M. No.: PVDF-FPM

Technical Information

Flow Rate: up to 65 m³/h
Max. Operating Temperature: 80 °C
Fluid Viscosity Max.: 160 mPas (cP)
Fluid Density: 1.9 kg/dm³

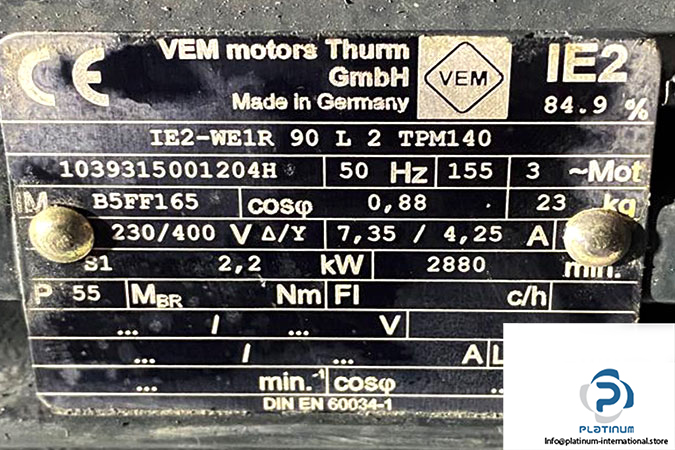

Motor Attachment

Attachment: VEM IE2-WE1R 90 L 2 TPM140 Motor
Manufacturer: VEM
Type: Motor
Model: IE2-WE1R 90 L 2 TPM140
Part No.: 1039315001204H

Motor Technical Information

Motor Voltage [V] @ 50 Hz: 230/400 Delta/Star
Current [A]: 7.35/4.25
Rated Power [kW]: 2.2
Rated Speed [RPM]: 2880
Protection Class: IP55
