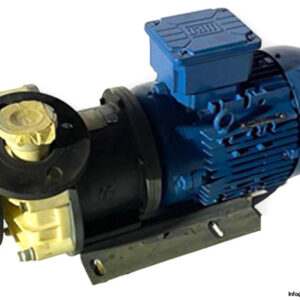

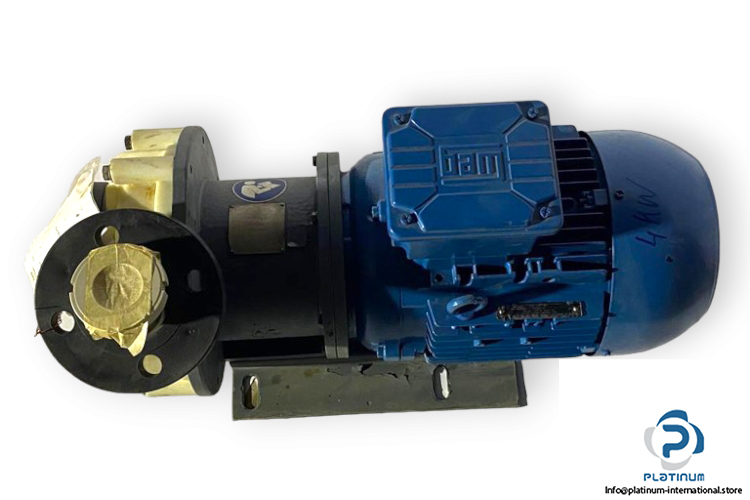

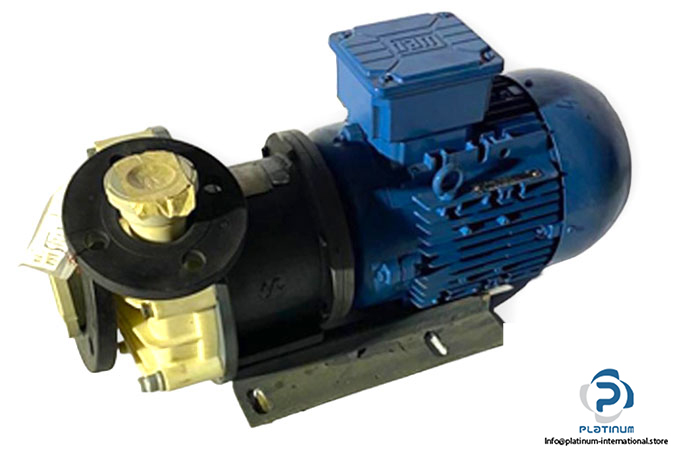

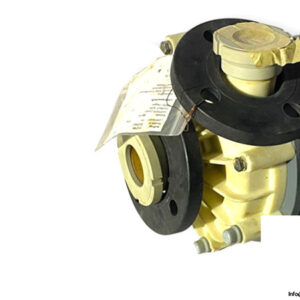

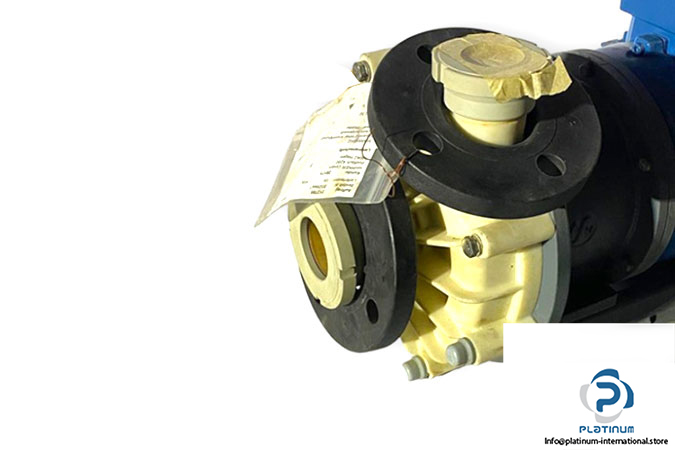

Stübbe SHM50-40 Magnetic Coupled Centrifugal Pump

The Stübbe SHM50-40 is a high-efficiency magnetic coupled centrifugal pump engineered for chemical and industrial fluid applications. Constructed with PP-FPN materials, it provides outstanding chemical resistance, durability, and leak-free operation. Designed for continuous service, it offers reliable performance in demanding environments such as chemical processing, water treatment, and fluid transfer systems.

Manufacturer: Stübbe
Type: Magnetic Coupled Centrifugal Pump

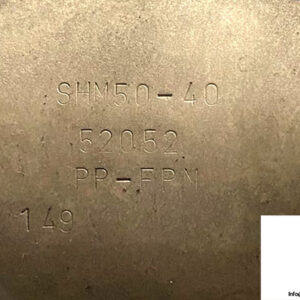

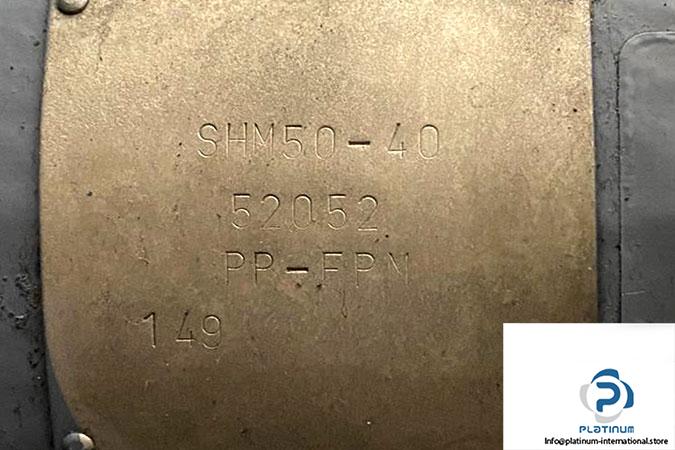

Model: SHM50-40
ID. No.: 52052
M. No.: PP-FPN

Technical Information

Flow Rate: up to 65 m³/h
Max. Operating Temperature: 80 °C
Fluid Viscosity Max.: 160 mPas (cP)
Fluid Density: 1.9 kg/dm³

Motor Attachment

Attachment: WEG AL112M/02 Motor
Manufacturer: WEG
Type: Motor
Model: AL112M/02
Part No.: 13760708
ID. No.: 1035829348

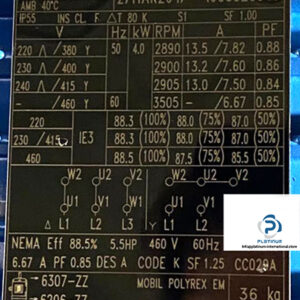

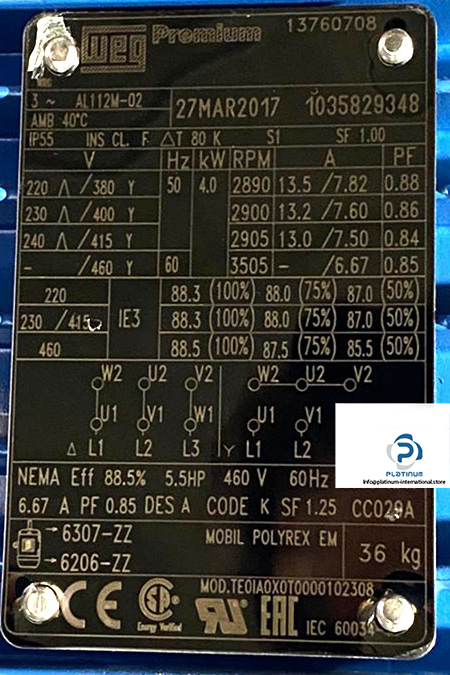

Motor Technical Information

Motor Voltage [V] @ 50 Hz: 220/380 // 230/400 // 240/415 Delta/Star
Current [A]: 13.5/7.82 // 13.2/7.6 // 13.0/7.5
Rated Power [kW]: 4
Rated Speed [RPM]: 2890/2900
Motor Voltage [V] @ 60 Hz: 460 Star
Current [A]: 6.67
Rated Power [kW]: 4
Rated Speed [RPM]: 3505
Protection Class: IP55
