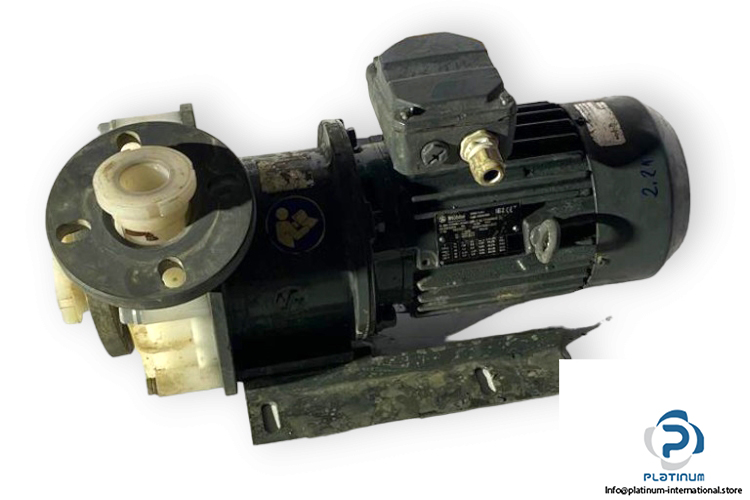

Stübbe SHM50-40L Magnetic Coupled Centrifugal Pump

The Stübbe SHM50-40L is a durable and efficient magnetic coupled centrifugal pump engineered for precise and leak-free handling of corrosive and aggressive liquids. Constructed from PVDF-FPM materials, it offers superior chemical resistance, high reliability, and long service life for industrial and chemical applications such as process engineering, water treatment, and chemical transfer systems.

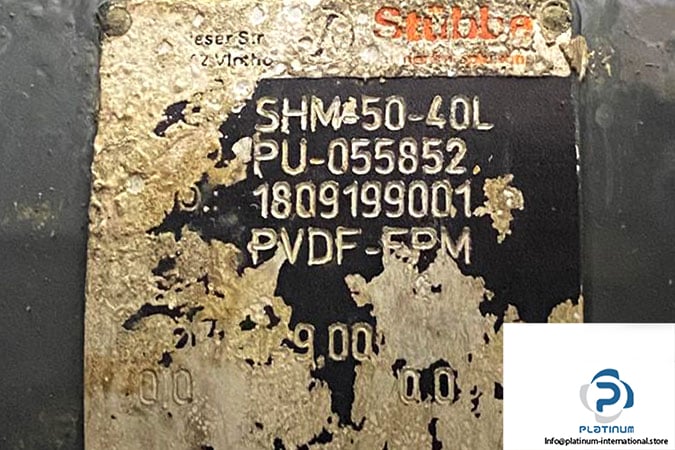

Manufacturer: Stübbe
Type: Magnetic Coupled Centrifugal Pump
Model: SHM50-40L
ID. No.: PU-055852
M. No.: PVDF-FPM
Part No.: 1809199001

Technical Information

Flow Rate: up to 65 m³/h
Max. Operating Temperature: 80 °C
Fluid Viscosity Max.: 160 mPas (cP)
Fluid Density: 1.9 kg/dm³

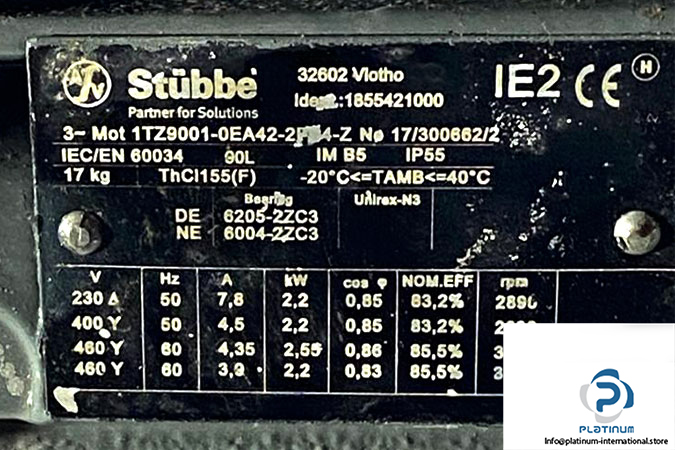

Motor Attachment

Attachment: Stübbe 1TZ9001-0EA42-2FB4-Z Motor
Manufacturer: Stübbe
Type: Motor
Model: 1TZ9001-0EA42-2FB4-Z
Part No.: 17/300662/2
ID. No.: 1855421000

Motor Technical Information

Motor Voltage [V] @ 50 Hz: 230 / 400 Delta / Star
Current [A]: 7.3 / 4.2
Rated Power [kW]: 2.2
Rated Speed [RPM]: 2890
Motor Voltage [V] @ 60 Hz: 460 Star
Current [A]: 4.35 / 3.2
Rated Power [kW]: 2.55 / 2.2
Rated Speed [RPM]: 3485 / 3510
Protection Class: IP55
