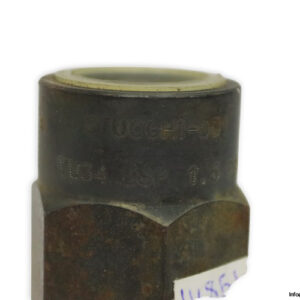

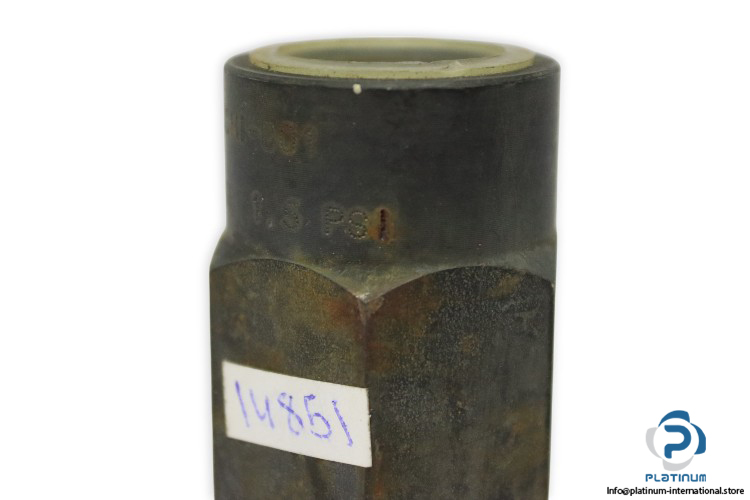

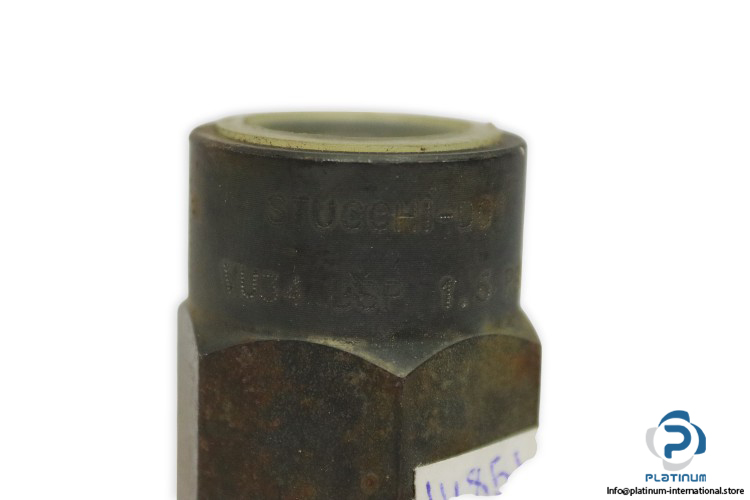

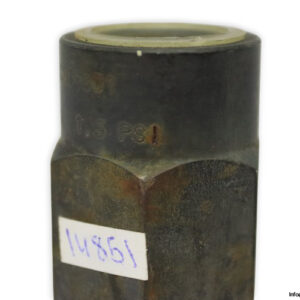

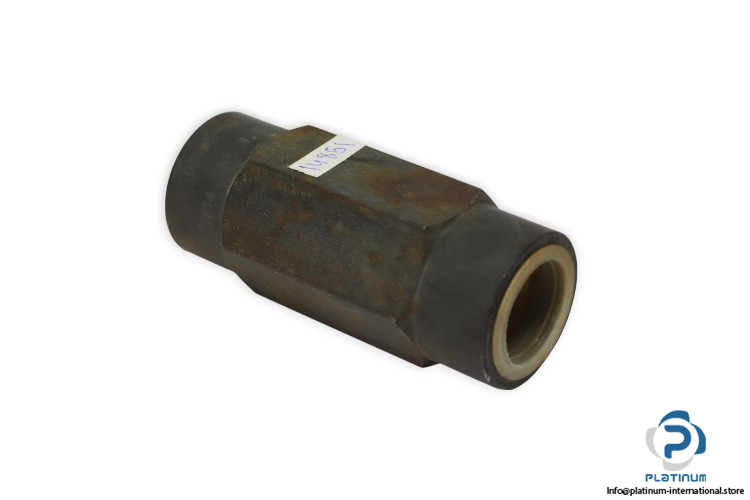

STUCCHI VU34 BSP 1.5 PSI CHECK VALVE

stucchi-VU34-BSP-1.5-PSI-check-valve-(used)
stucchi-VU34-BSP-1.5-PSI-check-valve-(used)-1
stucchi-VU34-BSP-1.5-PSI-check-valve-(used)-2
stucchi-VU34-BSP-1.5-PSI-check-valve-(used)
stucchi-VU34-BSP-1.5-PSI-check-valve-(used)-1
stucchi-VU34-BSP-1.5-PSI-check-valve-(used)-2
Used
Manufacturer: Stucchi

STUCCHI VU34 BSP 1.5 PSI CHECK VALVE

CHECK VALVE

Heavy-duty hydraulic check valve with 1.5¯psi cracking pressure and 300¯bar operating capacity. Designed for leak-proof flow control under pressure with metal-to-metal sealing.

SKU: 1081458 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

STUCCHI VU 34 BSP 1.5 PSI CHECK VALVE

Industrial-grade check valve engineered for high-pressure hydraulic and pneumatic systems. Designed with precision sealing and durable construction for reliable unidirectional flow control in demanding environments.

  • Manufacturer: Stucchi
  • Type: Check Valve
  • Model: VU 34 BSP 1.5 PSI
  • Code: D01

Technical Information

  • Thread Type: BSP Female
  • Cracking Pressure: 1.5¯psi
  • Material: Carbon steel body with steel piston (C72 spring), black phosphate finish
  • Seal: Metal‘to‘metal sealing to prevent extrusion and leakage under load
  • Max Operating Pressure: 300¯bar (4350¯psi)
  • Burst Pressure: 120¯MPa (17400¯psi)
  • Suggested Flow Rate: 148¯L/min (39.2¯GPM)
  • Operating Temperature Range: -20¯°C to +120¯°C
  • Pneumatic Port: G1
Weight0,49 kg
Condition

Type of Product

Shelf No.

Manufacturer

Model
