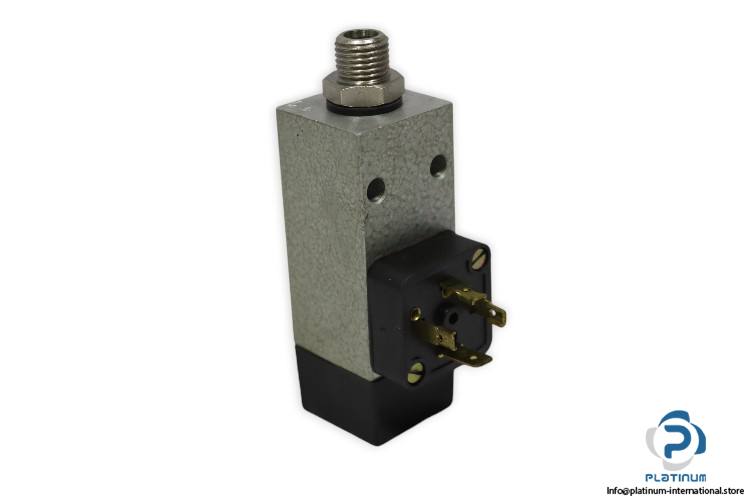

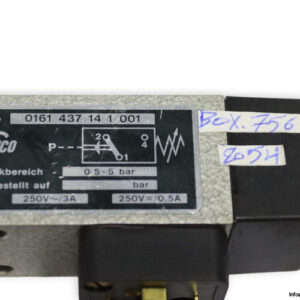

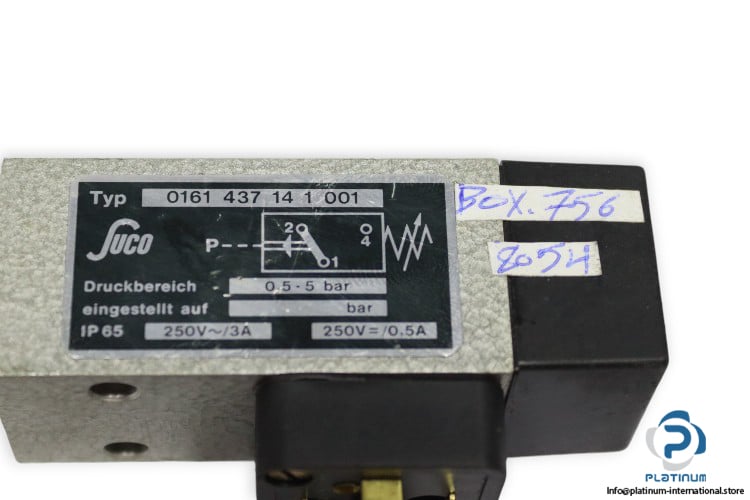

SUCO 0161-437-14-1-001 Diaphragm Pressure Switch
The SUCO 0161437141001 Diaphragm Pressure Switch is a durable and precise pressure control device designed for monitoring and switching applications in hydraulic and pneumatic systems. Built with an aluminum housing and a robust diaphragm design, it ensures accurate operation even under high pressure and temperature variations.
Manufacturer: SUCO
Type: Diaphragm Pressure Switch
Model: 0161 437 14 1 001
Technical Information
- Pressure Adjustment Range: 0.5 / 5 bar
- Max. Pressure: 200 bar
- Contact: 1 Changeover (CO)
- Contact Ratings: 250 V AC/DC, 3/0.5 A
- Connection: G1/4, Threaded
- Material: Case Aluminum
- Electrical Connection: Plug Connection
- Fluid Temperature Range: -40 / 100°C
