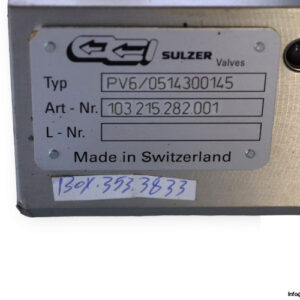

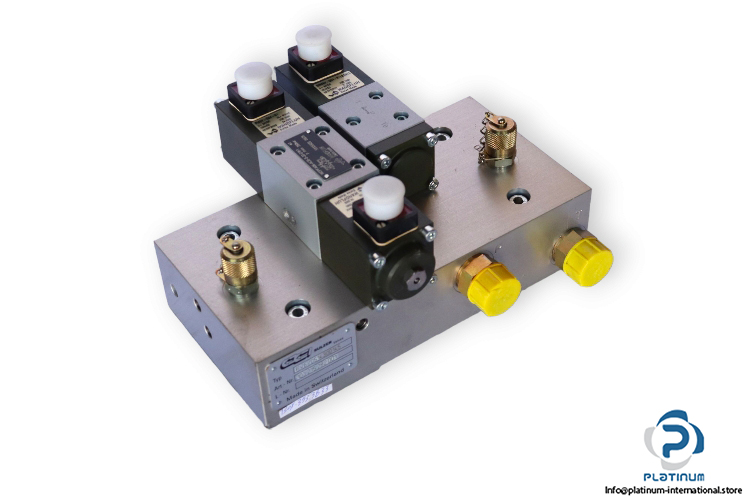

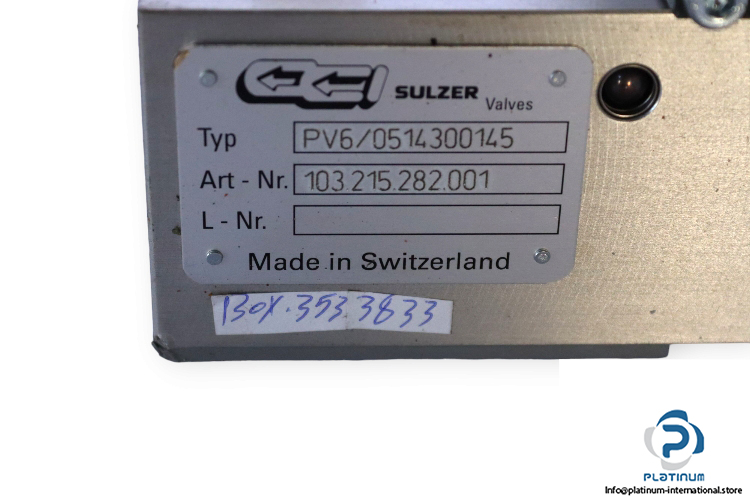

Sulzer PV6/0514300145 Hydraulic Block
The Sulzer PV6/0514300145 Hydraulic Block is a robust and precision-engineered hydraulic assembly designed for high-performance fluid control applications. It integrates high-quality Wandfluh solenoid and proportional valves for efficient flow regulation and system reliability under demanding pressure conditions.
Manufacturer: Sulzer
Type: Hydraulic Block
Model: PV6/0514300145
Art No.: 103.215.282.001
Technical Information “ Hydraulic Block
- Function: Central Hydraulic Control Manifold
- Application: Industrial Hydraulic Systems And Machinery
- Design: Compact, Multi-Port Configuration

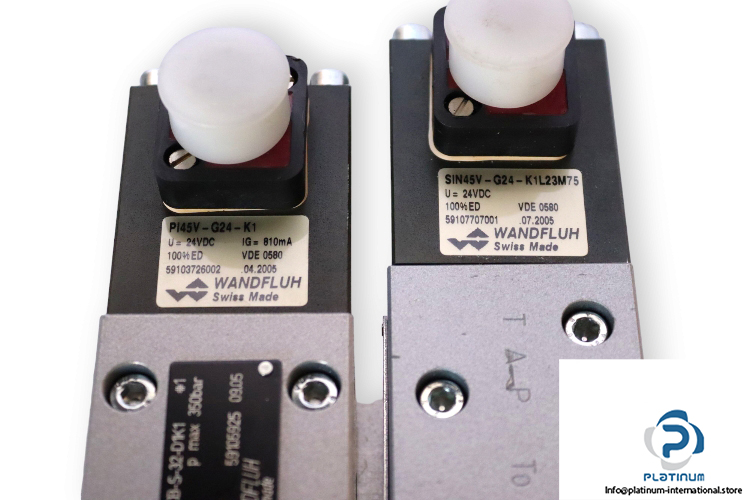

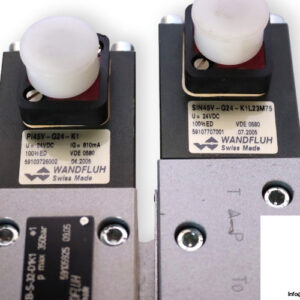

- Attachment: Wandfluh Solenoid And Proportional Valves

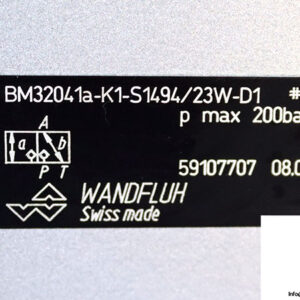

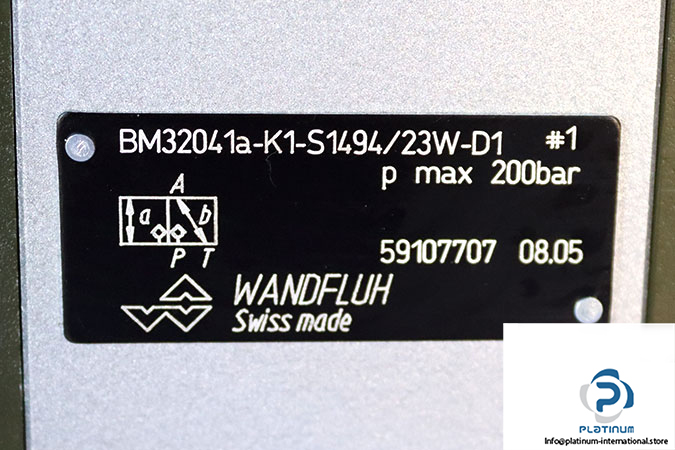

Attachment 1 “ Solenoid Operated Poppet Valve
Manufacturer: Wandfluh
Type: Solenoid Operated Poppet Valve
Model: BM32041A-K1-S1494/23W-D1
Part No.: 59107707
- Size: NG4
- Type of Actuation: Switching Solenoid
- Ambient Temperature Range: “25 / +70 °C
- Maximum Working Pressure Medium: 160 bar
- Maximum Working Pressure Super: 350 bar
- Maximum Working Pressure Input, P: 200 bar
- Maximum Flow Rate: 15 l/min
- Hydraulic Fluid Temperature Range: “25 / +70 °C
- Viscosity Range: 12 / 320 mm²/s
- Connection: Sub-Plate

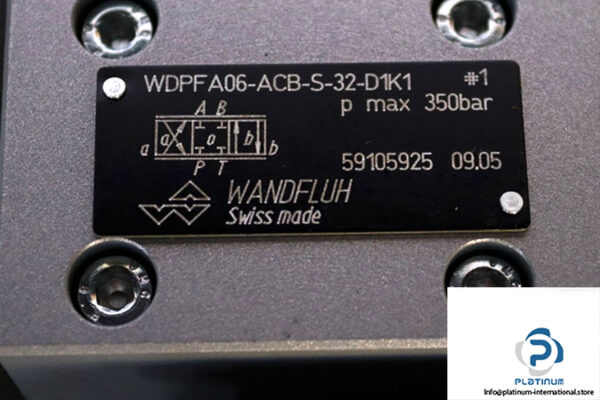

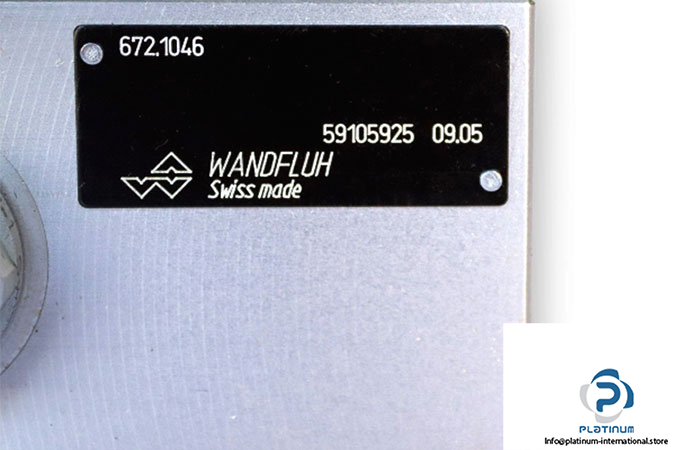

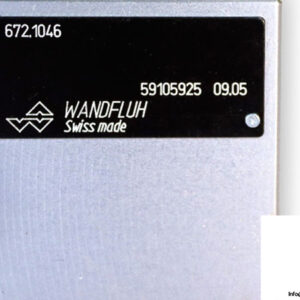

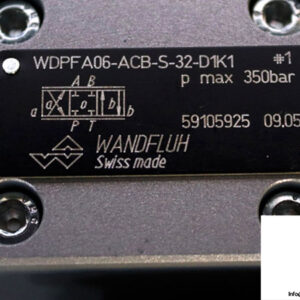

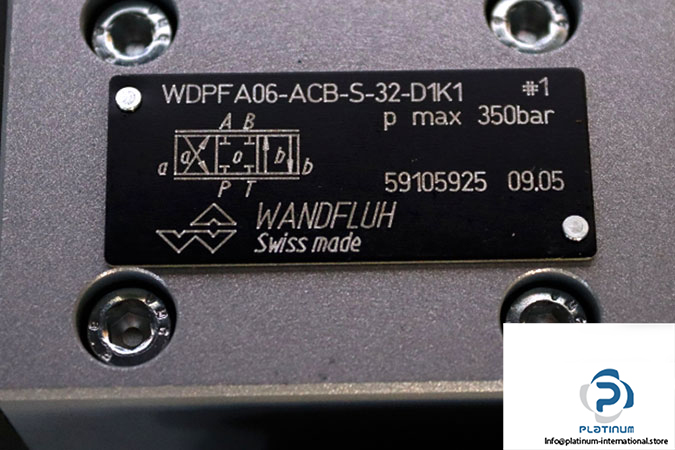

Attachment 2 “ Proportional Directional Control Valve
Manufacturer: Wandfluh
Type: Proportional Directional Control Valve
Model: WDPFA06-ACB-S-32-D1K1
Part No.: 59105925
- Nominal Size: NG6
- Type of Actuation: Electrically
- Max. Working Pressure:
