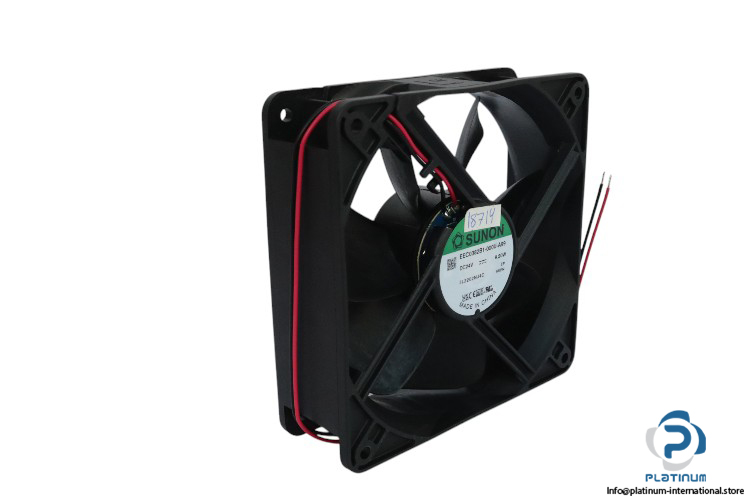

Sunon EEC0382B1000UA99 Axial Fan

The Sunon EEC0382B1000UA99 Axial Fan is a high-performance cooling solution designed for industrial and electronic applications. With a brushless DC motor, ball bearings, and a durable thermoplastic enclosure, this fan delivers efficient airflow while maintaining reliability and low noise levels.

• Manufacturer: Sunon
• Type: Axial Fan
• Model: EEC0382B1000UA99

Technical Information

• Operating Voltage: 24 V DC (10 to 27.6 V DC)
• Power Consumption: 9.2 W
• Current Rating: 0.4 A
• Fan Efficiency: 234.4 m³/h
• Noise Level: 48 dBA
• Kind of Bearing: Ball
• Rotational Speed: 3100 rpm
• Kind of Fan: Axial
• Enclosure Material: Thermoplastic
• Insulation Class: A
• Cable Length: 0.33 m
• Fan Motor: Brushless DC
• Wire Size: 24 AWG
• Operating Temperature: -10 to 70°C
• Dimensions: 120 x 120 x 38 mm
