SUNON KD1209PTB2 AXIAL FAN

Axial Fan

Sunon KD1209PTB2 Axial Fan offers 2600 rpm speed and 12V voltage with a flow rate of 82.343 m3/h. It features a square frame, ball bearing, and inverter compatibility for efficient cooling applications.

SKU: 1063787 Category: Tags: , , , , , , , , , , , , , ,
In stock: 3 pcs
Very low
Hurry! Only 3 left in stock.
Add to quote

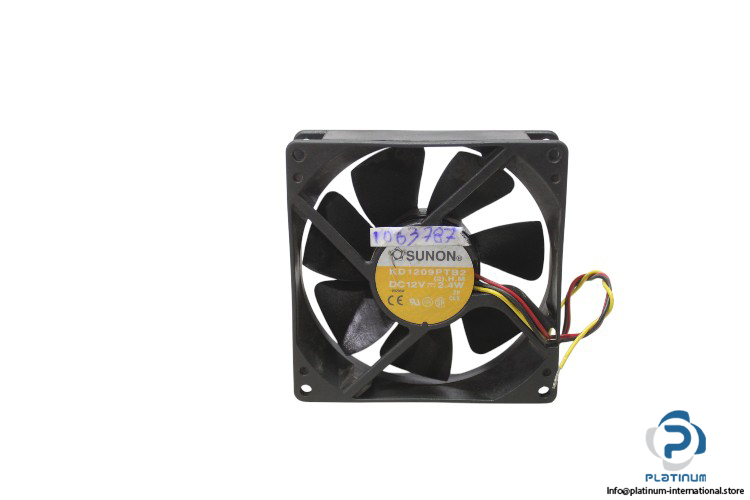

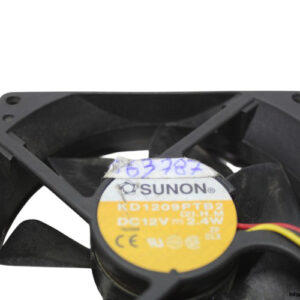

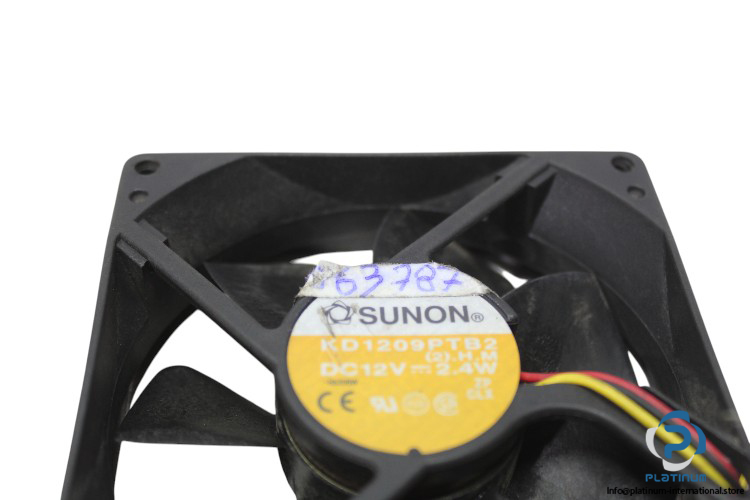

Sunon KD1209PTB2 Axial Fan

The Sunon KD1209PTB2 Axial Fan is designed to provide efficient airflow in compact spaces. With a 12V operating voltage and 2600 rpm speed, this fan ensures high performance with minimal power consumption.

Manufacturer: Sunon

Model: KD1209PTB2

Type: Axial Fan

P/N: (2).H.M

Technical Information:

  • Frame Shape: Square Frame
  • No. of Blades: 7
  • Dimensions (mm): 92x92x25
  • Direction: Push
  • Bearing: Ball
  • Voltages (V): 12 V
  • Power Rating (W): 2.4 W
  • Speed (rpm): 2600
  • Flow Rate (m3/h): 82.343
  • Flow Rate (CFM): 48.5
  • Current (A): 0.14 A
  • Inverter: With Inverter
  • Number of Wires: 3
  • Blade Material / Fan Housing Material: Plastic
  • Static Pressure (inch-H20): 0.15
Weight0,11 kg
