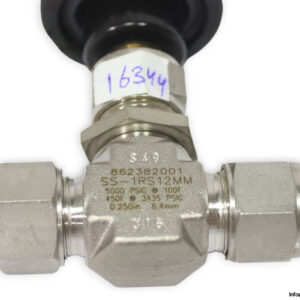

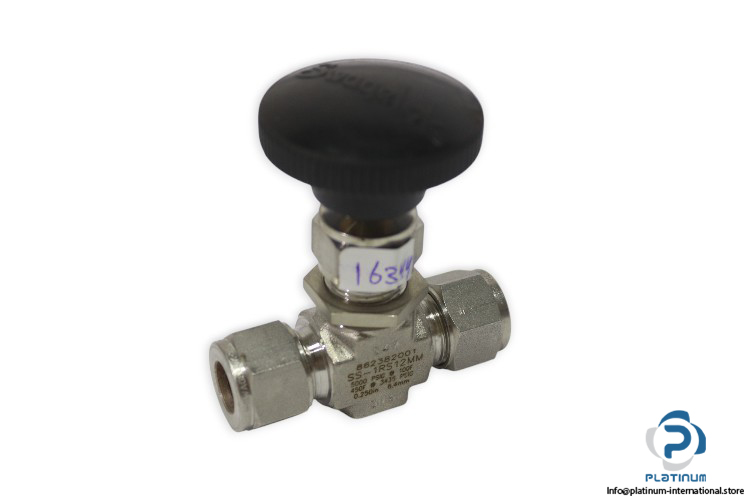

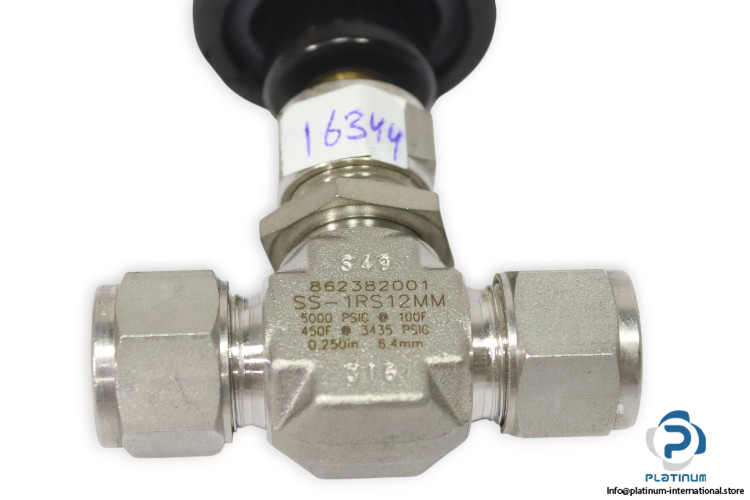

SWAGELOK SS-1RS12MM Needle Valve (Regulating Stem)
The SWAGELOK SS-1RS12MM Needle Valve is designed for precise flow control and reliable performance in demanding industrial applications. Built with stainless steel construction, it ensures long service life and tight shutoff even under high pressure and temperature conditions.
Manufacturer: SWAGELOK
Type: Needle Valve, Regulating Stem
Model: SS-1RS12MM
ID No.: 862382001
Ref Code: S49
Technical Information
- Flow Pattern: Straight (2-way)
- Handle Style: Phenolic Knob
- CV Maximum: 0.73
- Maximum Temperature (°C): 315
- Max Temperature Pressure Rating: 315°C @ 215 BAR
- Max Temperature Pressure Rating: 450°F @ 3435 PSIG
- Minimum Temperature (°C): -53
- Orifice: 6.4 mm
- Body Material: Stainless Steel
- Connection: 12 mm
