Manufacturer: SYK
Type: BALL SCREW SUPPORT UNIT

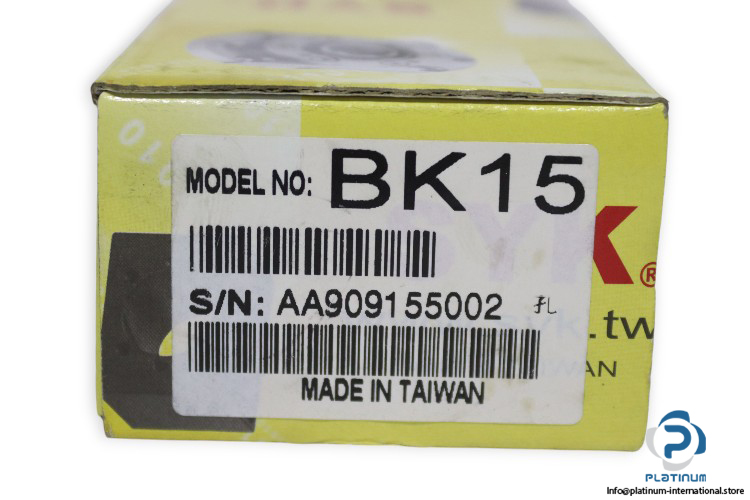

Model: BK 15

Shaft diameter: 15 mm

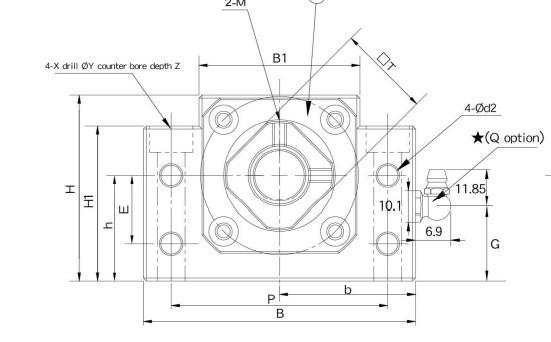

Housing Dimensions
B: 70 mm
L: 27 mm
H: 48 mm
E: 18 mm
T: 22 mm
Surface treatment: Black Oxide
Applicable ball screw date accuracy grade: C3-C10
Ball screw shaft diameter: 18/20 mm
Stiffness: 113 (N.µm)
Angular-contact ball bearing Load Ratings, axial:
Dynamic Load Capacity C_a: 7600 N
Load limit: 3380 N
