Manufacturer: SYK
Type: SUPPORT UNIT

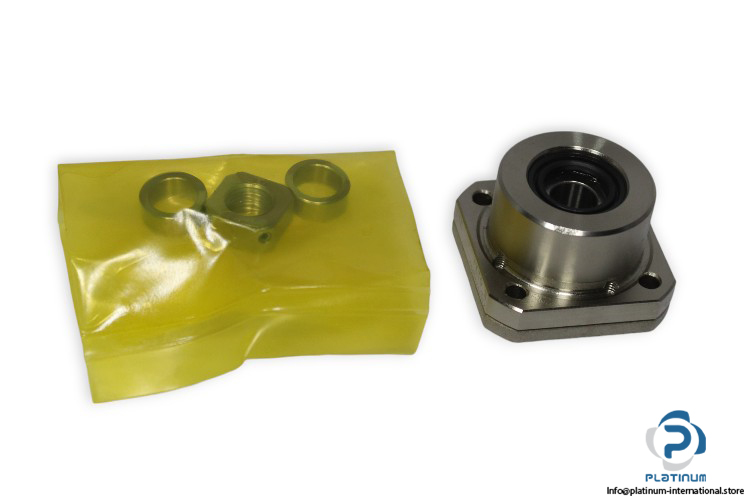

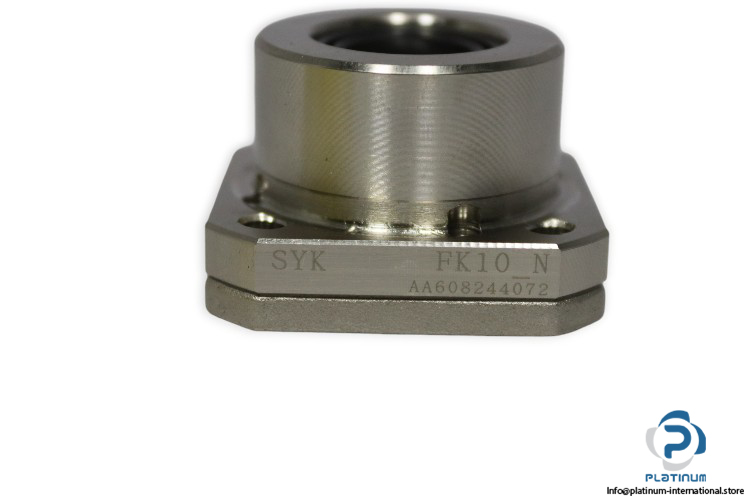

Model: FK10 N

Shaft diameter: 10 mm

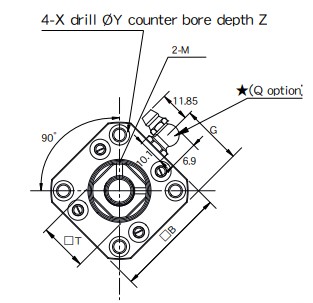

Housing Dimensions
L: 27 mm
B: 42 mm
H: 10 mm
E: 29.5 mm
A: 52 mm
Basic dynamic load rating: 6600 N
Axial direction Load limit: 2730 N
Ball screw shaft diameter: 12/14/15 mm
Stiffness: 94 N.µm
Surface treatment: N, Electroless Nickel Plating
Type: Fixed-Side Round Type
Max. Starting torque: 190 gf-cm
Bearings used: General case
Applicable ball screw accuracy grade: C3 ~ C10
