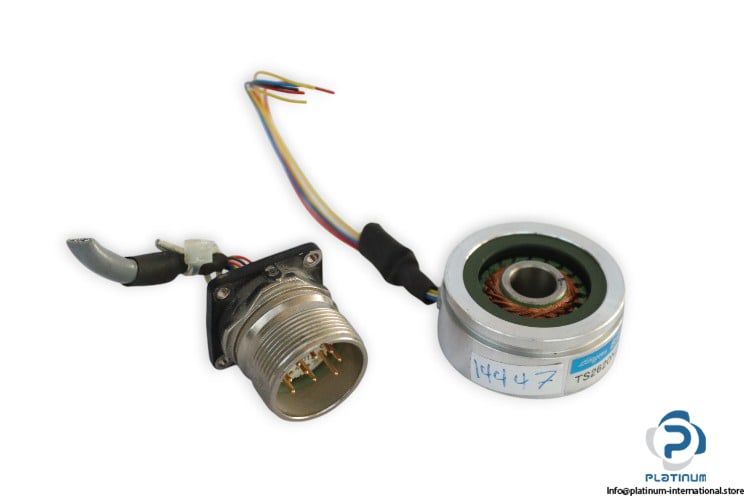

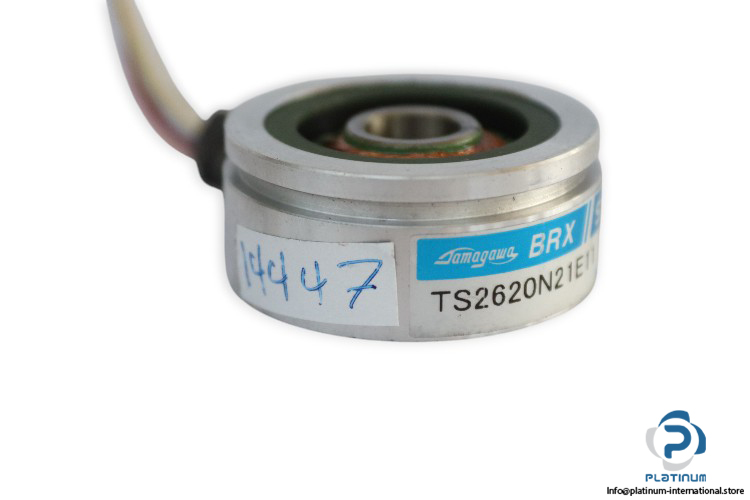

TAMAGAWA TS2620N21E11 BRX BUILT-IN RESOLVER

Designed for precision motion control systems, the TAMAGAWA TS2620N21E11 is a high-performance BRX built-in resolver from the SMARTSYN FA-RESOLVER range. Engineered for reliability in extreme environments, it features compact dimensions, a wide operating temperature range, and robust signal accuracy.

Manufacturer: TAMAGAWA
Type: BRX Built-In Resolver
Model: TS2620N21E11

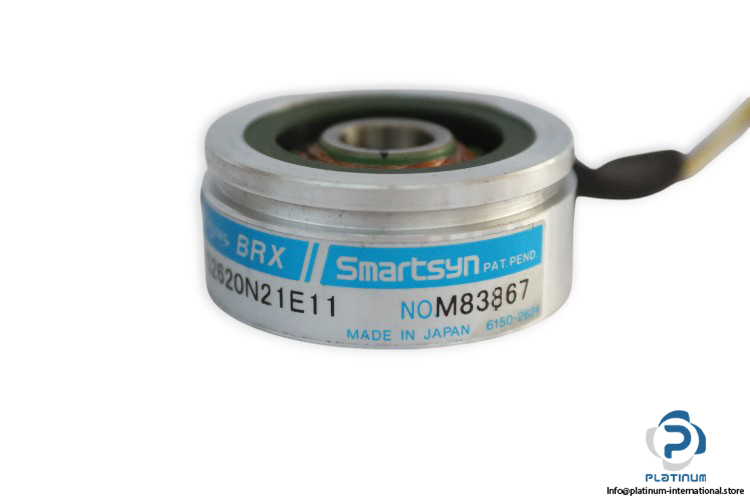

Part No.: M83867
Series: SMARTSYN
Range: FA-RESOLVER

Technical Information

• Frame Size: 15
• Bore Diameter: 9.52 mm
• Operating Speed: 10000 min^-1
• Transformation Ratio: 0.5
• Input Voltage: 7 V rms
• Input Frequency: 10 kHz
• Output Type: Normal

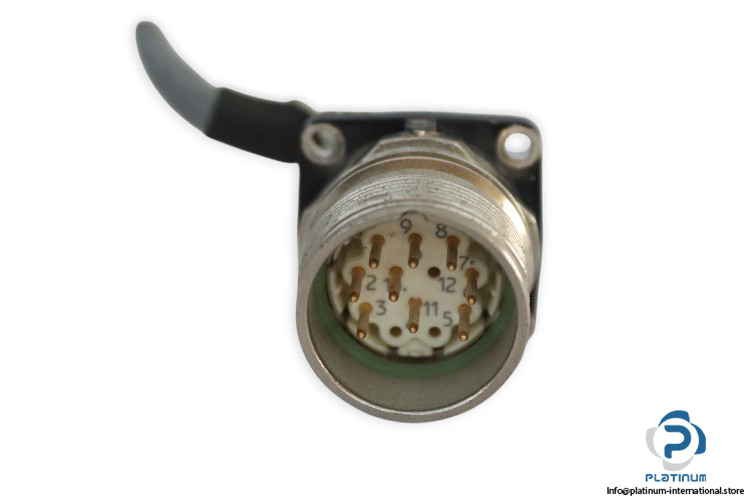

• Electrical Connection: Cable Connector 12-Pin, 2m
• Total Diameter: 36.83 mm
• Protection Class: IP54
• Operating Temperature: -55 / 150 °C
