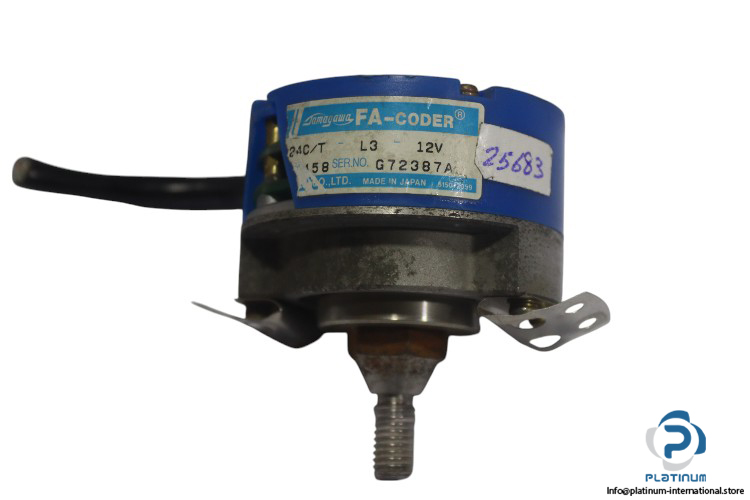

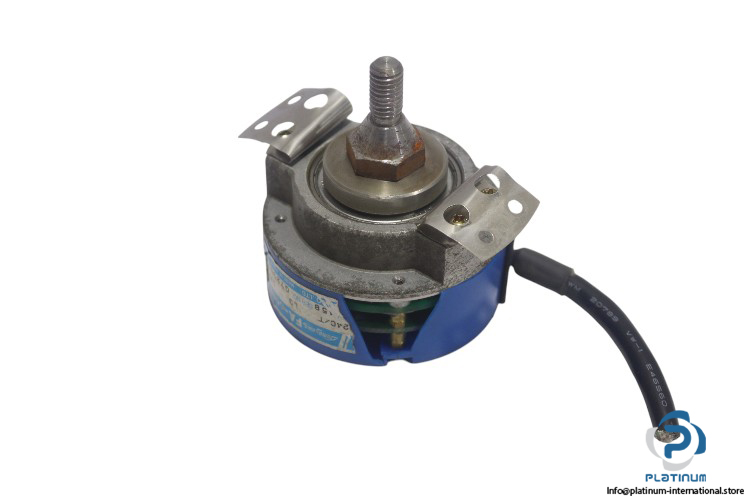

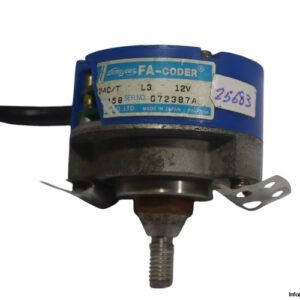

Tamagwa OIH60-1024C/T L3 12V “ Incremental Encoder
The Tamagawa OIH60-1024C/T L3 12V incremental encoder provides precise and reliable rotational feedback for industrial applications. With a 1024 PPR resolution, it operates effectively in demanding environments, offering durability and high-frequency response for advanced control systems.
- Manufacturer: Tamagawa
- Type: Incremental Encoder
- Model: OIH60-1024C/T L3 12V
- Series: OIH 60
- Range: FA-CODER
Technical Information:
- Outside Diameter: 60 mm
- Shaft Diameter: 8 mm
- Resolution: 1024 PPR
- Supply Voltage: 12 V
- Maximum Response Frequency: 200 kHz
- Shaft Type: Solid shaft
- Maximum Allowable Rotation: 6000 min-1 rpm
- Protection Degree: IP40
- Electrical Connection: Cable
- Operating Temperature Range: -20 to 85°C
