TCA1748AT CENTRIFUGAL FAN

CENTRIFUGAL FAN

TCA1748AT Centrifugal Fan with 48V DC, 7 blades, 4000 rpm, 92.16 W power, and 12.125 m³/min (428 CFM) airflow. Durable plastic frame and blades for reliable cooling performance.

SKU: 1063859 Category: Tags: , , , , , , , , , , , , , , , ,
In stock: 250 pcs
Good availability
Ready to ship from our warehouse.
Add to quote

TCA1748AT CENTRIFUGAL FAN

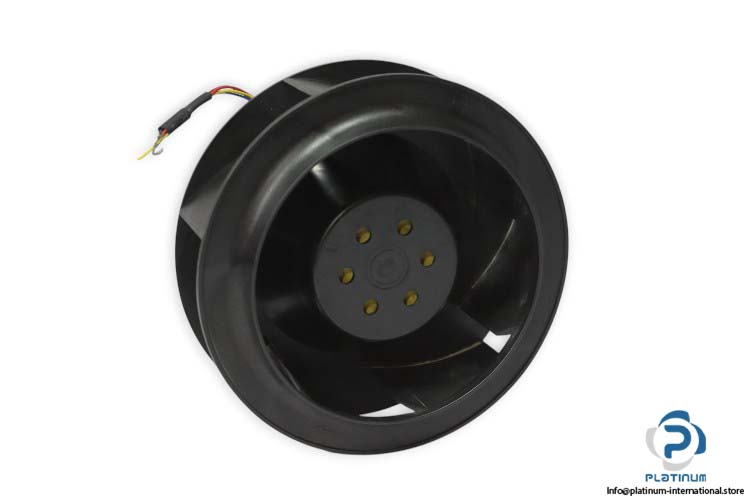

The TCA1748AT Centrifugal Fan is designed for efficient airflow and high-performance cooling applications. With a circular frame, 7-blade design, and durable plastic construction, it offers reliable operation for industrial and electronic cooling systems.

Type: Centrifugal Fan

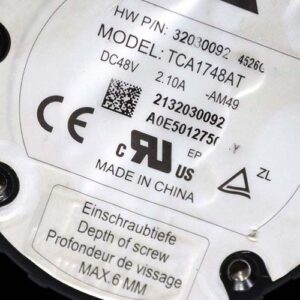

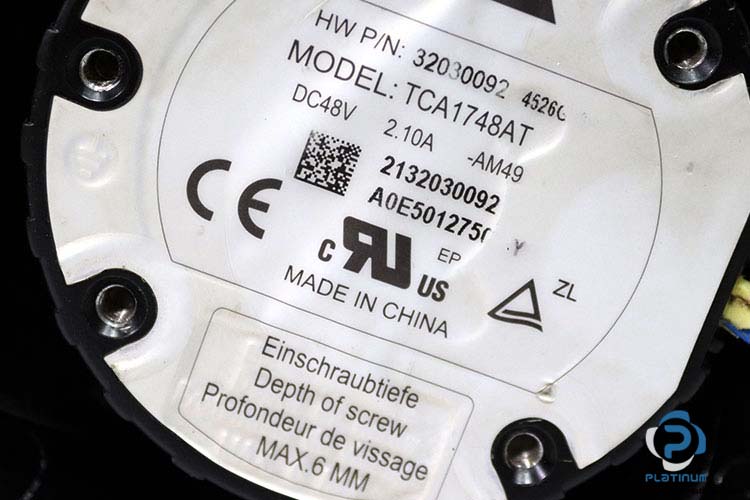

Model: TCA1748AT
Part No.: 32030092
Code: 2132030092/A0E5012750 Y/-AM49/ 4526

Technical Information

  • Frame Shape: Circular Frame
  • No. of Blades: 7
  • Dimensions (mm): 175 × 61
  • Direction: Push
  • Voltages (V DC): 48
  • Number of Wires: 4
  • Inverter: Without Inverter
  • Current (A): 2.1
  • Power Rating (W): 92.16
  • Speed (rpm): 4000
  • Blade Material / Fan Housing Material: Plastic / Plastic
  • Depth of Screw: Max. 6 mm
  • Flow Rate (m³/min, CFM): 12.125, 428
  • Max Pressure: 49.7 mmH2O
Weight0,7 kg
