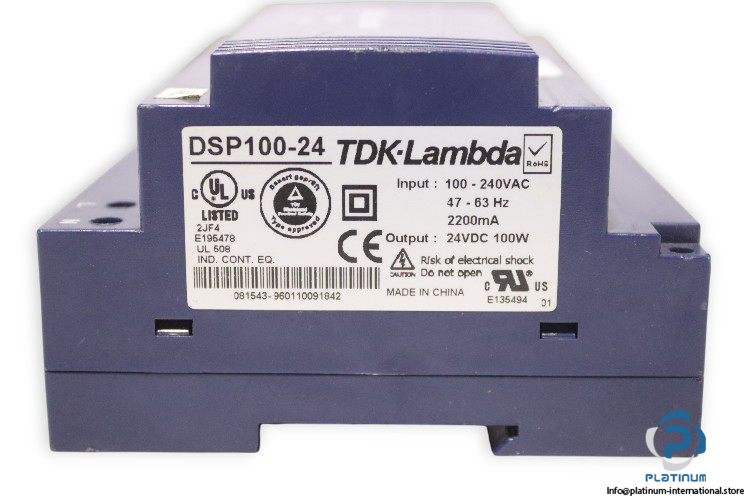

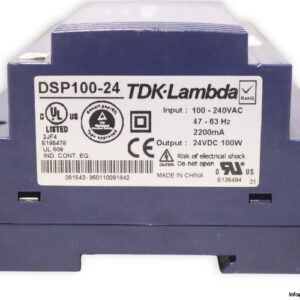

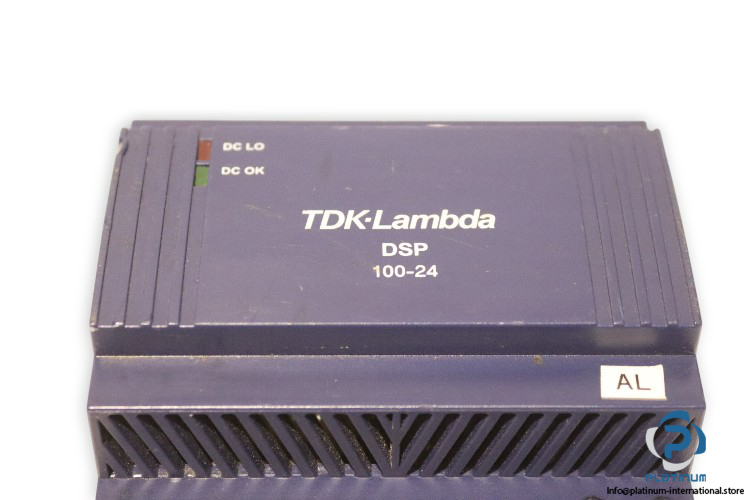

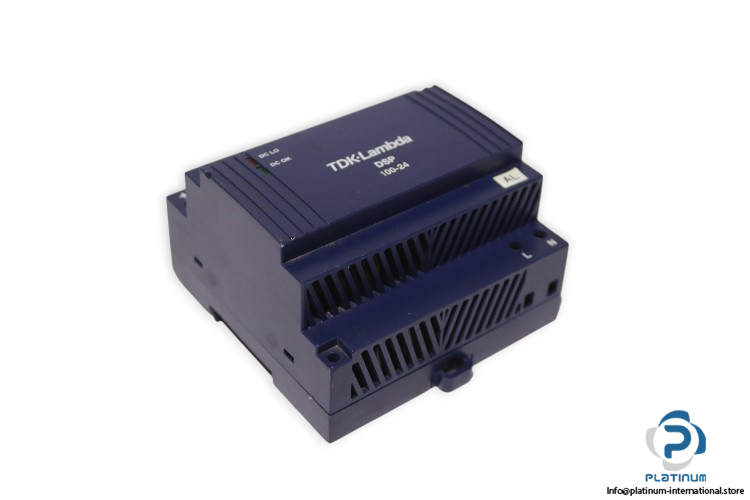

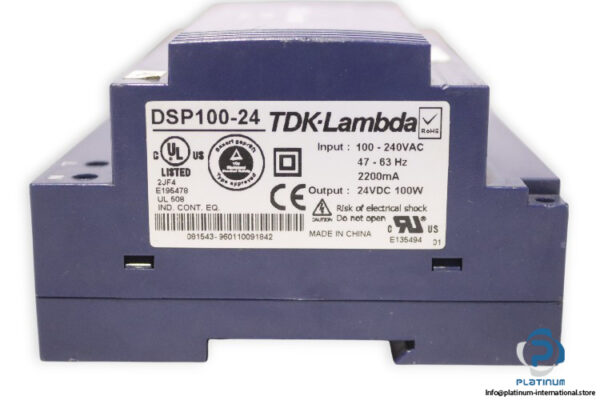

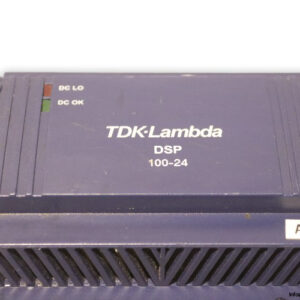

TDK-Lambda DSP100-24 Power Supply
The TDK-Lambda DSP10024 is a reliable and compact industrial power supply designed to deliver stable 24 V DC output for automation and control applications. With a wide input range, robust protection, and compact design, it ensures consistent performance in demanding environments.
Manufacturer: TDK-LAMBDA
Type: Power Supply
Model: DSP100-24
Technical Information
- Input Rated Voltage: 100 / 240 V AC
- Input Inrush Current: 30 / 60 A
- Input Frequency: 47 / 63 Hz
- Output Rated Voltage: 24 V DC
- Output Rated Current: 4.2 A
- Output Power: 100 W
- Protection Class: IP20
- Operation Temperature: -25 / 71 °C
- Dimensions: 90 x 91 x 56.8 mm
