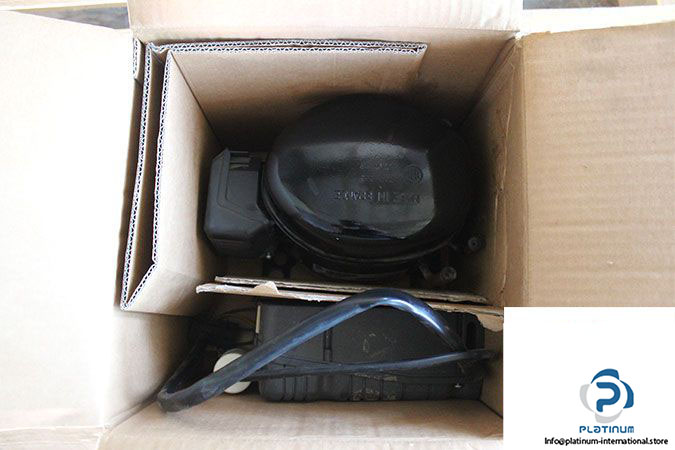

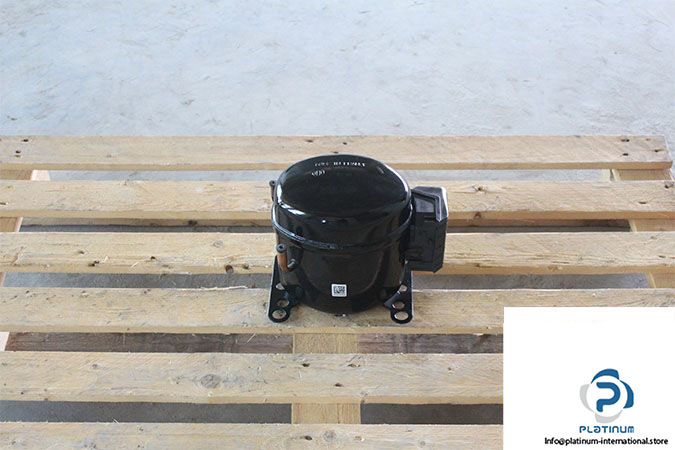

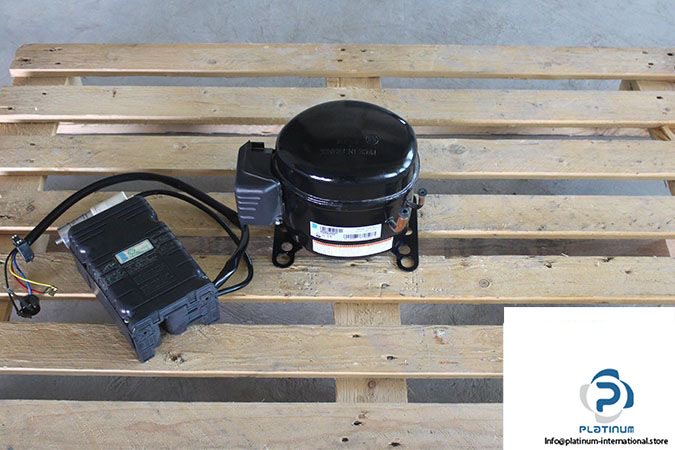

TECUMSEH CAE9450Z COMPRESSOR

The Tecumseh CAE9450Z is a single-phase refrigeration compressor built for reliable cooling performance in commercial and industrial systems. Compatible with R404A refrigerant, this model features compact displacement, high starting torque, and efficient oil management”ideal for low- to mid-capacity refrigeration applications.

Manufacturer: Tecumseh
Type: Compressor
Model: CAE9450Z

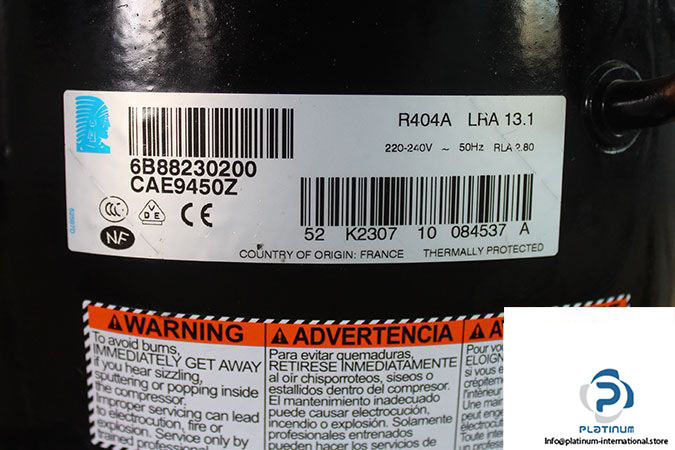

Part No.: 6B88230200 / 52 K2307 10 084537 A
Phase: 1~ Single Phase

Technical Information

• Rated Voltage: 200“240 V
• Max. Current: 3.9 A
• Displacement: 9.4 cm³
• Oil Charge: 350 cm³
• LRA (Locked Rotor Amps): 13.1
• RLA (Rated Load Amps): 2.8
• Frequency: 50 Hz
• Refrigerant: R404A
