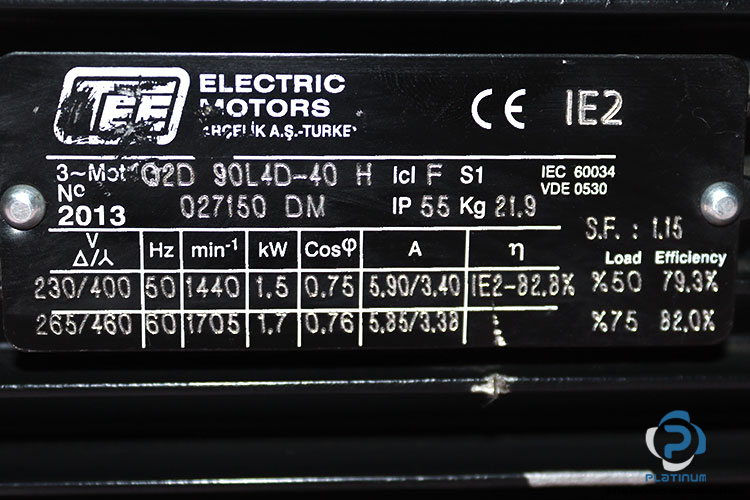

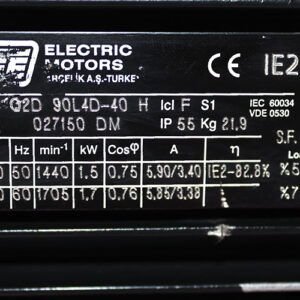

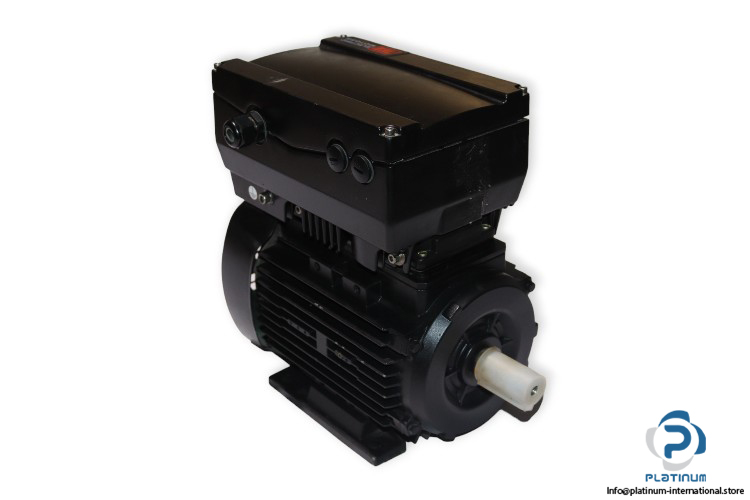

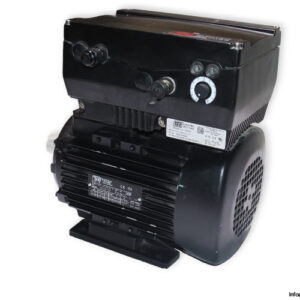

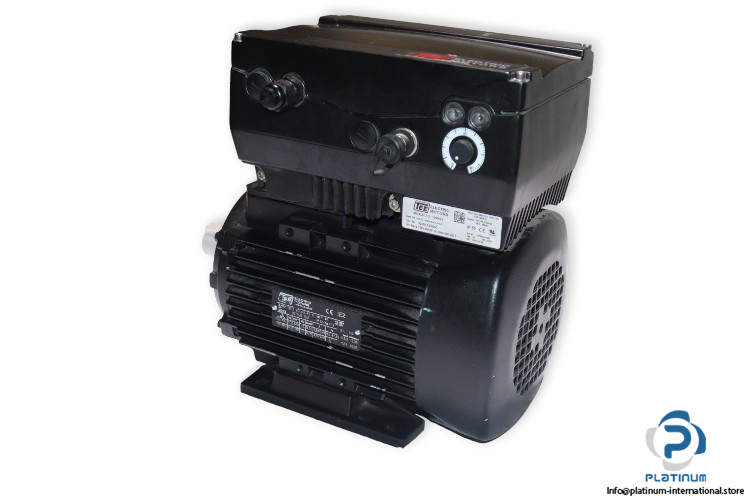

Manufacturer: TEE
Type: Three-phase asynchronous motor
Model: Q2D 90L4D-40 H

AT OPERATION VOLTAGE 230/400 V
Motor output power: 1.5 kW
Nominal Current: 5.90/3.40 A
Rated Speed: 1440 min^-1
Motor nominal frequency: 50 Hz
Power factor: 0.75
Efficiency value: IE2..82%

AT OPERATION VOLTAGE 265/460 V

Motor output power: 1.7 kW
Nominal Current: 5.85/3.38 A
Rated Speed: 1705 min^-1
Motor nominal frequency: 60 Hz
Power factor: 0.76
Protection Class: IP55
Service Type: S1
Insulation Class: F
Service factor: 1.15
Load value: 50%..75%
Efficiency value (according to IEC 60034-2-1): 85.6% _ 87.0%

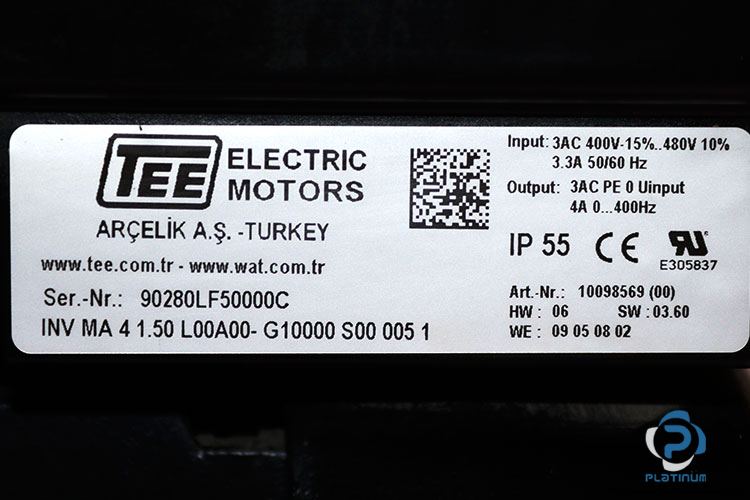

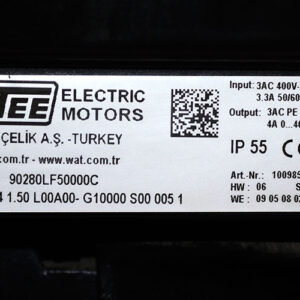

Inverter model: inv ma 41.50

Input voltage: 400/480 V
Input current: 3.3 A
input frequency: 50/60 Hz
Output power: 0/480 V
Output current: 4 A
Output Frequency: 0/400 Hz
Protection Class: IP55
