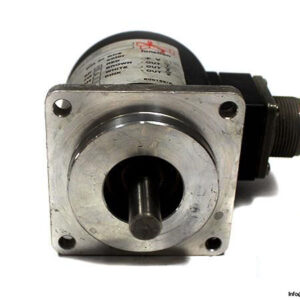

TEKEL TK421-F-250-11/30-S-10-L-PP2 INCREMENTAL ENCODER
The TK421-F-250-11/30-S-10-L-PP2 is a high-performance incremental encoder from TEKEL, engineered for precise position and speed sensing in industrial environments. With robust construction and IP65 protection, this encoder ensures accurate feedback in harsh conditions, making it ideal for motion control applications alongside servo motors and sensors.
Manufacturer: TEKEL
Type: Incremental Encoder
Model: TK421-F-250-11/30-S-10-L-PP2
Part No.: 0 196 41 735 DP
Technical Information

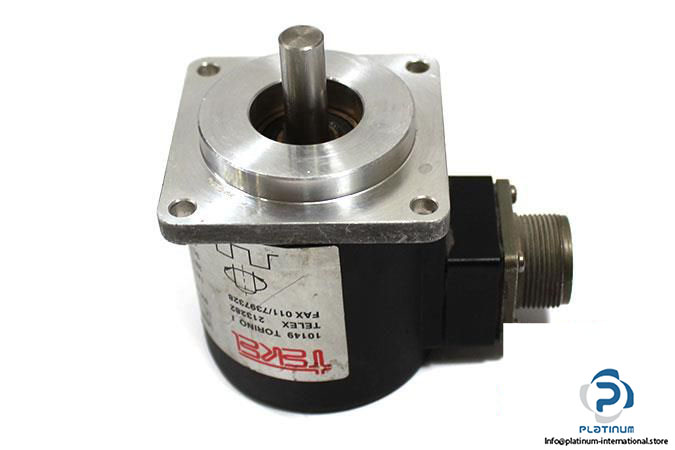

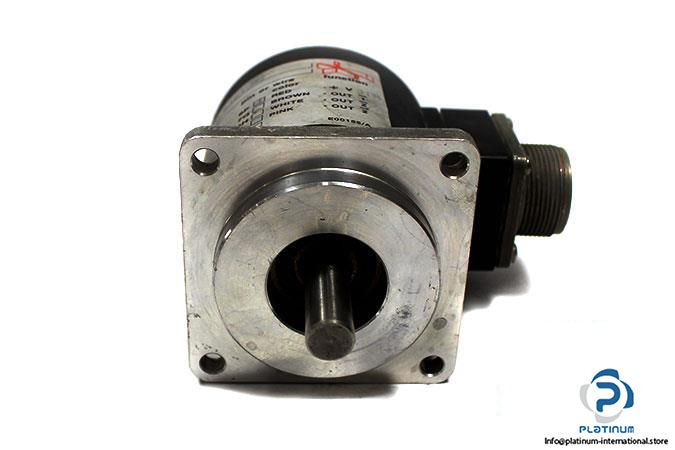

- Flange Type: Square flange
- Shaft Type: Solid Shaft
- Shaft Diameter: 10 mm
- Resolution: 250 pulses per revolution (PPR)
- Voltage Supply: 11 / 30 V DC
- Output Circuits: Push-Pull (HTL)
- Output Frequency: 0 / 50 KHz

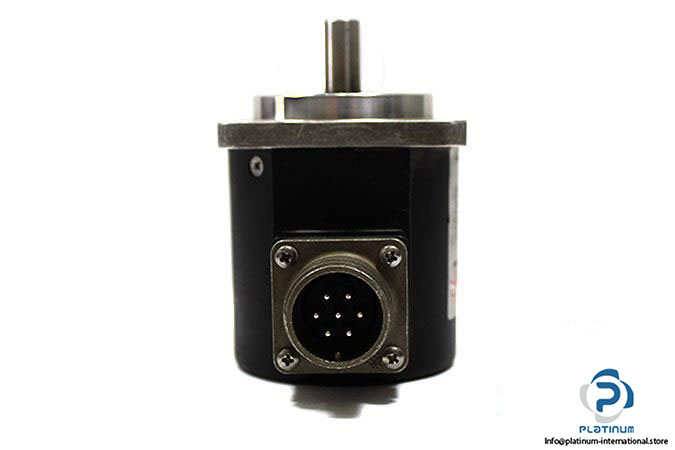

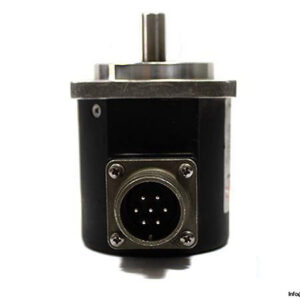

- Connection Type: Radial MIL connector (7 pins)
- Protection Class: IP65
- Temperature Range: -10 / 70 °C
