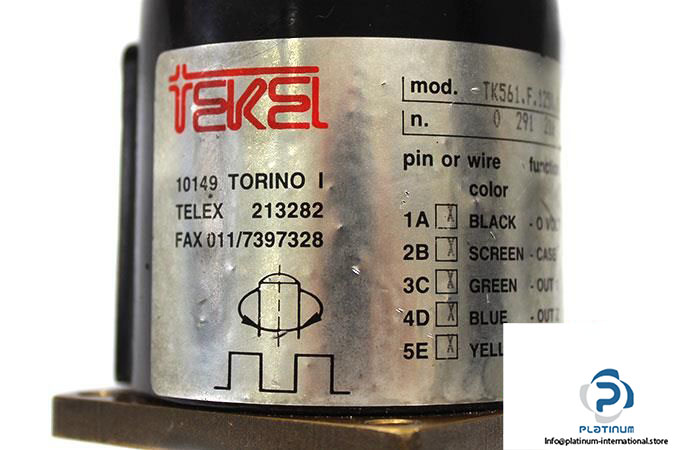

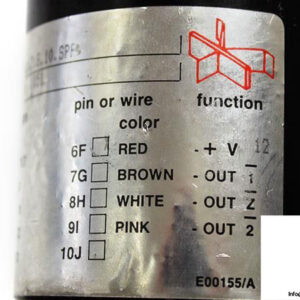

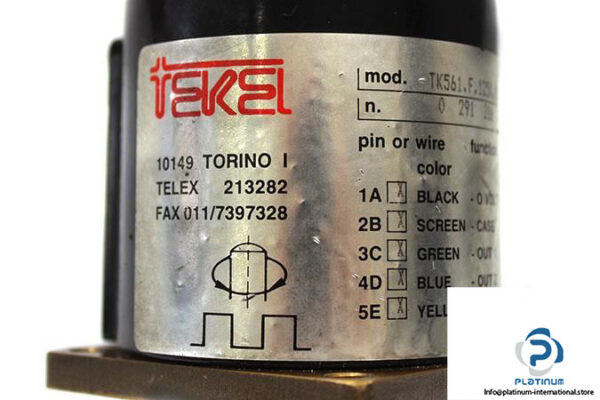

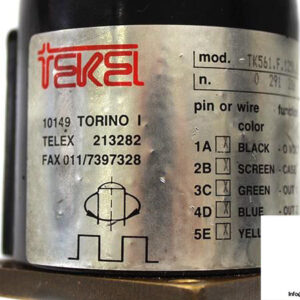

TEKEL TK561-F-1250-12-S-10-SPP INCREMENTAL ENCODER
The TEKEL TK561-F-1250-12-S-10-SPP is a high-precision incremental encoder engineered for robust signal output and reliable performance in automation systems. Designed with a square flange and solid shaft, it provides a resolution of 1250 PPR and push-pull HTL output, making it suitable for demanding motion control applications.
Manufacturer: TEKEL
Type: Incremental Encoder
Model: TK561-F-1250-12-S-10-SPP
Technical Information

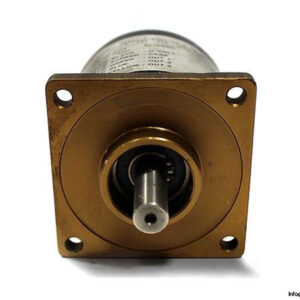

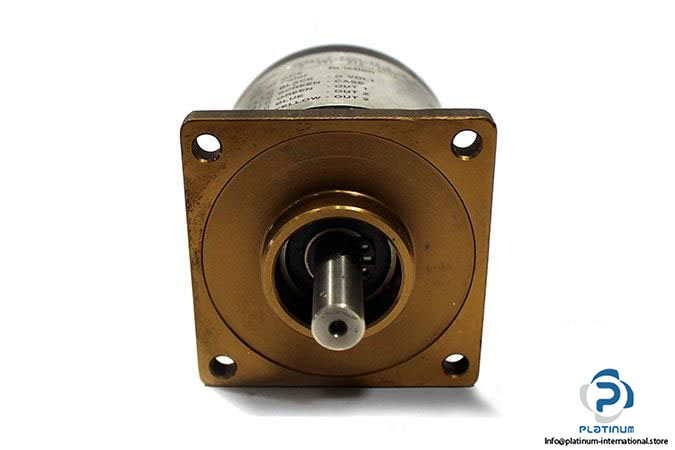

- Flange Type: Square flange
- Shaft Type: Solid Shaft
- Shaft Diameter: 10 mm
- Resolution: 1250 pulses per revolution (PPR)
- Voltage Supply: 12V DC
- Output Circuits: Push-Pull (HTL)
- Output Frequency: 0 / 100 KHz

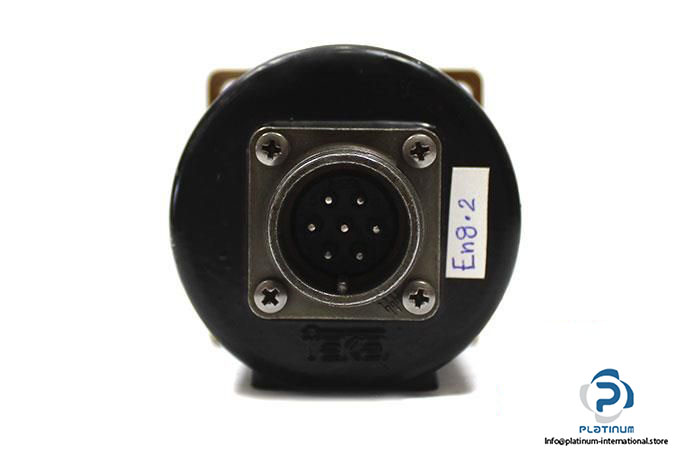

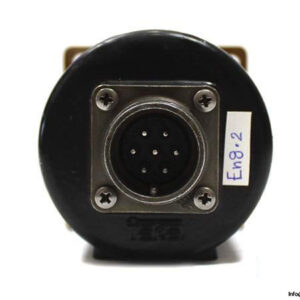

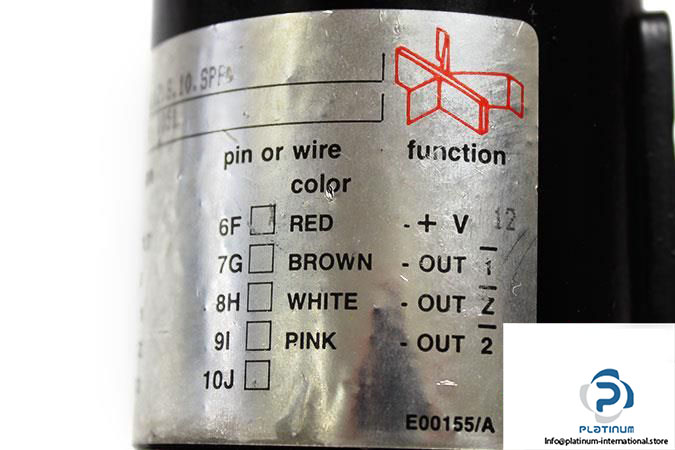

- Connection Type: Axial MIL connector (7 pins)
- Output Circuits: NPN
- Temperature Range: -10 / 70 °C
