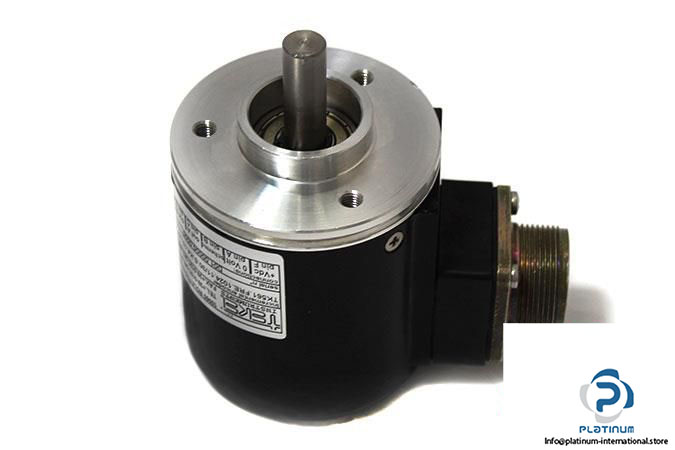

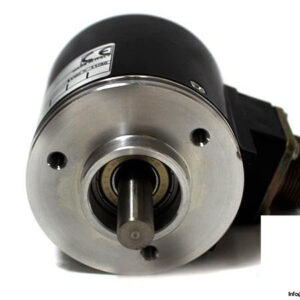

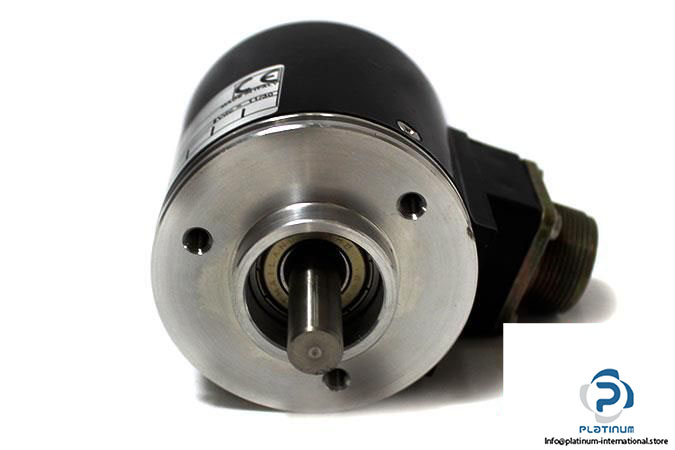

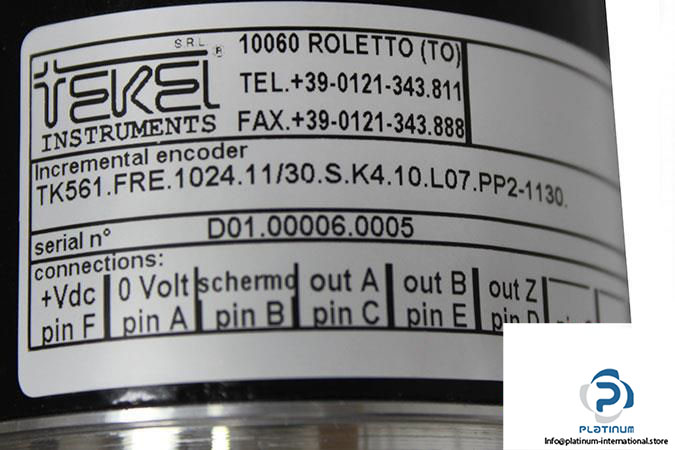

TEKEL TK 561-FRE-1024 INCREMENTAL ENCODER
The TEKEL TK 561-FRE-1024-11/30-S-K4-10-L07-PP2-1130 is a high-precision incremental encoder built to deliver reliable feedback for motion control systems in industrial environments. With a robust solid shaft and a resolution of 1024 PPR, this encoder ensures accurate positioning and speed monitoring.
Manufacturer: TEKEL
Type: Incremental Encoder
Model: TK 561-FRE-1024-11/30-S-K4-10-L07-PP2-1130

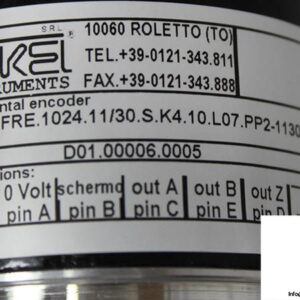

Serial No.: D01.00006.0005
Technical Information
- Flange Type: REO 444 Flange
- Shaft Type: Solid Shaft
- Shaft Diameter: 10 mm
- Resolution: 1024 pulses per revolution (PPR)

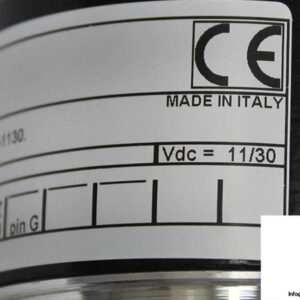

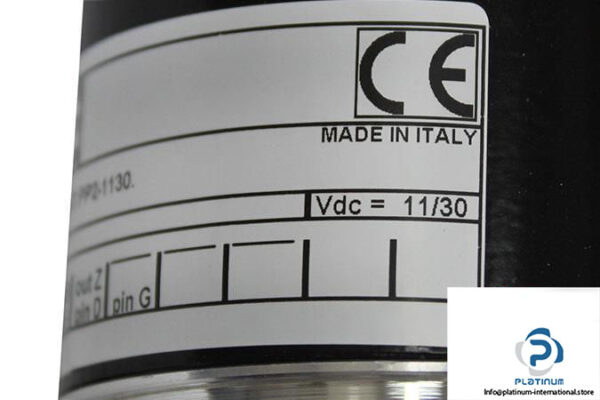

- Voltage Supply: 11“30 V DC
- Output Circuits: Push-Pull (HTL)
- Output Frequency: 0“100 kHz

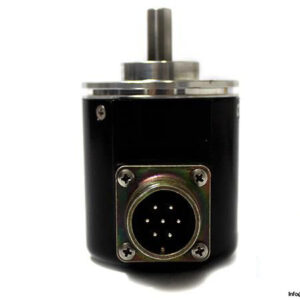

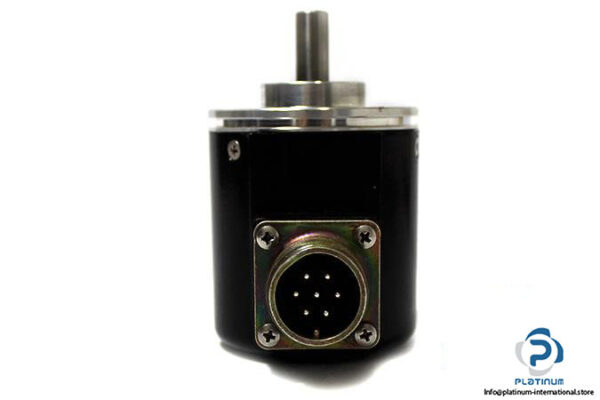

- Connection Type: Radial MIL Connector (7 pins)
- Protection Class: IP64
- Temperature Range: -10 to 70 °C
