Manufacturer: telco

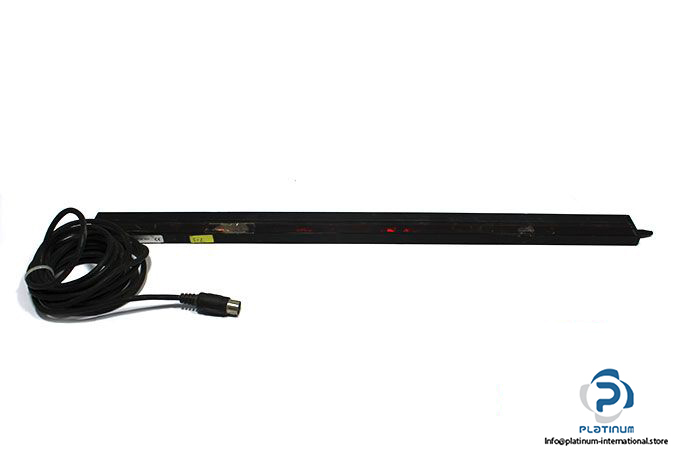

Type: Remote Light Curtain

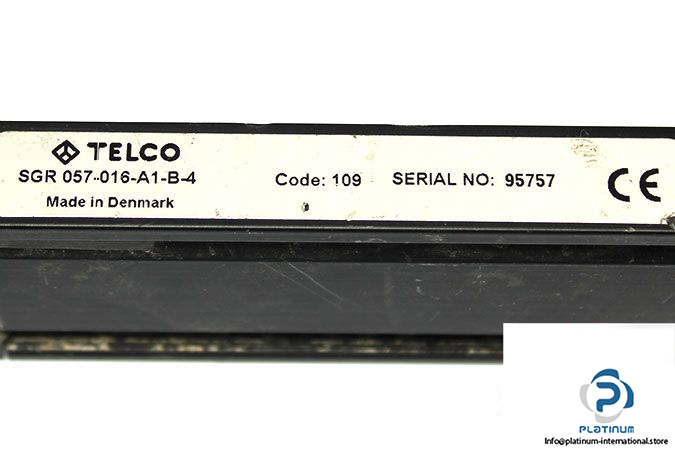

Model: SGR 057-016-A1-B-4

Operation Mode: Thru Beam

Function: Receiver

Active Height: 425 mm

Number of Channels: 16

Sensing Range : 3,5 m

Housing: 37,5 x 13 mm

Length: 570 mm

Connection: 4 m non-flexible cable

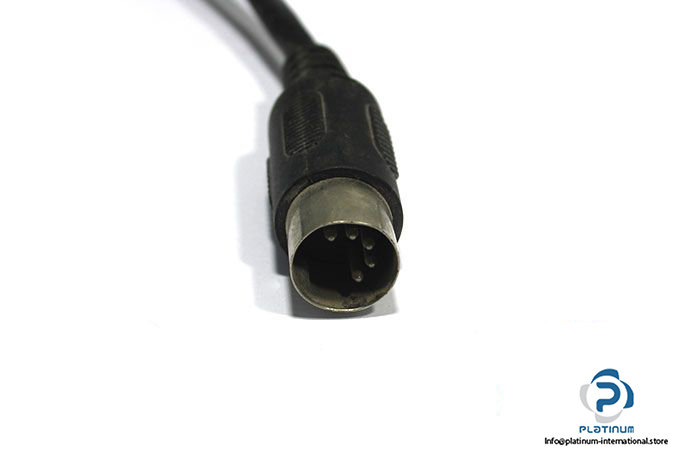

Connection Type: 5 pin, 180 DIN plug

Spacing between bottom & Ch1: 22 mm

Channel Spacing: 28 mm

Power On Indicator: Red LED

Profile Dimensions (w x d): Leading Edge (B), 37,5 x 13 mm

Housing Material, Front Lens: Polycarbonate

Housing Material, Profile: Aluminium (black anodised)

Cable: 5 x 0,14 mm²

Cable Sleeve: PUR Ø 5,2 mm

Weight: 0.51 kg
