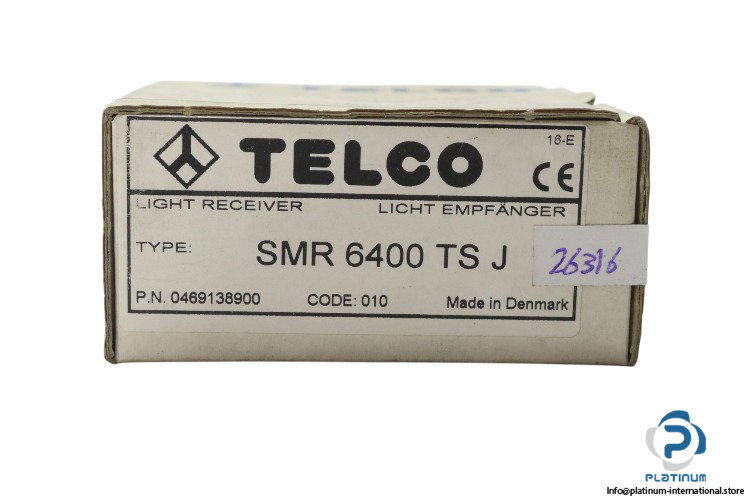

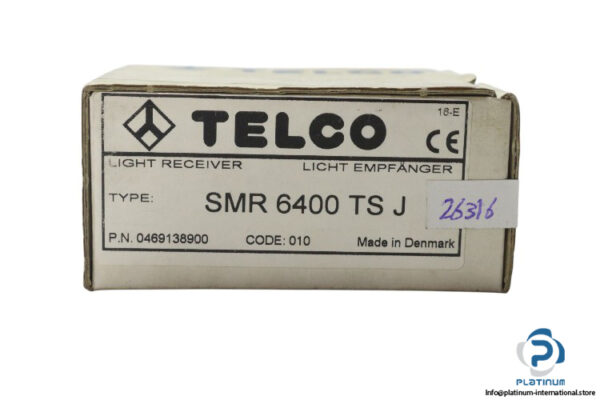

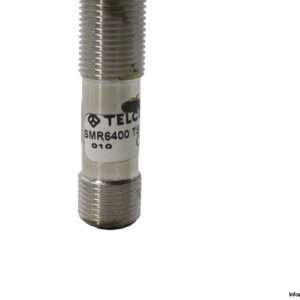

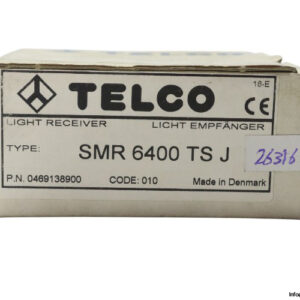

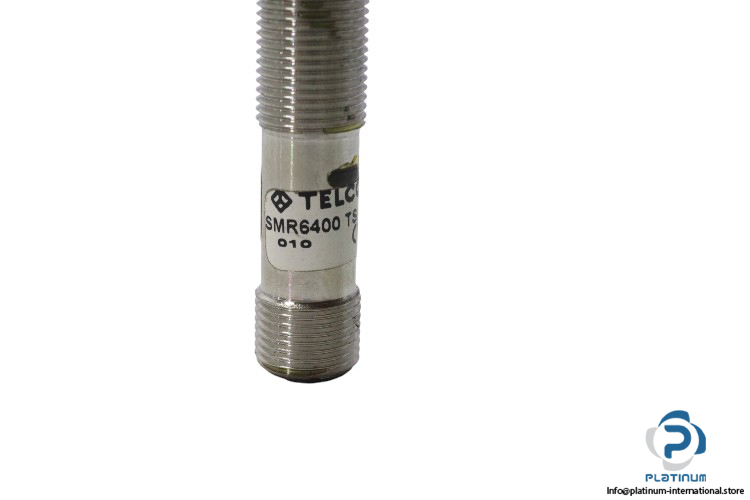

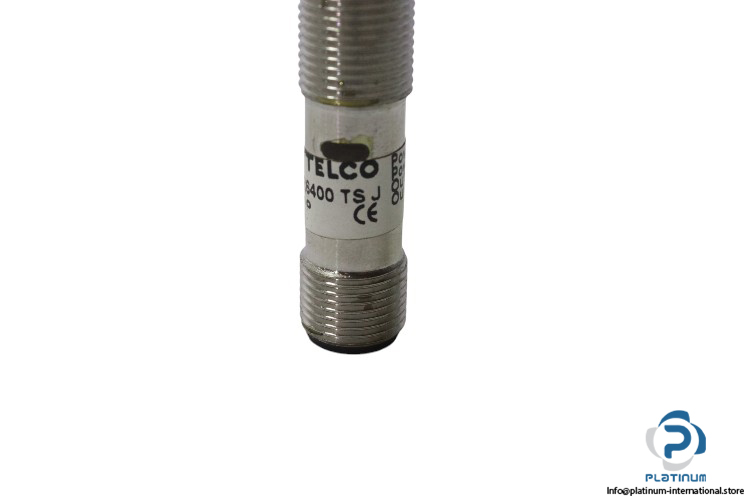

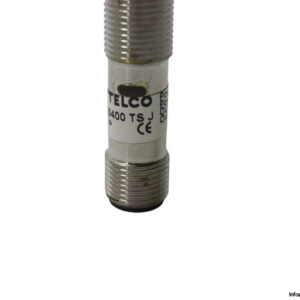

Telco SMR6400 TS J “ Thru Beam Photoelectric Sensor

The Telco SMR6400 TS J thru beam photoelectric sensor offers reliable and precise object detection in industrial applications. Designed for high performance, it features a stainless steel housing and provides excellent protection against dust and water with an IP67 rating.

• Manufacturer: Telco
• Type: Thru Beam Photoelectric Sensor
• Model: SMR6400 TS J
• Part No.: 0469138900

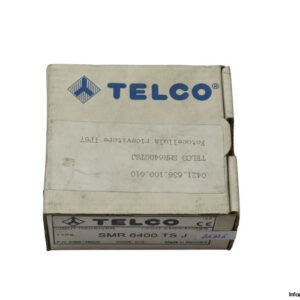

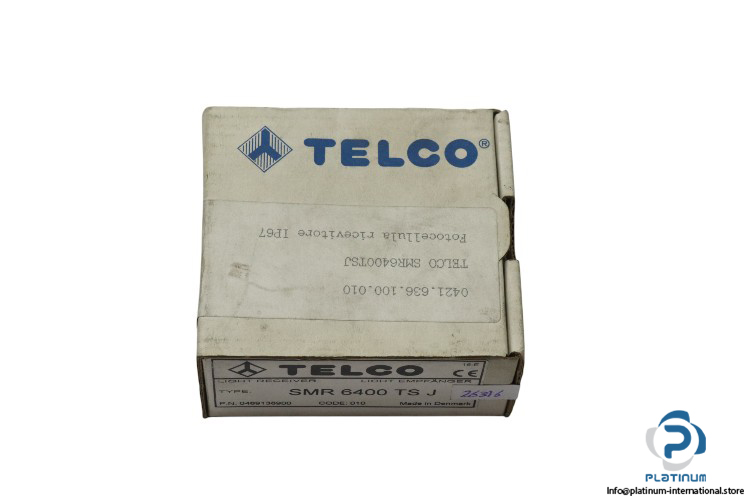

• COMAS Part No.: 0421.636.100.010
• Order Code: 010

Technical Information:

• Operation Mode: Thru Beam
• Function: Light Receiver
• Supply Voltage: 10 to 32 V DC
• Sensing Range: 6 m
• Output: NPN/PNP
• Output Status: NO (Normally Open)

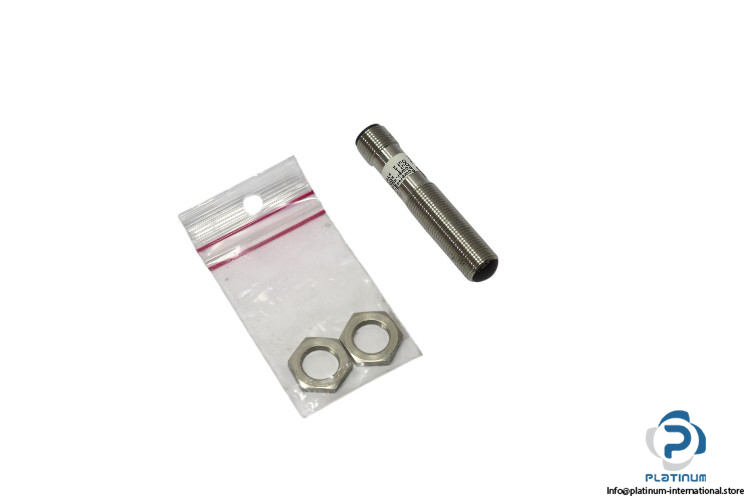

• Housing: M12 x 1
• Housing Material: Stainless Steel

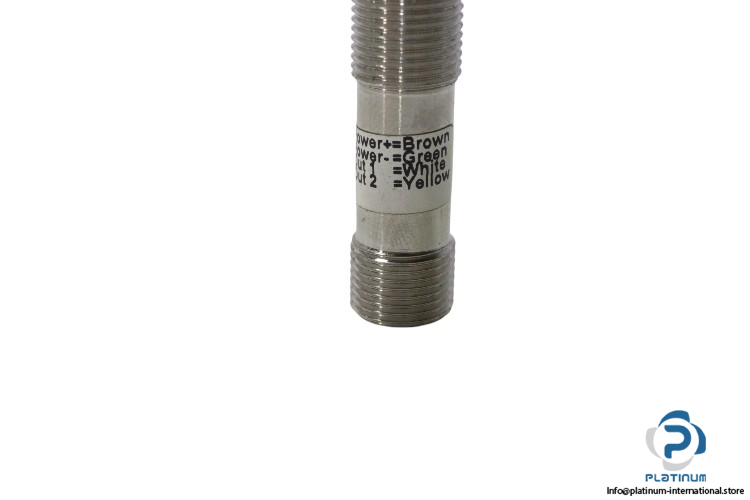

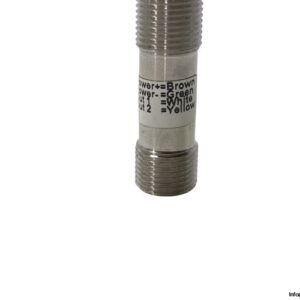

• Connection: 4 pin, M12 plug
• Current Consumption: Max. 320 mW
• Max. Output Load: 100 mA
• Max. Residual Voltage: 2.5 V
• Max. Operation Frequency: 100 Hz
• Operation Temperature: -20 to +60 °C
• Sealing Class: IP 67
