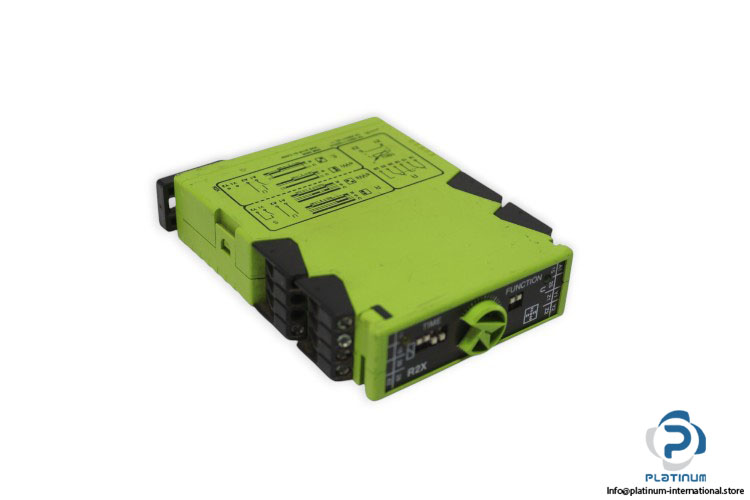

TELE CONTROLS R2X ON OFF DELAY TIME RELAY
The TELE CONTROLS R2X is a reliable on-off-delay time relay designed for precise timing control in automation and industrial applications. Built to handle demanding environments, it offers a wide time range, dependable switching, and robust protection.
Manufacturer: TELE CONTROLS
Type: On-Off-Delay Time Relay
Model: R2X
Technical Information
- Supply Voltage: 230 V AC
- Frequency: 50 / 60 Hz
- On-Delay Time Range: 125 ms / 30 h
- Contact: DPDT 2 Changeover (CO)
- Contact Voltage: 250 V AC
- Contact Current: 5 A
- Power Consumption: 1500 VA
- Protection Class: IP40
- Ambient Temperature: -25 / 55 °C
