Manufacturer: TELEMECANIQUE

Type: Push-button

Device short name: 9001K

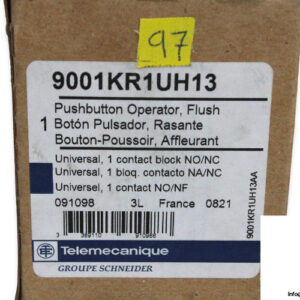

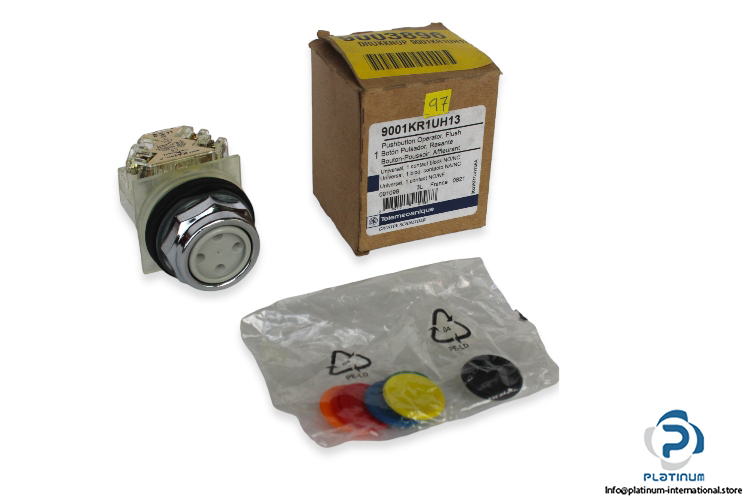

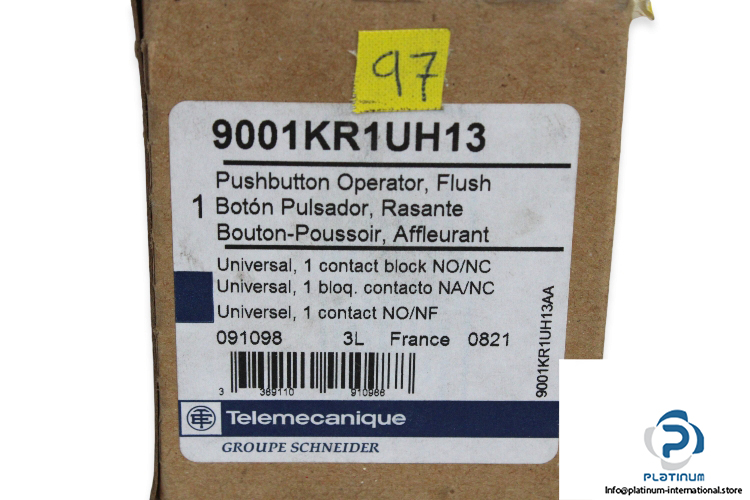

Model: 9001KR1UH13

MNR: 091098



Type of operator: Spring return

Operator profile: 7 colours choice flush, unmarked

Operator additional information: Metal guard

Bezel material: Metal

Mounting diameter: 30 mm

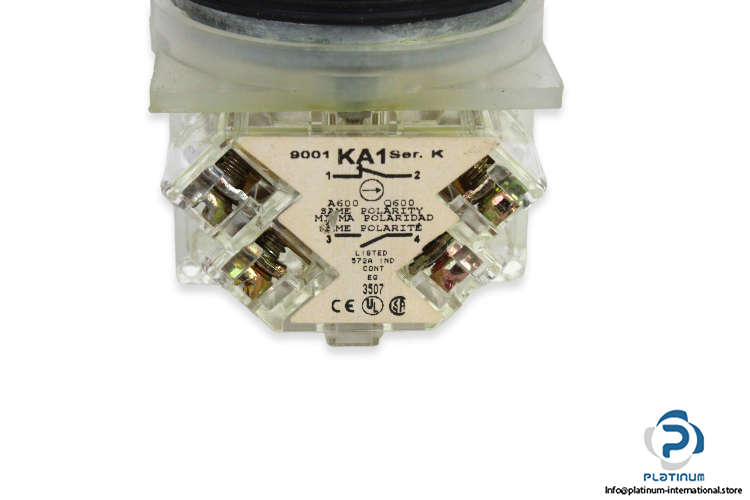

Contacts type and composition: 1 C/O

Connections – terminals: Screw clamp terminals 1 x 0.22…2 x 1.5 mm² conforming to IEC 60947-1

Tightening torque: 0.8 N.m

Rated operational current: 3 A

Rated insulation voltage: 250 V

Ambient Temperature: -25…70 °C
