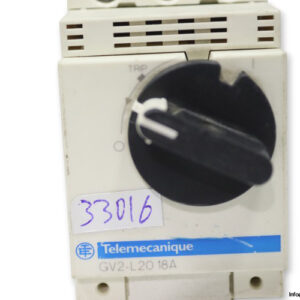

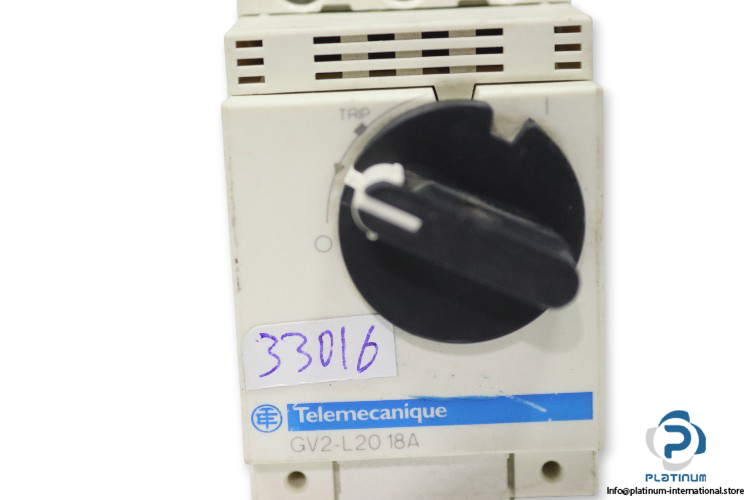

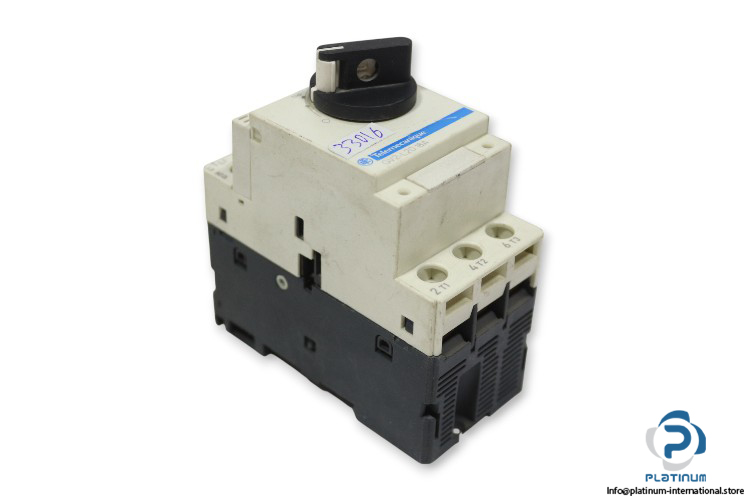

Telemecanique Schneider GV2-L20 18A Motor Circuit Breaker

The Telemecanique Schneider GV2L20 18A Motor Circuit Breaker from the TeSys Deca range is designed for reliable protection and control of motors. It combines overload and short-circuit protection with compact construction, ensuring safety, performance, and durability in industrial environments.

Manufacturer: Telemecanique Schneider
Type: Motor Circuit Breaker
Model: GV2-L20 18A

Technical Information

• Series: GV2
• Range: TeSys Deca
• Short Name: GV2L
• Operating Voltage: 690 V AC
• Operational Current: 18 A
• Frequency: 50 / 60 Hz
• Power Dissipation: 1.8 W
• Poles No.: 3
• Motor Power:
• 400/415 V AC: 7.5 kW
• 500 V AC: 9 kW
• 690 V AC: 15 kW
• Rated Ultimate Short-Circuit Breaking Icu:
• 230/240 V AC: 100 kA
• 400/415 V AC: 50 kA
• 500 V AC: 16 kA
• 690 V AC: 4 kA
• Magnetic Tripping Current: 341 A
• Protection Class: IP20
• Operation Temperature: -20 / 60 °C
• Dimensions: 89 x 45 x 97 mm
