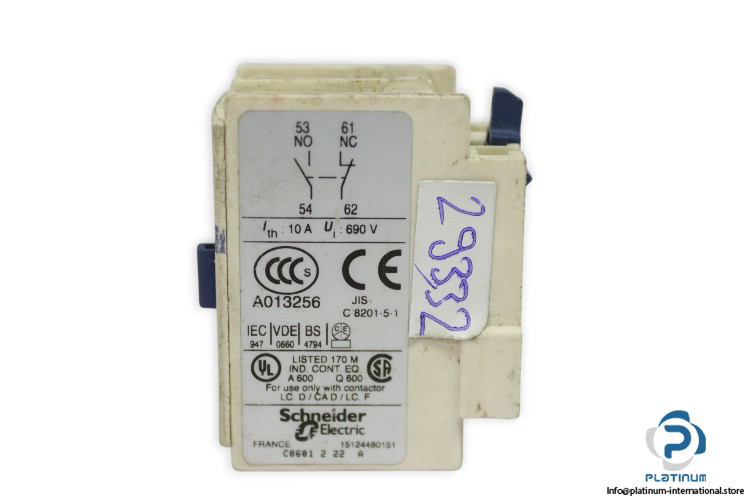

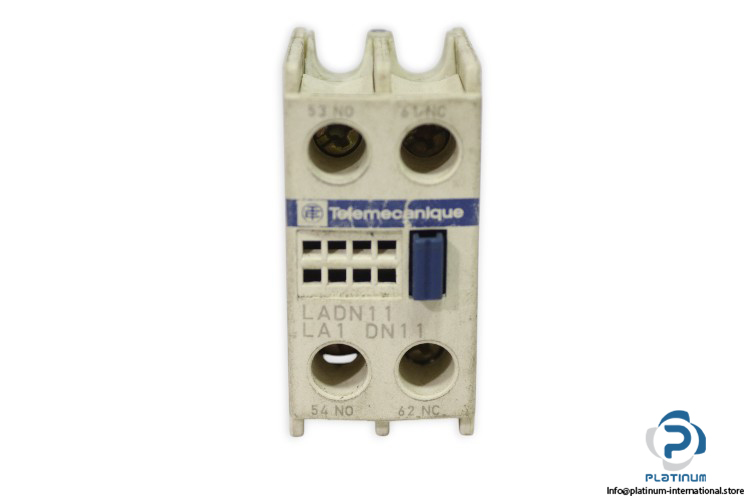

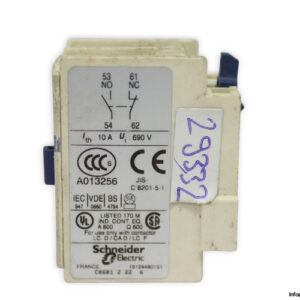

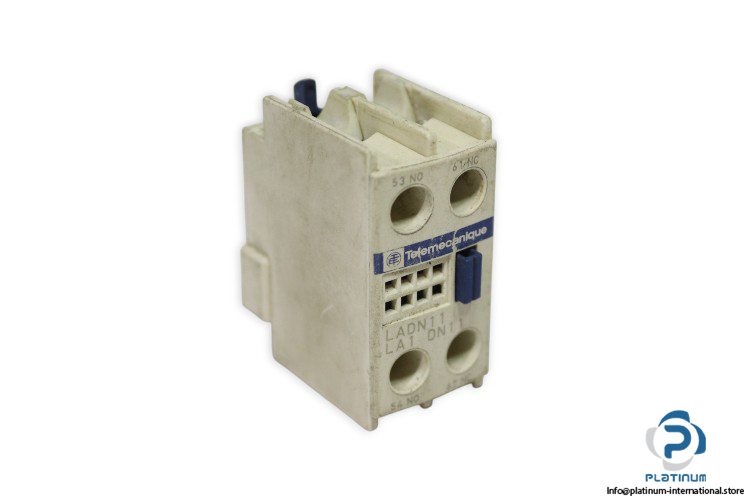

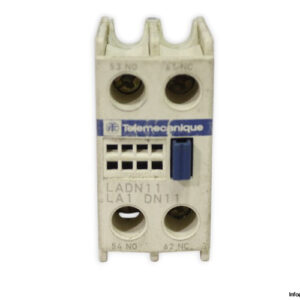

Schneider Telemecanique LADN11 Contact Block

The Schneider Telemecanique LADN11 is a high-quality auxiliary contact block designed for reliable instantaneous operation in control systems. Built with durability and precision, it ensures safe switching and compatibility with a wide range of applications.

Manufacturer: Schneider Telemecanique
Type: Contact Block
Model: LADN11

Technical Information

• Auxiliary Contacts Operation: Instantaneous
• Rated Insulation Voltage (Ui): 600 V / 690 V
• System Voltage: 690 V AC 25 / 400 Hz
• Thermal Current (Ith): 10 A
• Pole Contact Composition: 1 NO + 1 NC
• Irms Rated Making Capacity: 140 A at ‰¤ 690 V AC, 250 A at ‰¤ 690 V DC
• Overlap Time: 1.5 ms
• Insulation Resistance: 10 MΩ
• Ambient Temperature: -5 / 60°C
• Height: 48 mm
• Width: 26 mm
• Depth: 42 mm
