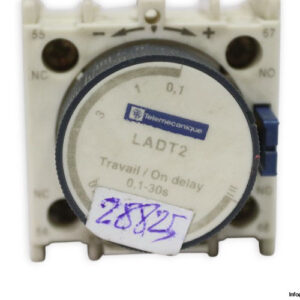

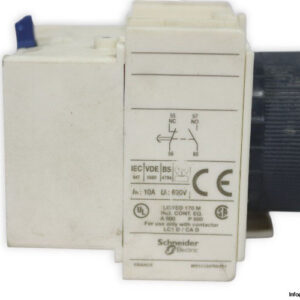

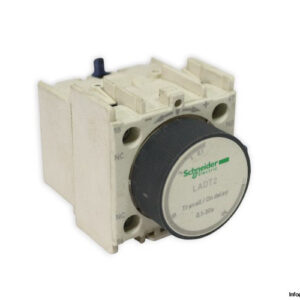

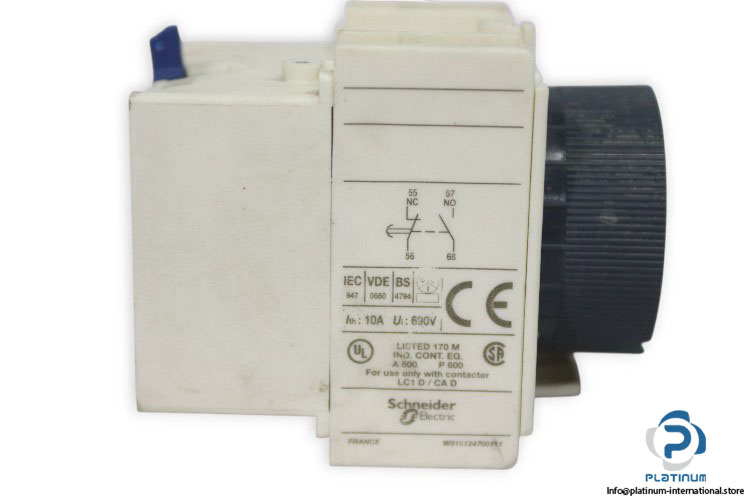

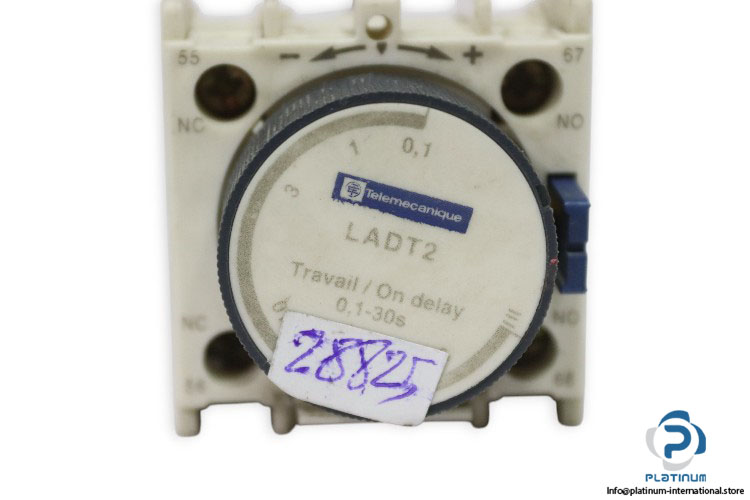

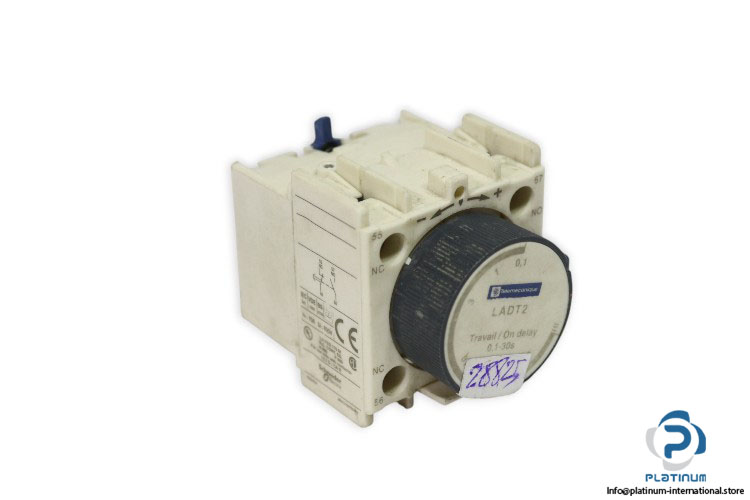

Telemecanique Schneider LADT2 Time Delay Auxiliary Contact Block
The TeSys Deca LADT2 from Telemecanique Schneider is a reliable time delay auxiliary contact block designed for industrial control systems. It ensures safe and accurate switching with an adjustable on-delay timer, making it ideal for automation and motor control applications.
Manufacturer: Telemecanique Schneider
Type: Time Delay Auxiliary Contact Block
Model: LADT2
Product Name: TeSys Deca
Technical Information
- Rated Operational Voltage: 690 V AC
- Rated Thermal Current (Ith): 6 A
- Rated Insulation Voltage (Ui): 690 V
- Timer Type: On Delay
- Time Delay Range: 0.1 … 30 s
- Auxiliary Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Min. Switching Voltage: 17 V
- Min. Switching Current: 5 mA
- Protection Class: IP20
- Ambient Temperature: -40 / 70 °C
- Dimensions: 48 x 44 x 61 mm
