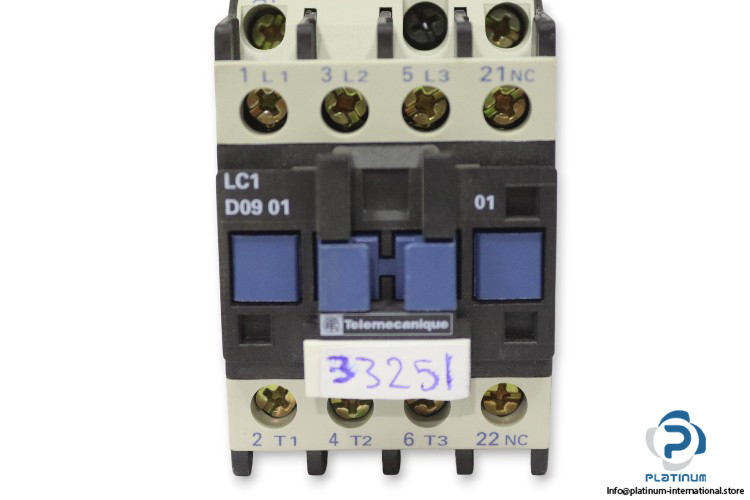

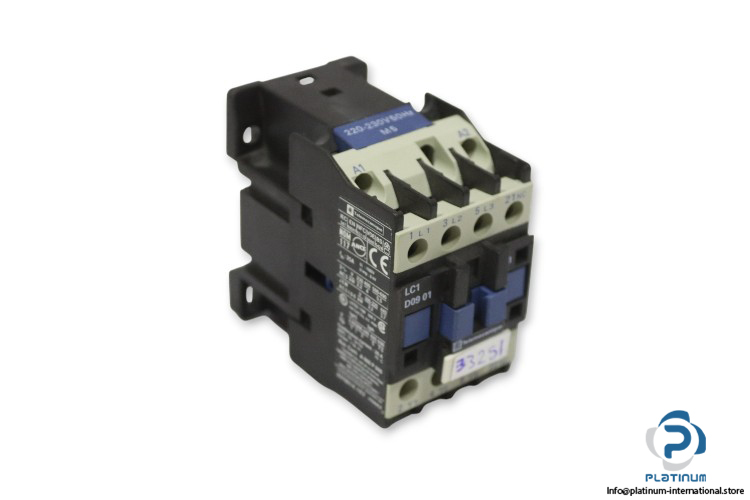

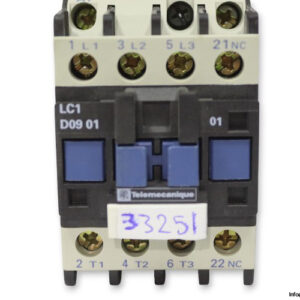

Telemecanique Schneider LC1 D09 01 Contactor

The Telemecanique Schneider LC1D0901 Contactor is a reliable and durable power switching device designed for motor control and industrial automation applications. Part of the LC1D series, it ensures high performance, long electrical life, and dependable switching under demanding conditions.

Manufacturer: Telemecanique Schneider
Type: Contactor
Model: LC1 D09 01
Short Name: LC1D

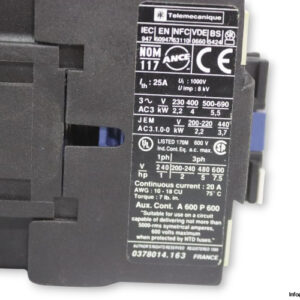

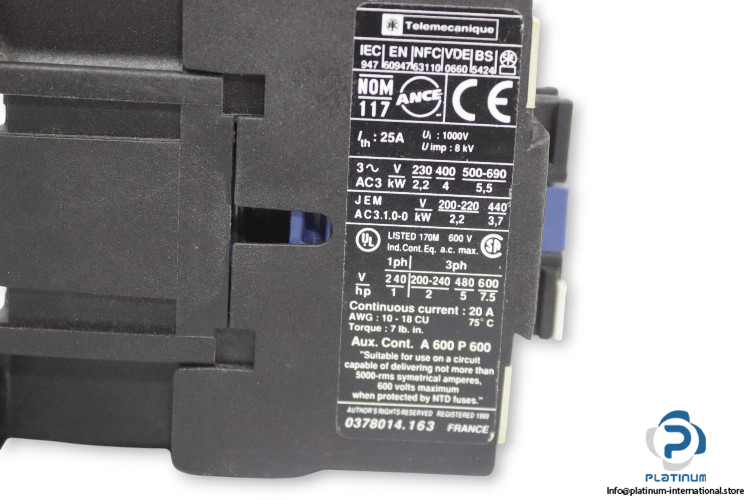

Technical Information

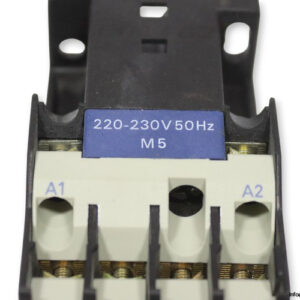

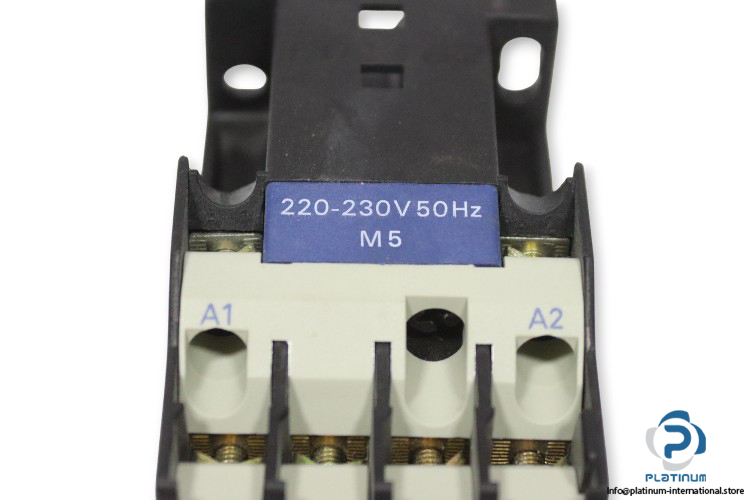

• Coil Voltage: 220/230 V AC 50Hz
• Rated Operational Voltage: 600 V AC
• Rated Continuous Current AC-3: 20 A
• Rated Thermal Current: 25 A
• Frequency: 50 / 60 Hz
• Power AC-3:
  200 / 220 V AC: 2.2 kW
  440 V AC: 3.7 kW
• Horse Power:
  1 Phase 240 V AC: 1 HP
  3 Phase 200 / 240 V AC: 2 HP
  3 Phase 480 V AC: 5 HP
  3 Phase 600 V AC: 7.5 HP
• Rated Impulse Voltage (Uimp): 8 kV
• Poles No.: 4-Pole
• Auxiliary Contact: 1 Normally Closed (NC)
• Rated Breaking Capacity: 250 A
• Protection Class: IP20
• Ambient Temperature: -40 / 60 °C
• Dimensions: 77 x 45 x 86 mm
