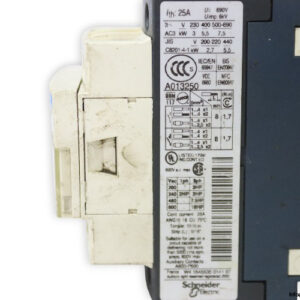

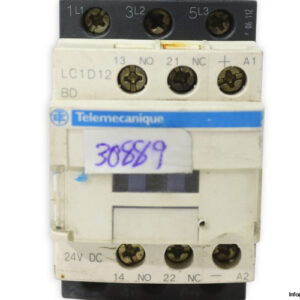

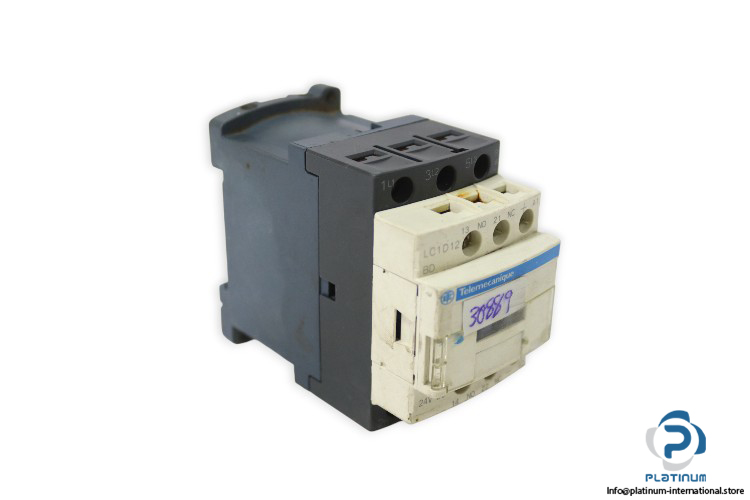

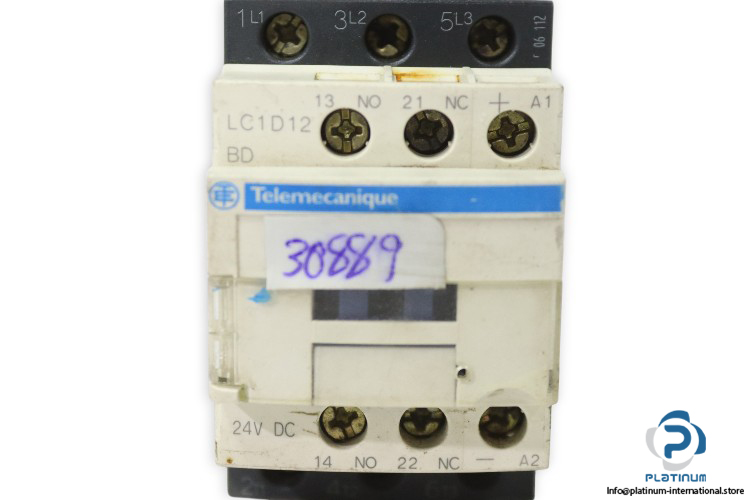

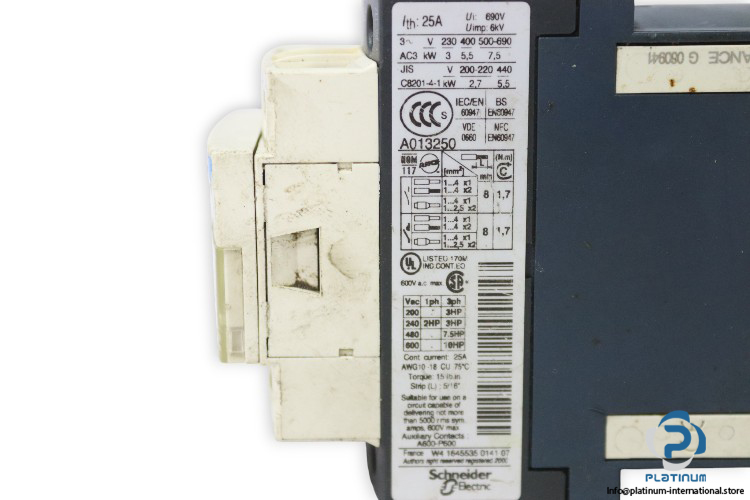

Telemecanique Schneider LC1D12 BD Contactor

The Telemecanique Schneider LC1D12BD Contactor is a reliable and efficient control device designed for switching electric motors and power circuits. Featuring high operational durability and strong performance, it provides excellent electrical endurance for a wide range of industrial applications.

Manufacturer: Telemecanique Schneider
Type: Contactor
Model: LC1D12BD

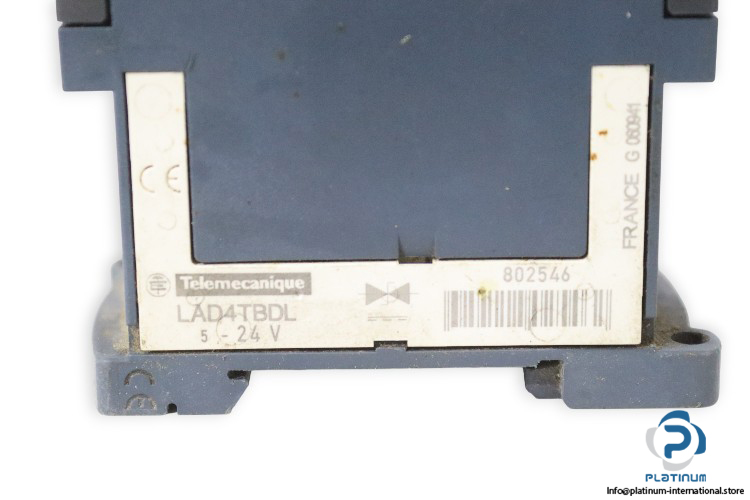

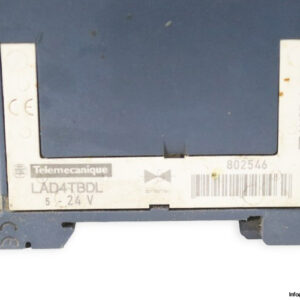

Alternative Model: LAD4TBDL
Short Name: LC1D

Technical Information

• Coil Voltage: 24 V DC
• Rated Operational Voltage: 690 V AC / 300 V DC
• Rated Operational Current AC-3: 12 A
• Rated Thermal Current: 25 A
• Frequency: 50 / 60 Hz
• Power AC-3:
• 220 / 230 V AC: 3 kW
• 380 / 400 / 415 / 440 V AC: 5.5 kW
• 500 / 660 / 690 V AC: 7.5 kW
• Horse Power:
• 1 Phase 115 V AC: 0.5 HP
• 3 Phase 230 / 240 V AC: 2 HP
• 1 Phase 200/208 / 230/240 V AC: 3 HP
• 3 Phase 460/480 V AC: 7.5 HP
• 3 Phase 575/600 V AC: 10 HP
• Rated Impulse Voltage (Uimp): 6 kV
• Poles No.: 3-Pole
• Auxiliary Contact: 2-Pole 1 Normally Open (NO) + 1 Normally Closed (NC)
• Rated Breaking Capacity: 250 A
• Protection Class: IP20
• Ambient Temperature: -40 / 60 °C
• Dimensions: 77 x 45 x 86 mm
