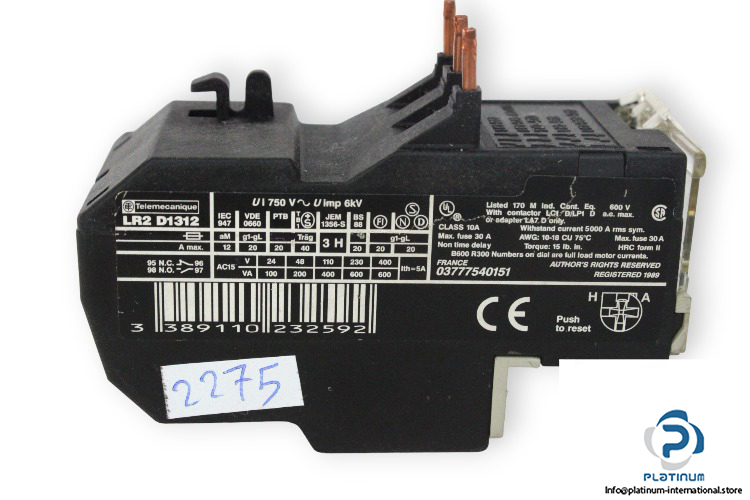

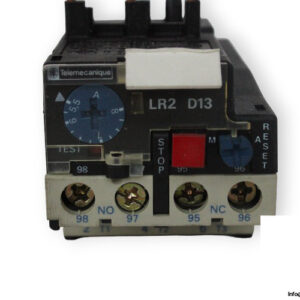

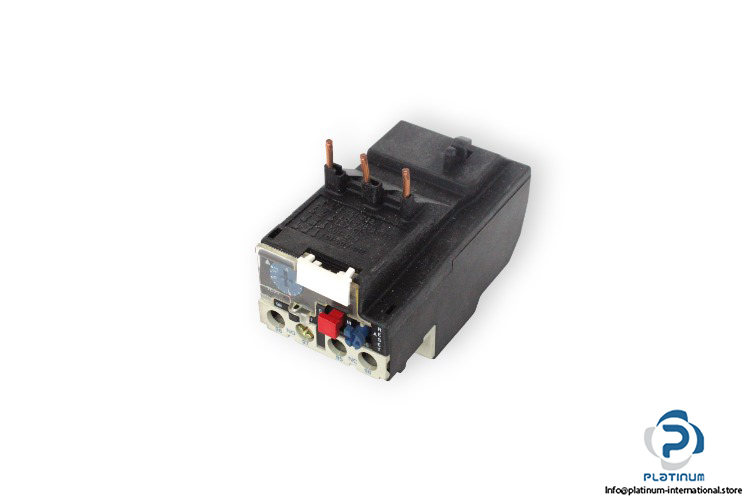

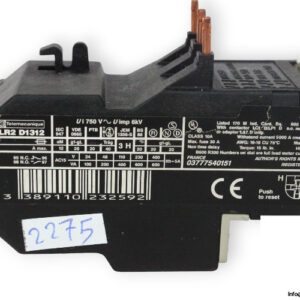

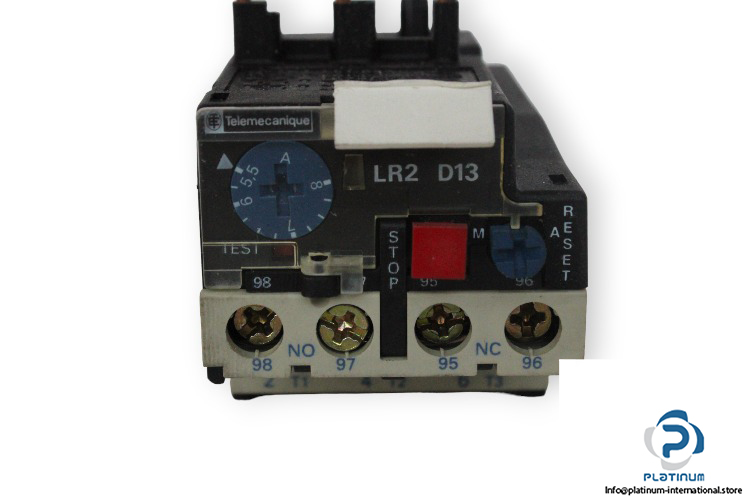

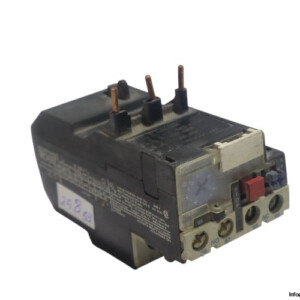

TELEMECANIQUE LR2 D1312 THERMAL OVERLOAD RELAY

The TELEMECANIQUE LR2D1312 Thermal Overload Relay is engineered to provide dependable protection for motors and electrical systems. With precise adjustable current settings and a compact 3-pole design, it delivers reliable operation across a wide temperature and voltage range, making it ideal for industrial applications.

Manufacturer: TELEMECANIQUE

Type: Thermal Overload Relay

Model: LR2 D1312

Part No.: 051997

Technical Information

Short Name: LRD

Rated Operational Voltage: 3-Phase 690 V AC

Rated Thermal Current: 5 A

Rated Insulation Voltage: 750 V AC

Frequency: 50 / 60 Hz

Sitting Range: 5.5 / 8 A

Rated Impulse Voltage (Uimp): 6 kV

Number of Poles: 3-Pole

Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)

Protection Class: IP2X

Ambient Temperature: -20 / 60 °C

Dimensions: 100 x 75 x 121 mm
