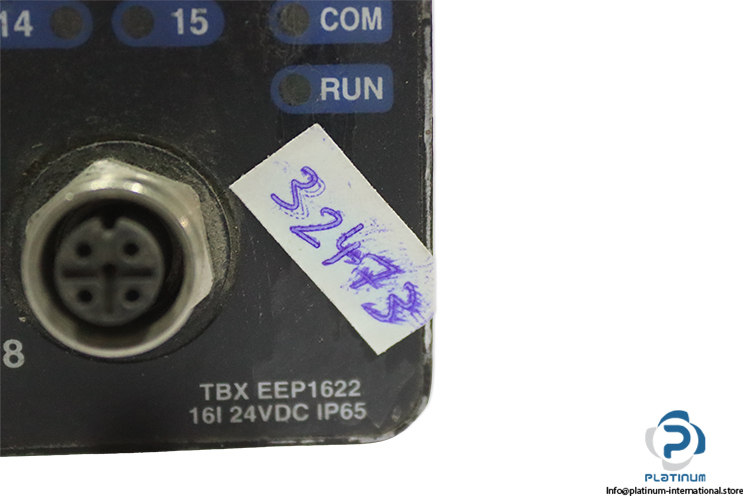

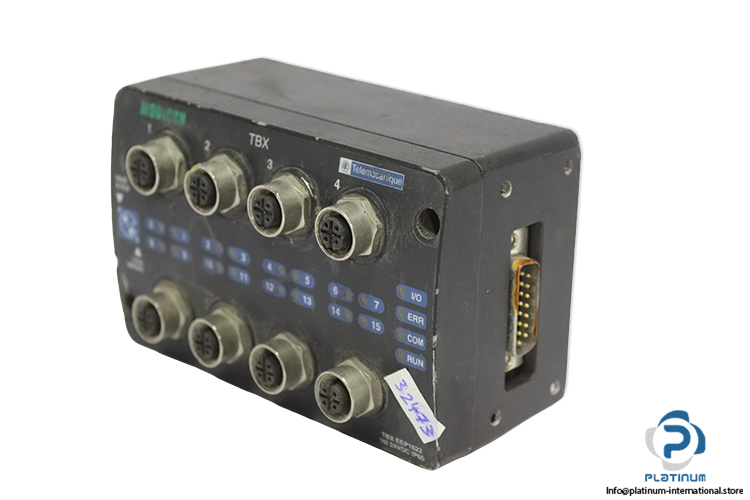

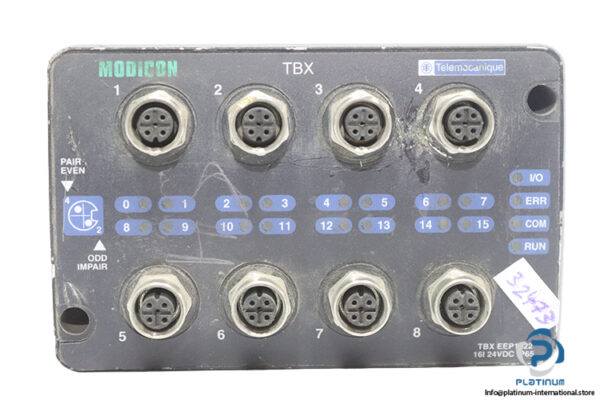

Telemecanique TBXEEP1622 Discrete Input Module

A high-performance industrial discrete input module designed for reliable signal acquisition in automation systems, fully compatible with the Modicon Premium platform and Fipio communication networks. Ideal for industrial environments requiring fast response, robust protection, and consistent 24 V DC input monitoring. Manufacturer: Telemecanique
Type: Discrete Input Module
Model: TBXEEP1622

Technical Information

• Range of Product: Modicon Premium Automation Platform
• Product Type: TBX Discrete Input Module
• Communication Network: Fipio Bus
• Number of Inputs: 16
• Input Type: Current Sink, IEC 1131 Type 2
• Discrete Input Voltage: 24 V DC
• Discrete Input Current: 7 mA
• Sensor Power Supply: 19.2 / 30 V
• Voltage State 1 Guaranteed: ‰¥ 11 V
• Current State 1 Guaranteed: ‰¥ 6 mA at 11 V
• Voltage State 0 Guaranteed: < 5 V
• Current State 0 Guaranteed: ‰¤ 1.4 mA
• Input Impedance: 3400 Ω
• Discrete Logic: Positive
• Response Time: 5“11 ms (0†’1), 5“13 ms (1†’0)
• Reverse Polarity Protection: Series Diode
• Power Dissipation: 2.7 W at 24 V
• Maximum Line Resistance: 100 Ω (2-wire sensor), 500 Ω (volt-free contact)
• IP Degree of Protection: IP65
• Dielectric Strength: 1500 V for 60 s (50/60 Hz)
• Operating Temperature: 5 / 60 °C
