Manufacturer: TELEMECANIQUE

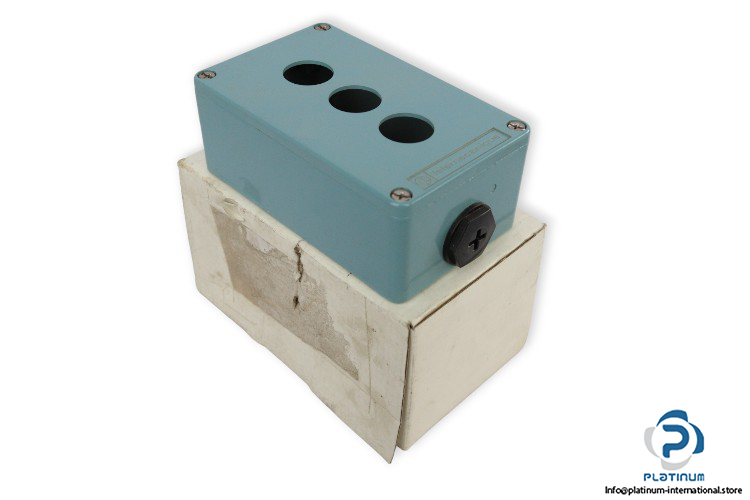

Type: Control Station Enclosure
Model: XAP M2203
Part No: 031276
Range of Product: Harmony XAP
Device Short Name: XAPM

Product Destination: For Ø 22 mm control and signaling units
Product Front Plate Size: 80 x 130 mm
Number of Cut-Out: 3 cut-outs
Color of Base of Enclosure: Blue
Color of Cover: Blue
Material: Zinc alloy
Cable Entry: 1 hole with blanking plug for cable gland 0.55 in (14 mm), 1 hole without blanking plug for cable gland 0.55 in (14 mm)
Device Mounting: Flush
Degree of Protection: IP 65, IP 69
Ambient Air Temperature for Operation: -40 … 70 °C
