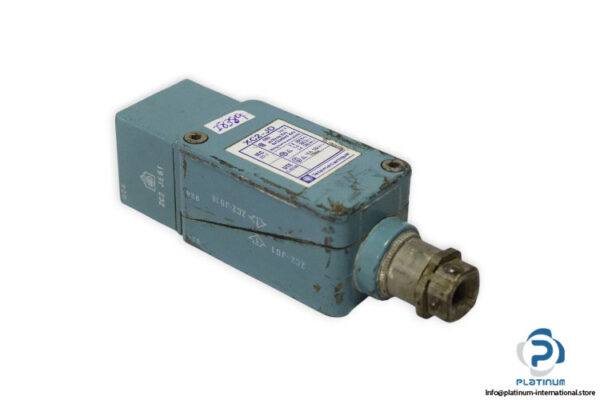

TELEMECANIQUE XC2JD LIMIT SWITCH

The Telemecanique XC2-JD is a high-performance industrial limit switch engineered for precision and durability. Built with a rugged metal head and pin-plunger actuator, it ensures reliable operation in demanding environments while providing excellent protection and safety.

Manufacturer: Telemecanique
Type: Limit Switch
Model: XC2-JD

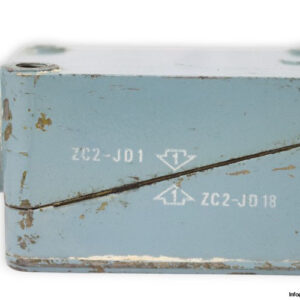

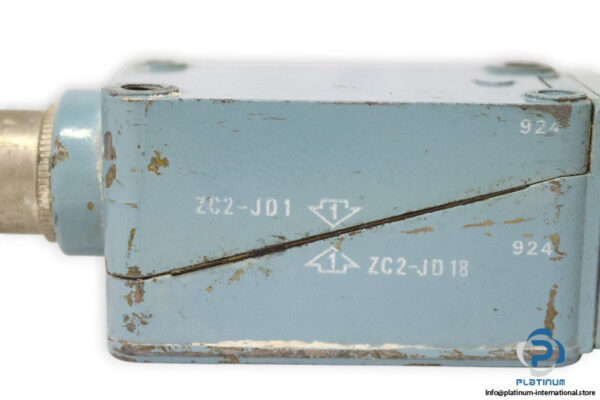

Body Model: ZC2-JD1 / ZC2-JD18

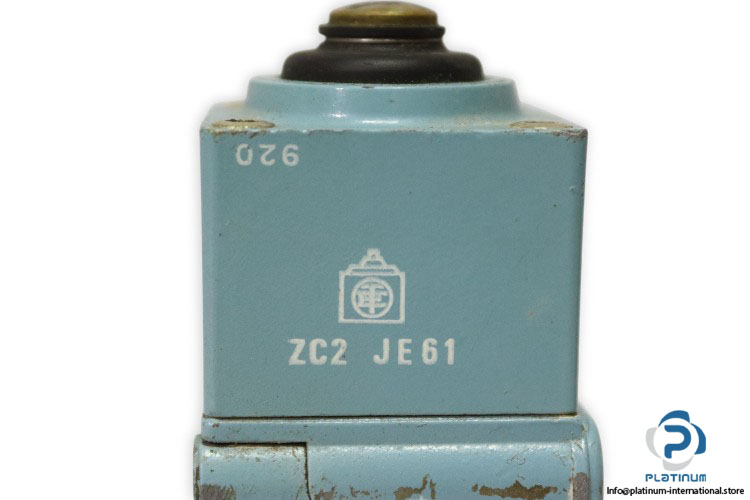

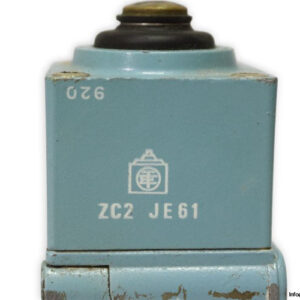

Head Model: ZC2-JE61
Short Name: XC2

Technical Information

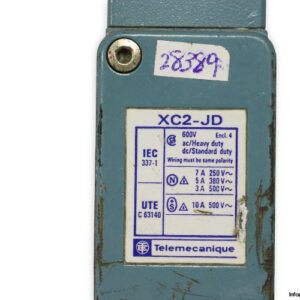

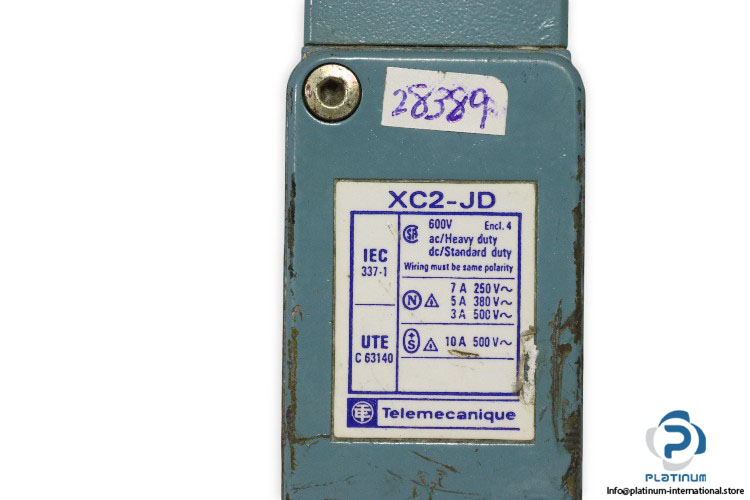

• Rated Operational Voltage: 250 / 500 V AC
• Rated Operational Current: 3 / 5 / 7 A
• Rated Impulse Voltage (Uimp): 6 kV
• Contact: 2 Normally Closed (NC)
• Contact Rating: 500 V AC, 10 A
• Actuator Type: Pin-Plunger
• Head Material: Metal
• Protection Class: IP66
• Operating Temperature: -25 / 70 °C
• Dimensions: 133 x 40 x 57 mm
