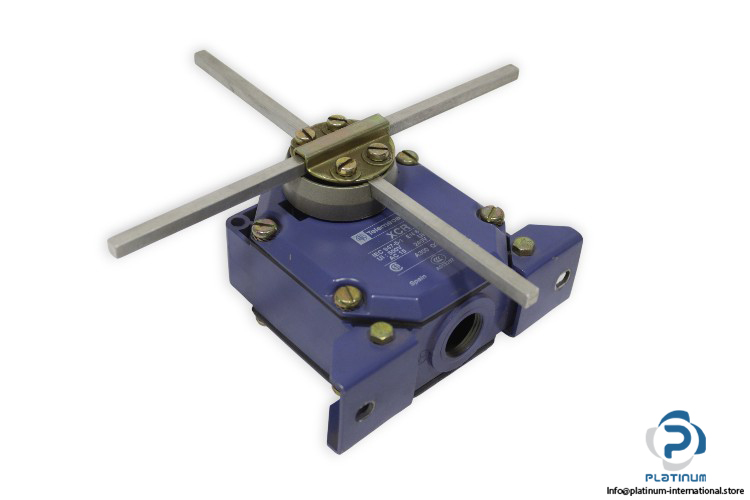

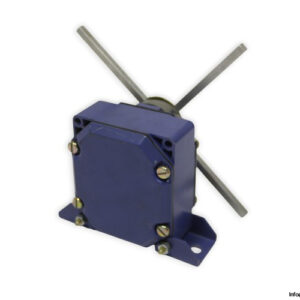

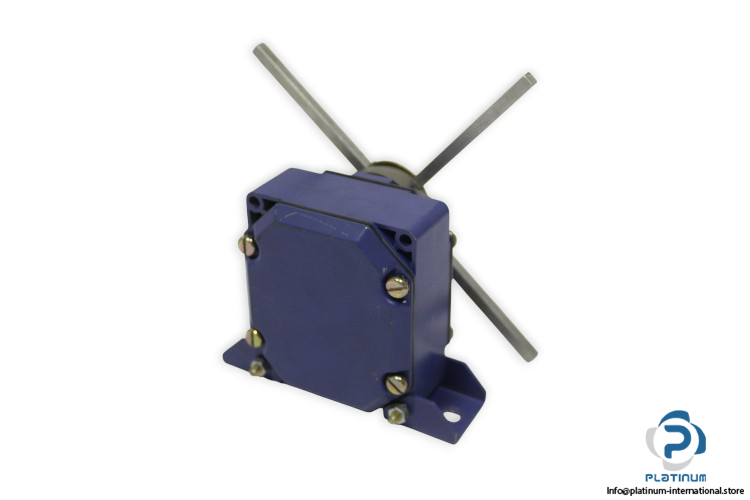

TELEMECANIQUE XCR E18 LIMIT SWITCH

The Telemecanique XCR E18 is a robust limit switch designed for demanding industrial environments. With snap action contact operation and high electrical ratings, it ensures reliable performance for mechanical control systems in automation and safety applications.

Manufacturer: Telemecanique
Type: Limit Switch

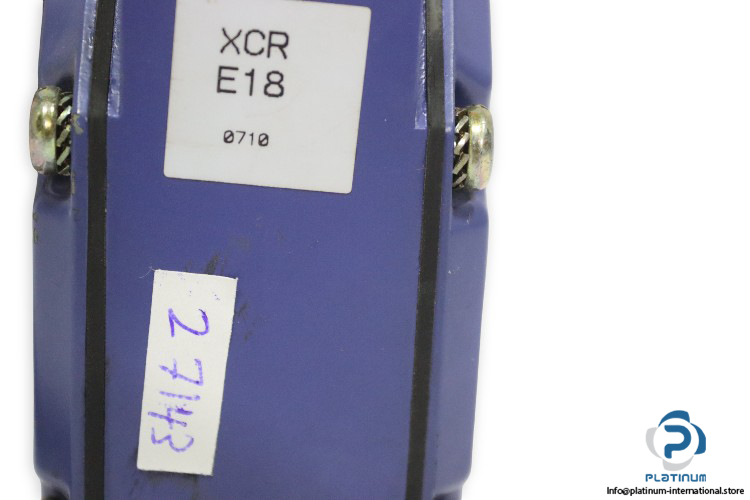

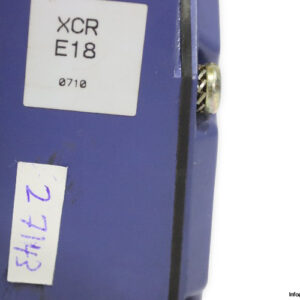

Model: XCR E18

Technical Information

• Output Configuration: 2 x (1 NC + 1 NO)
• Contact Operation: Snap Action
• Actuator Type: Rods Lever
• Body Material: Zinc Alloy
• Maximum Displacement Angle: 90°, -90°

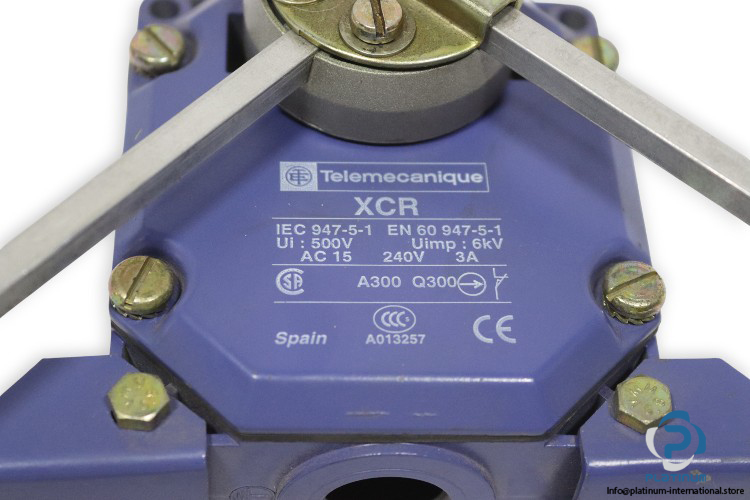

• Rated Voltage: 500 V
• Switching Voltage Max: 240 V
• Contact Current Max: 3 A
• Connection: Cable Entry
• Protection Class: IP65
• Ambient Operating Temperature: -25 / 70 °C
• Dimensions: 85 x 95 x 75 mm
