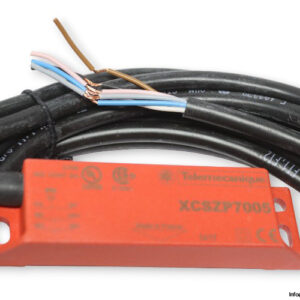

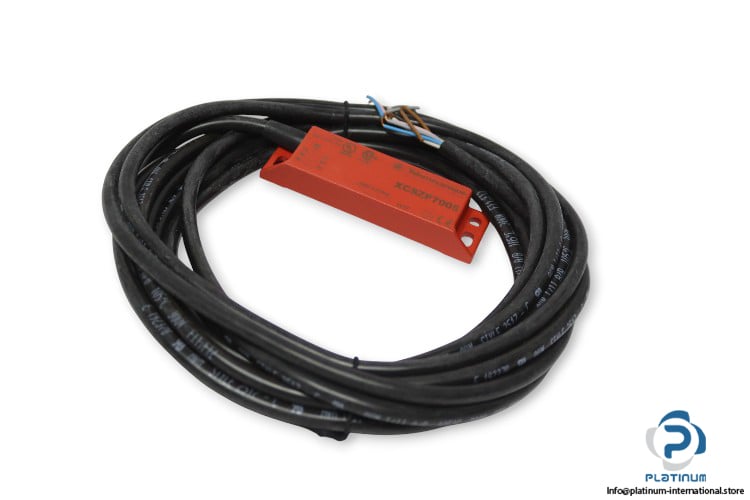

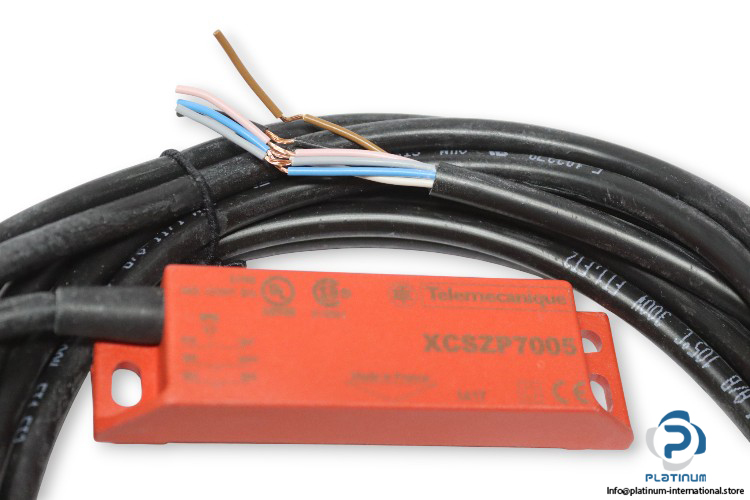

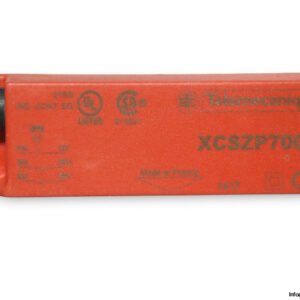

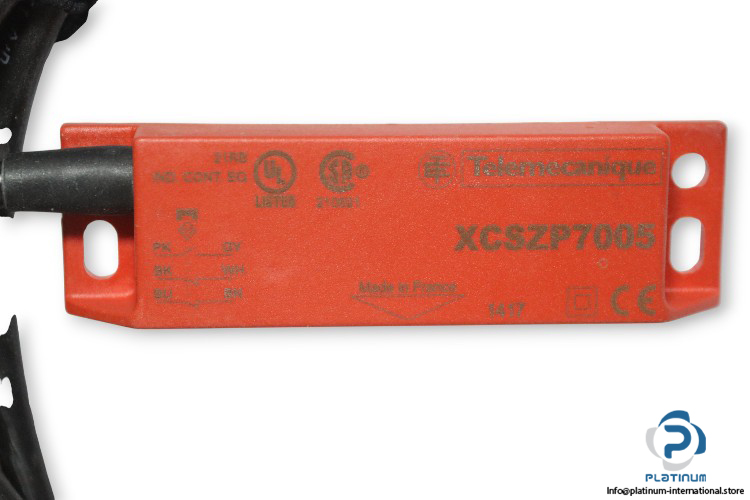

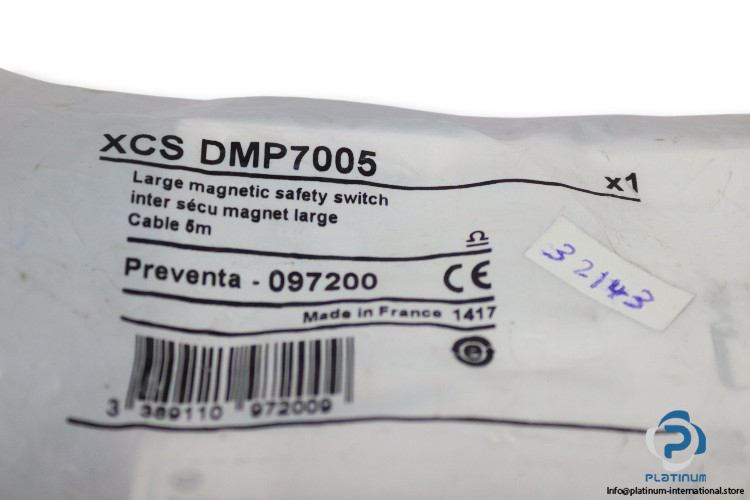

Telemecanique Schneider XCSDMP7005 Safety Switch
The Telemecanique Schneider XCSDMP7005 is a coded magnetic safety switch designed for reliable machine guarding and position monitoring. It ensures high-level protection with precise actuation and durable construction suitable for industrial safety applications.
Manufacturer: Telemecanique Schneider
Type: Safety Switch
Model: XCSDMP7005
Coded Magnetic Switch: XCS-ZP7005
Range of Product: XCS
Component Name: XCSDMP

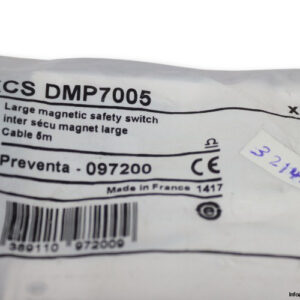

Serial Number: 3 389110 972009
Code: 097200
Technical Information
- Design: Rectangular, standard
- Operating Voltage: 24 V DC
- Operating Current: 100 mA
- Switching Frequency: 150 Hz
- Contacts Type and Composition: 2 NC plus 1 NO
- Contact Operation: 1 NC staggered

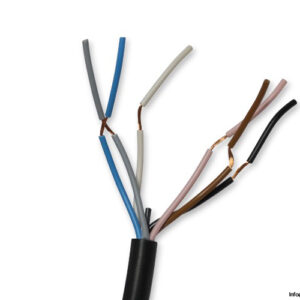

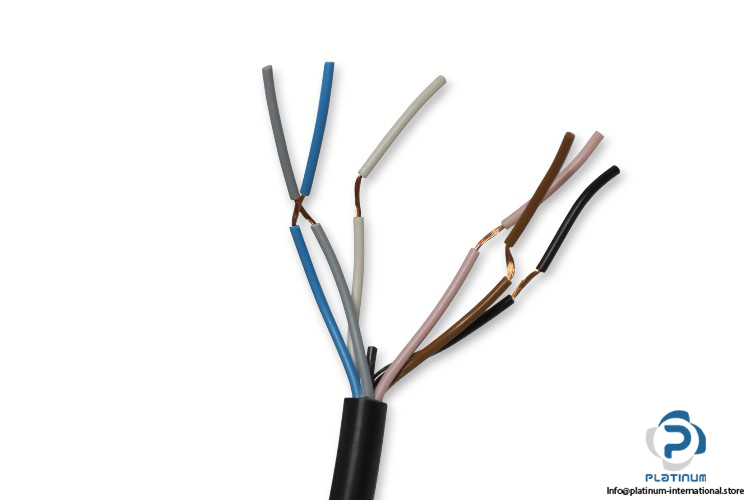

- Electrical Connection: Pre-cabled 5 meters
- Enclosure Rating: IP66
- Ambient Operating Temperature: minus 25 to 85 degree Celsius
- Dimensions: 88 x 25 x 13 millimeters
- Housing Material: Plastic
