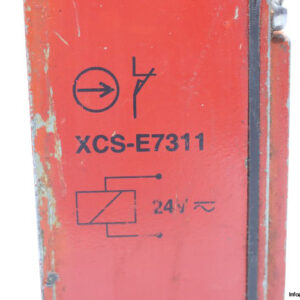

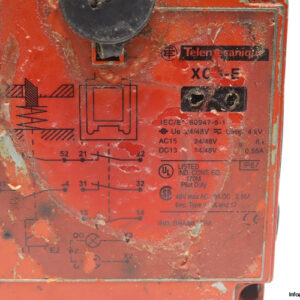

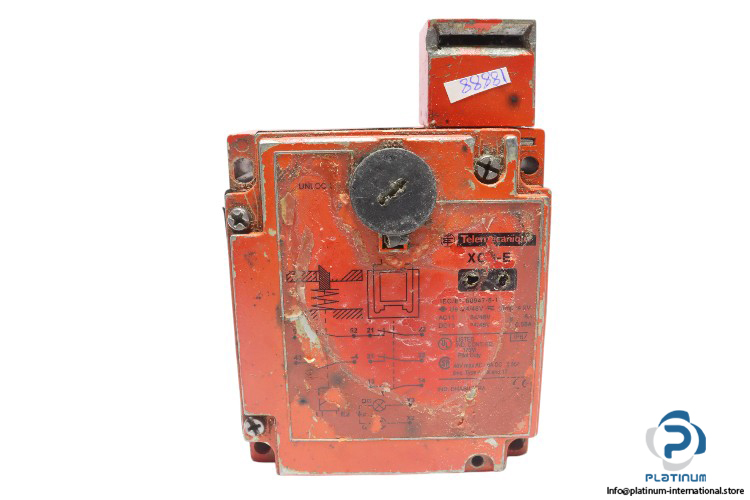

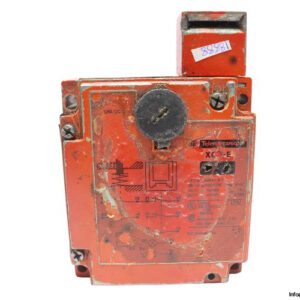

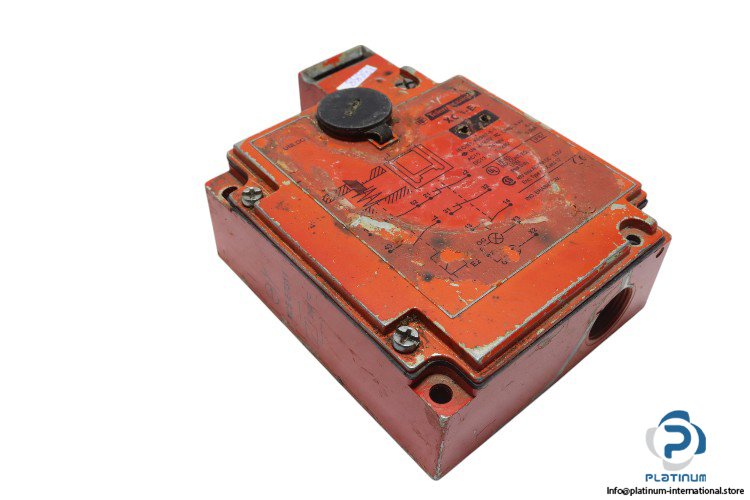

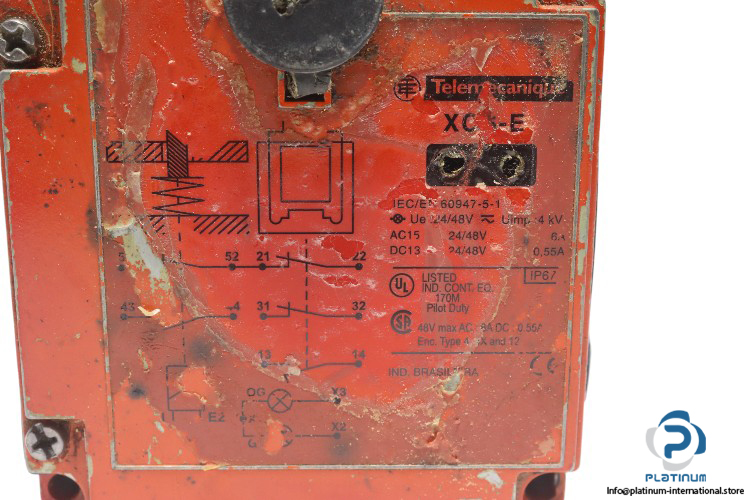

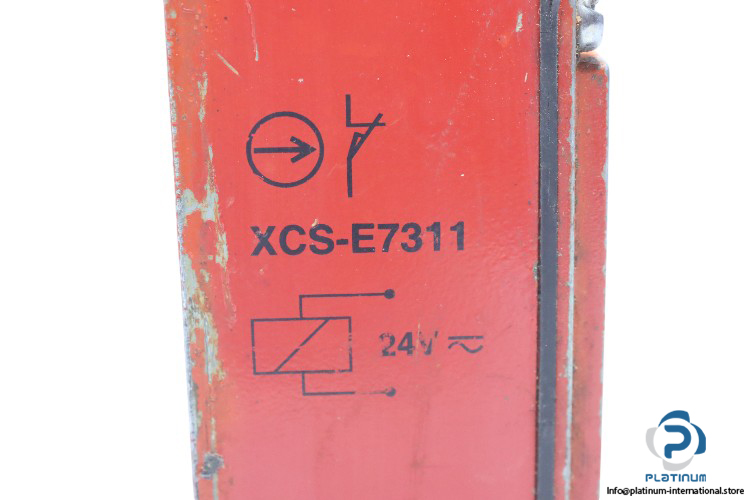

Telemecanique XCSE7311 Safety Switch
The **Telemecanique XCSE7311 Safety Switch** is designed for industrial safety applications, offering **24/48 V AC/DC rated voltage** and a **rated impulse withstand voltage** of **4 kV**. With **2 NC** and **1 NO contacts**, it supports **slow-break, break-before-make contact operation**. This safety switch is ideal for high-demand environments with **6 A rated operational current** at **24/48 V** and **IP67** protection, making it highly durable and reliable.
- Manufacturer: Telemecanique
- Type: Safety Switch
- Model: XCSE7311
Technical Information
- Rated Voltage: 24/48 V AC/DC
- Supply Frequency: 50/60 Hz
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Conventional Enclosed Thermal Current (Ith): 6 A
- Signaling Circuit Consumption: 7 mA
- Design: Rectangular
- Head Type: Key Operated Turret Head
- Contacts Type and Composition: 2 NC, 1 NO
- Contact Operation: Slow-Break, Break-Before-Make
- Solenoid Contacts Type and Composition: 1 NC + 1 NO (Slow-Break, Simultaneous)
- Rated Operational Current: 6 A at 24/48 V AC15-0.55 A at 24/48 V DC13
- Cable Entry: 2 Entries Tapped for Pg 13.5
- Number of Poles: 3
- Body Material: Zamak
- Head Material: Zamak
- Standard: IEC/EN 60947-5-1
- Degree of Protection: IP67
- Dimensions: 44 x 146 x 98 mm
The **Telemecanique XCSE7311 Safety Switch** ensures safe operation with high durability, offering optimal protection in a variety of industrial safety-critical environments.
