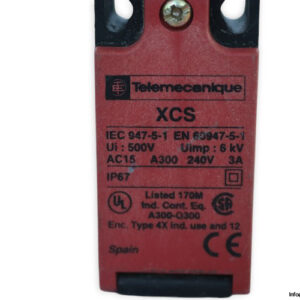

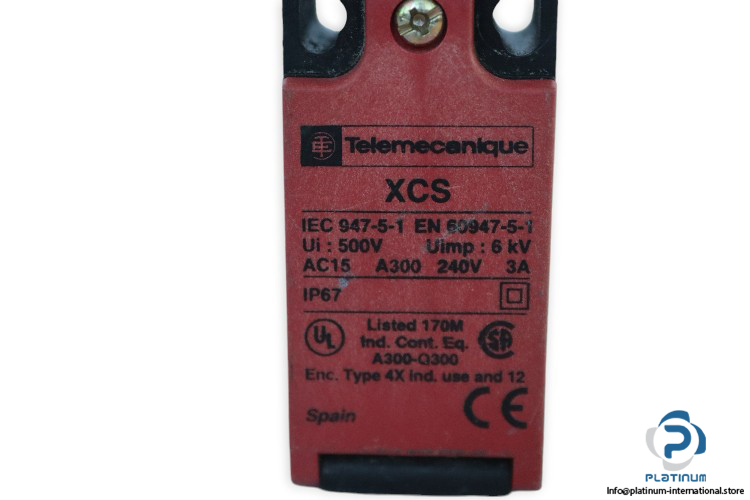

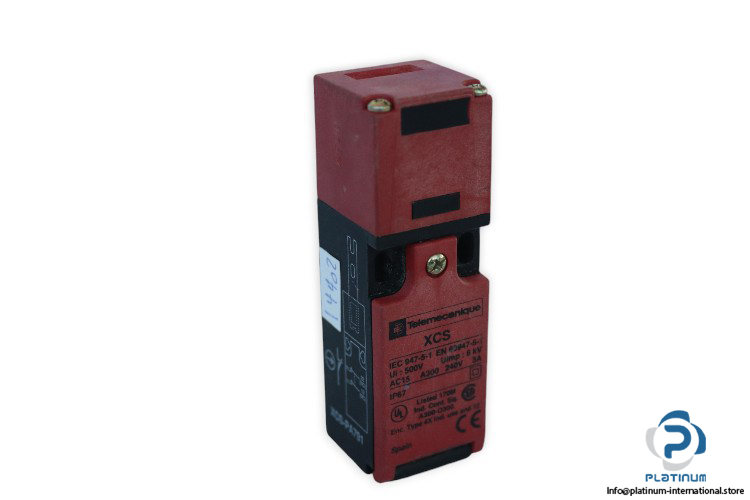

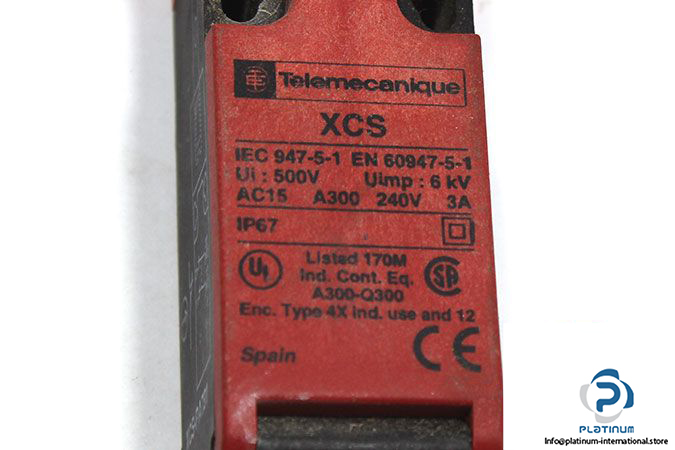

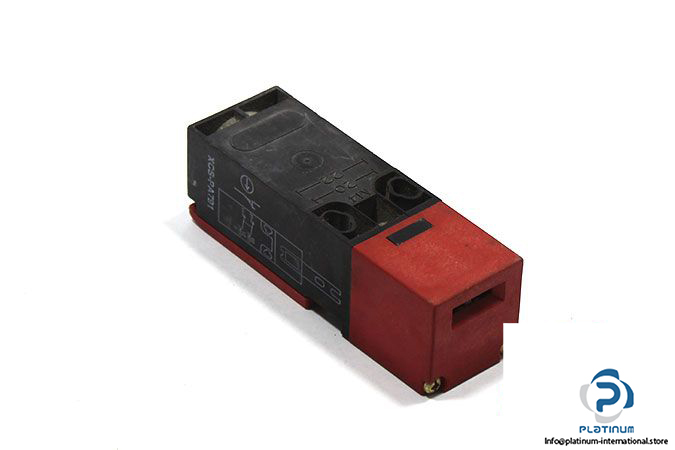

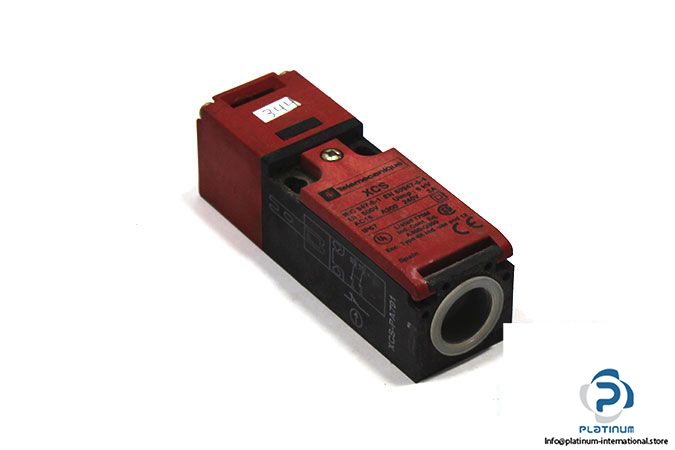

Manufacturer: TELEMECANIQUE
Type: Safety Limit Switch

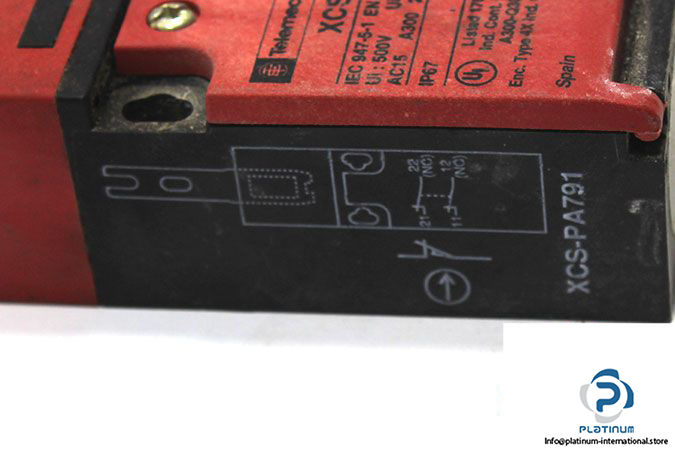

Model: XCSPA791

Rated Operational Voltage: 240 V AC
Rated Operational Current: 3 A
Rated Insulation Voltage (Ui): 500 V
Rated Impulse Voltage (Uimp): 6 kV
Rated Thermal Current: 10 A
Frequency: 50 … 60 Hz

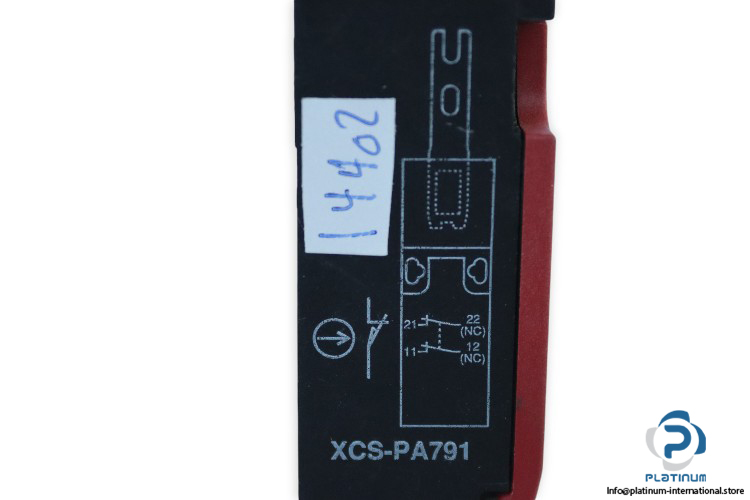

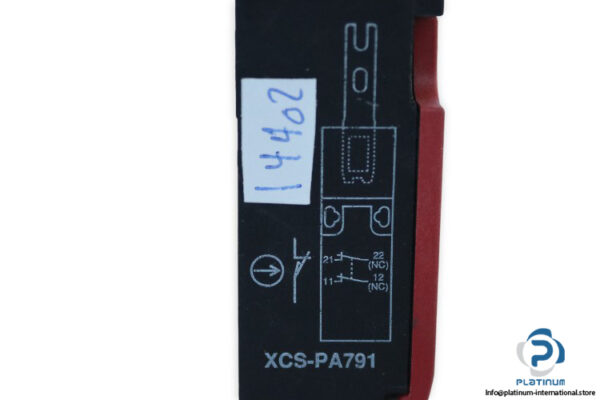

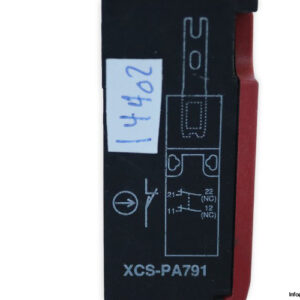

Contact: 2-Pole, 2 Normally Closed (NC)
Contact Operation: Slow-Break, Simultaneous
Electrical Connection: Terminal, Clamping Capacity: 1 x 0.5 … 2 x 1.5 mm² with or without Cable End
Head Type: Key Operated Turret Head
Material: Plastic
Protection Class: IP67
Temperature: -25 … 70 °C
Dimensions: 94 x 30 x 30 mm
