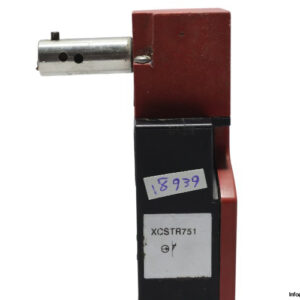

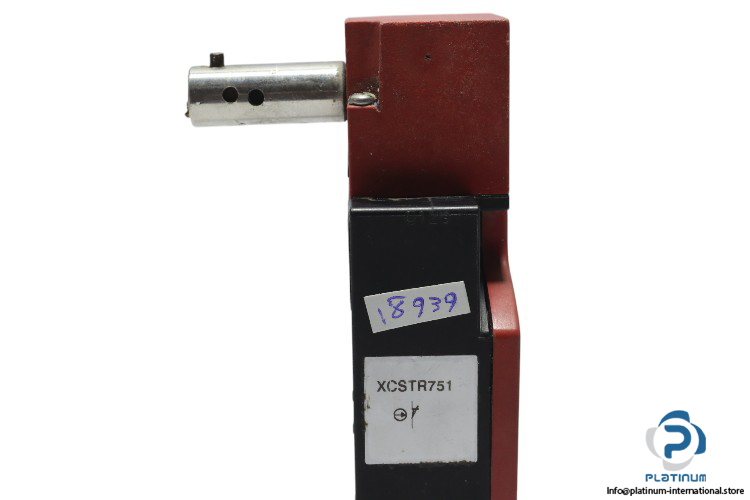

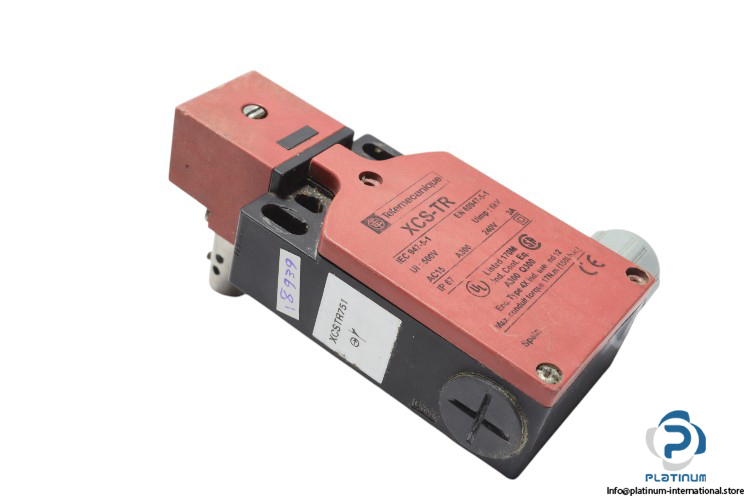

Telemecanique XCSTR751 Safety Limit Switch
The Telemecanique XCSTR751 Safety Limit Switch is designed to provide precise and reliable position sensing in safety-critical applications. With a turret head rotary axis design, it offers robust performance and dependable operation in a wide range of industrial environments. The switch features a conventional enclosed thermal current (Ithe) of 6 A, making it ideal for circuits that require high power handling and safety functions.
With a rated insulation voltage (Ui) of 500 V and a rated impulse withstand voltage (Uimp) of 6 kV, this safety limit switch ensures durability and resistance to electrical surges. The switch includes 2 NC (Normally Closed) contacts and 1 NO (Normally Open) contact, providing flexible control and integration options for safety circuits. The contacts operate with a slow-break, break-before-make mechanism, ensuring smooth and reliable operation under load conditions.
The XCSTR751 is equipped with a terminal electrical connection for secure and easy wiring, and the switch is housed in a durable plastic material for long-lasting protection. It is rated IP67, ensuring protection against dust and water ingress, making it suitable for use in harsh environmental conditions. This safety limit switch operates in an ambient temperature range of -25°C to 70°C, ensuring reliable performance in both cold and warm industrial settings.
Manufacturer: Telemecanique
Type: Safety Limit Switch
Model: XCSTR751

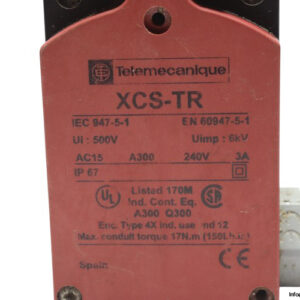

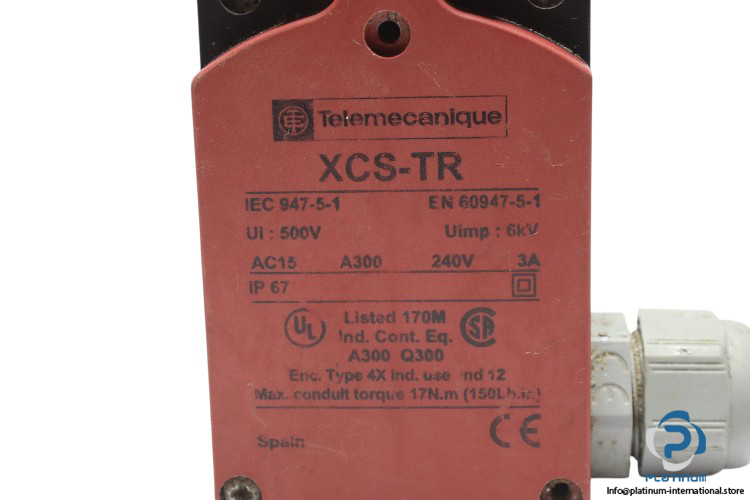

Part Number: XCS-TR
Technical Information:
- Range of Product: Telemecanique Safety switches XCS
- Head Type: Turret head rotary axis
- Conventional Enclosed Thermal Current (Ithe): 6 A
- Rated Insulation Voltage (Ui): 500 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Contacts Type and Composition: 2 NC + 1 NO
- Contact Operation: Slow-break, break before make
- Electrical Connection: Terminal
- Material: Plastic
- Number of Poles: 3
- Protection Class: IP67
- Ambient Temperature Operation: -25 … 70 °C
- Dimensions: 117 x 52 x 60 mm
The Telemecanique XCSTR751 Safety Limit Switch is designed for reliable and accurate position sensing, ensuring safety in industrial applications that demand high reliability and protection against environmental factors.
