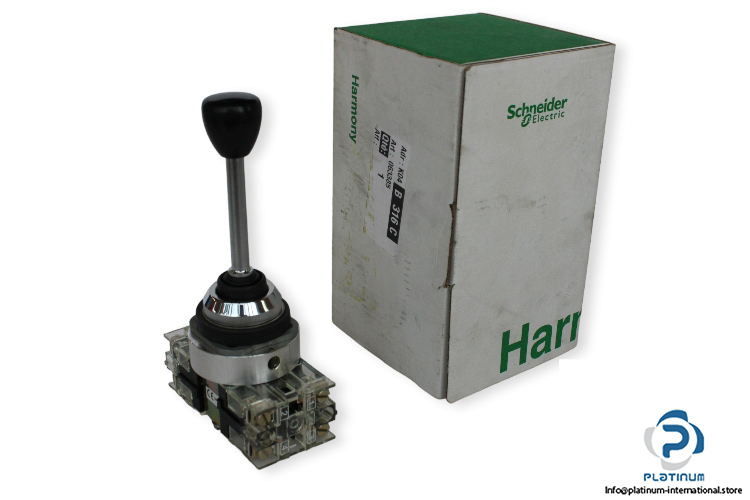

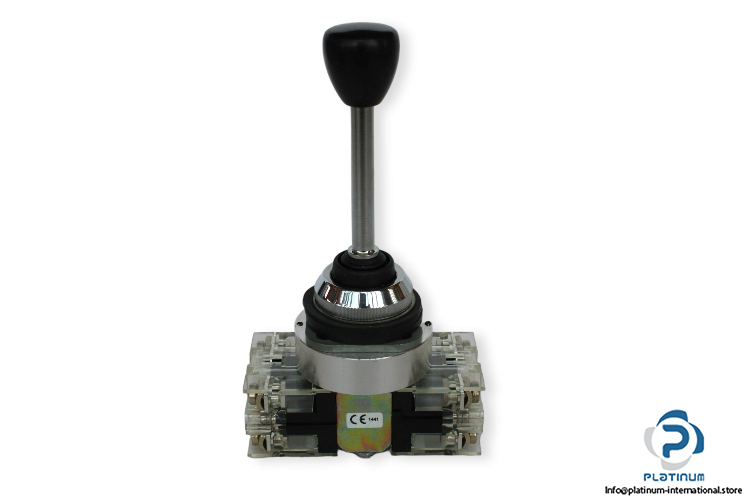

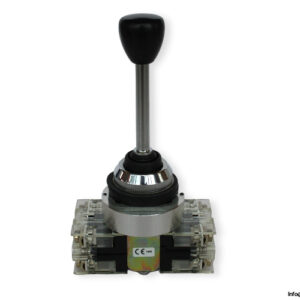

Manufacturer: Telemecanique
Type: Complete joystick controller

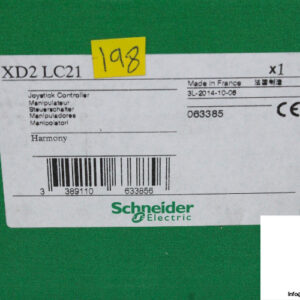

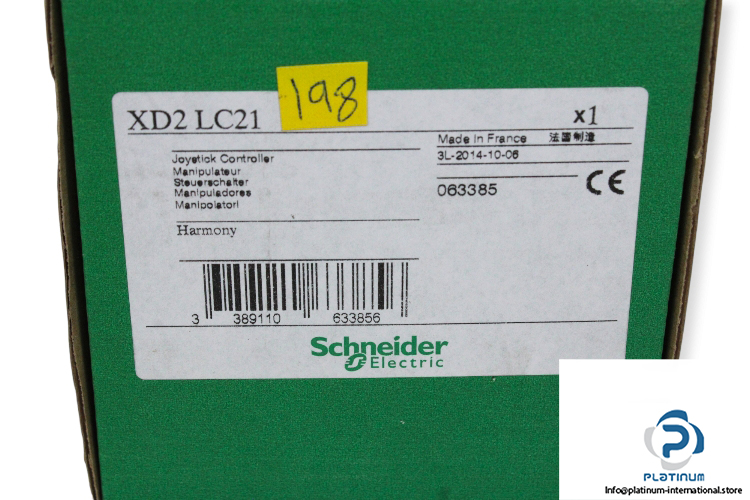

Model: XD2 LC21
Order No.: 063385
Device short name: XD2

Diameter: 30 mm
Operator position information: All positions
Notch per direction: 1
Operator direction information: 2 directions
Contacts type and composition: 2 NC for time delayed
Bezel Material: Chromium plated metal
Connections – terminals: Captive screw clamp terminals
Fixing center: 60 x 100 mm
Return: To 0 position
Height: 156 mm
Depth: 85 mm
Standard: IEC 947-5-1, EN 60947-5-1
Ambient air temperature for operation: -25 … 70 °C
