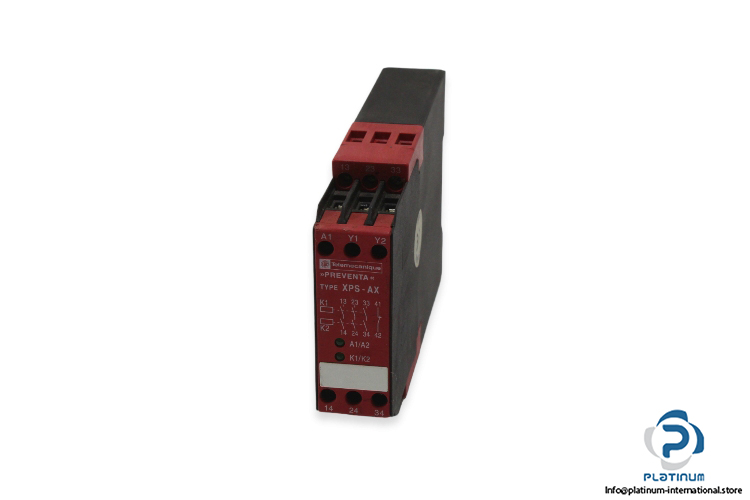

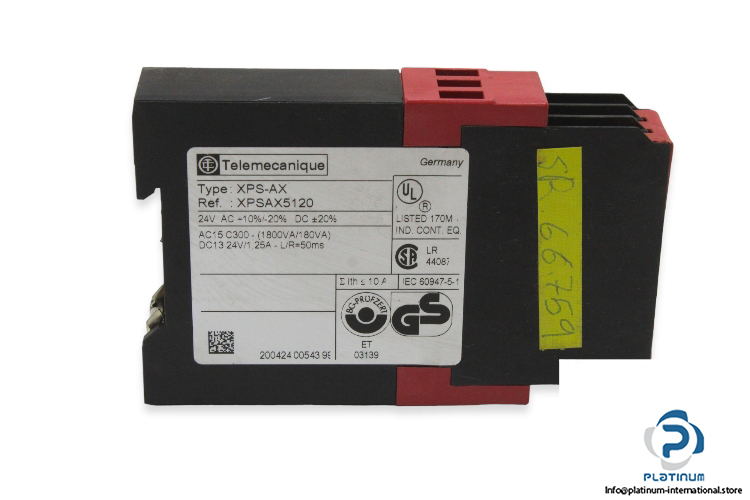

Manufacturer: Telemecanique

Type: Safety Module for Monitoring Emergency Stop Circuits

Model: XPS-AX5120

Supply voltage: 24 V (AC +10% / -15%) (DC +20% / – 20%)

Power consumption: ≤ 5 VA

Number of channels: 2 channels

Safety relay outputs: 3 Normally open contacts, 1 Normally closed contact

Maximum switching capacity of outputs:

AC-15-C300: (1800VA/180VA)

DC-13: (24V, 1.25A, L/R=50ms)

Operating Temperature: 10°C … +55°C

Degree of Protection: Terminals IP20, Enclosure IP40
