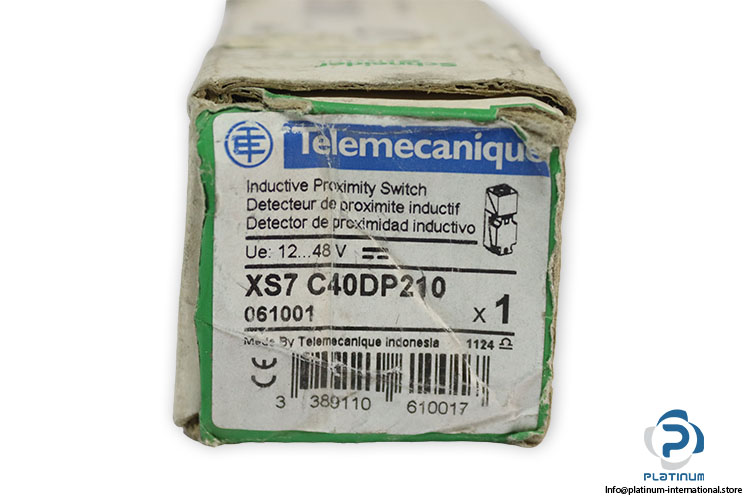

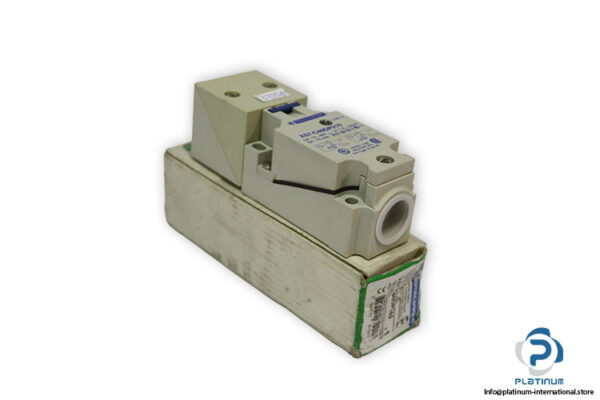

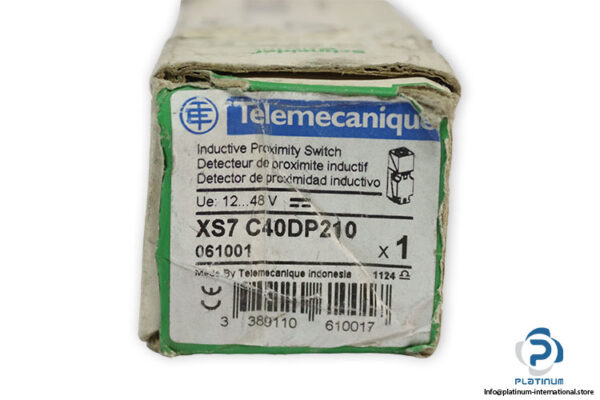

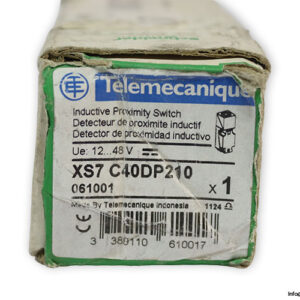

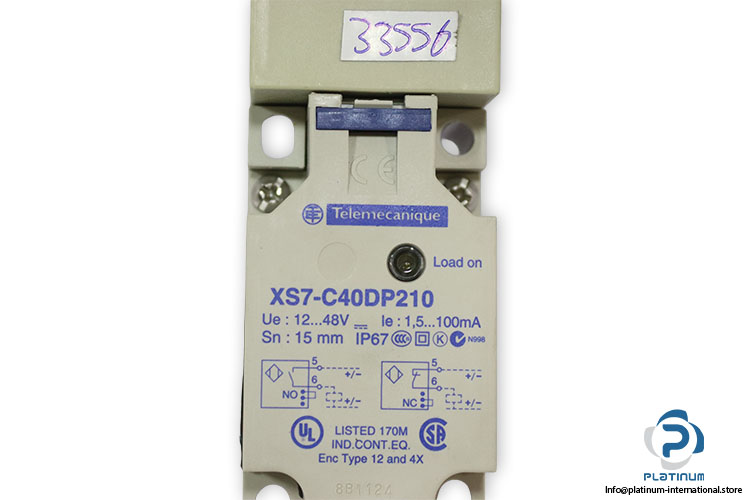

Telemecanique XS7C40DP210 Inductive Sensor

A high-performance inductive proximity sensor designed for accurate metal detection, durable operation, and reliable performance in industrial automation systems. Ideal for machinery, assembly lines, and positioning applications. Manufacturer: Telemecanique
Type: Inductive Sensor
Model: XS7C40DP210
ID No.: 061001
SN: 3389110 610017

Technical Information

• Range of Product: Telemecanique Inductive Proximity Sensors XS
• Sensor Name: XS7
• Sensor Design: Form 40 x 40 x 117
• Size:
• Body Type: Fixed
• Flush Mounting: Flush Mountable
• Material: Plastic
• Enclosure Material: Plastic
• Output Signal Type: Discrete
• Wiring Technique: 2-Wire
• Nominal Sensing Distance [Sn]: 15 mm
• Discrete Output Function: 1 NO or 1 NC Programmable
• Output Circuit Type: DC
• Electrical Connection: Screw-Clamp Terminals 2 x 1.5 mm²
• Rated Supply Voltage [Us]: 12 / 48 V DC (Reverse Polarity Protection)
• Switching Capacity: 1.5 / 100 mA (Overload and Short-Circuit Protection)
• IP Degree of Protection: IP67 (IEC 60529)
• Detection Face: 5-Position Turret Head
• Front Material: Plastic
• Operating Zone: 0 / 12 mm
• Supply Voltage Limits: 10 / 58 V DC
• Maximum Residual Current: 0.5 mA (Open State)
• Switching Frequency: ‰¤1500 Hz
• Maximum Voltage Drop: <4 V
• Height: 40 mm
• Length: 40 mm
• Width: 117 mm
• Ambient Temperature for Operation: -25 / 70 °C
